BOSCH GCL2-15 15m Cross Line Laser with RM1 mount
BOSCH GCL2-15 15m Cross Line Laser with RM1 mount
FREE DELIVERY AVAILABLE*
Hurry, low stock
Why Not Add
VAT (£17.24 ex VAT)
VAT (£2.50 ex VAT)
VAT (£10.10 ex VAT)
VAT (£2.11 ex VAT)

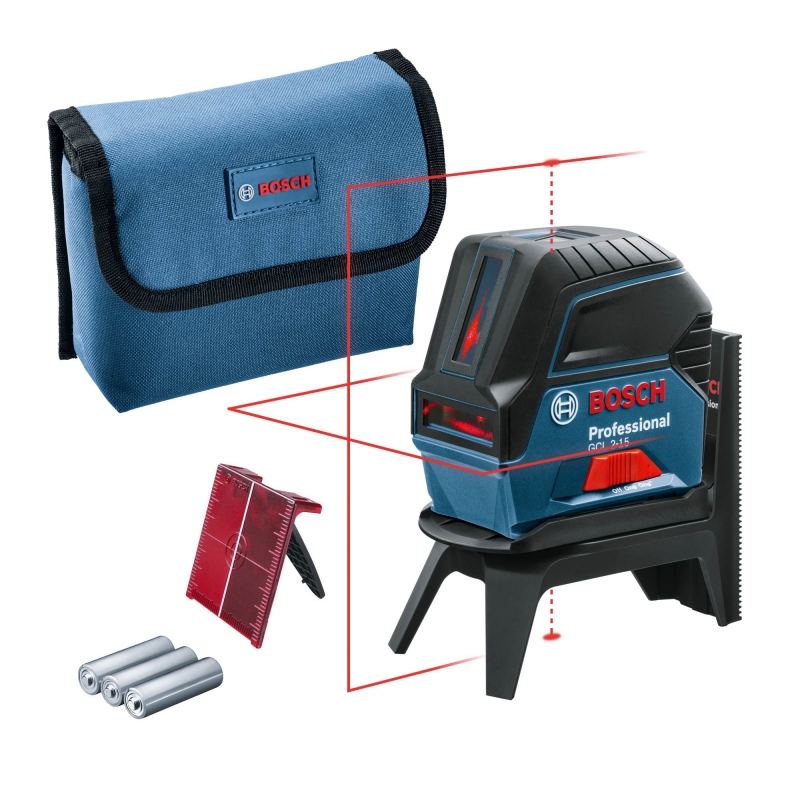

What’s Included
- Bosch GCL 2-15 Cross Line Laser Unit
- RM 1 Rotating Mount
- 3 x 1.5 V LR6 (AA) Batteries
- Laser Target Plate
- Protective Carrying Bag
Product Overview

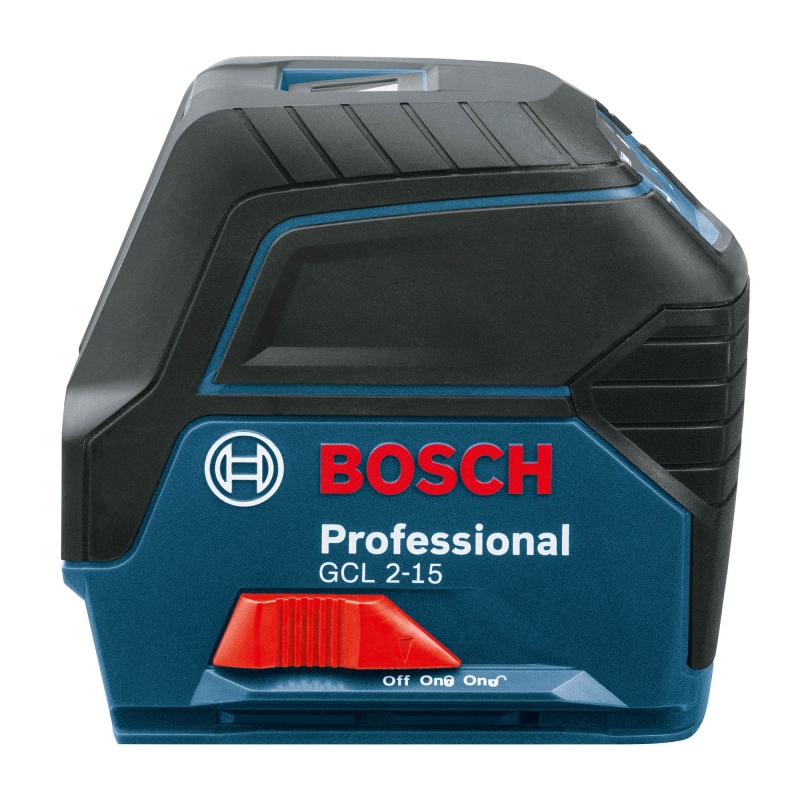

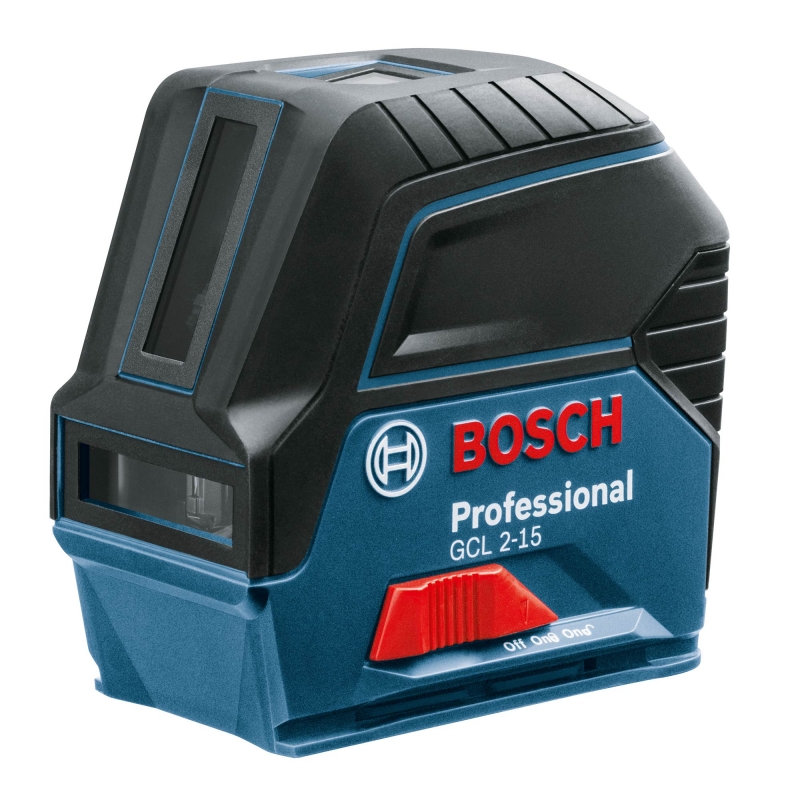

The Bosch 0601066E00 GCL 2-15 Cross Line Laser is a highly versatile and compact levelling tool designed to simplify short-distance alignment tasks. By combining horizontal and vertical laser lines with two centred plumb points, this unit offers exceptional flexibility for a wide variety of installation and layout projects. The inclusion of the RM 1 rotating mount allows users to easily position the laser lines around the plumb points without repositioning the entire tool, ensuring efficiency and precision. Engineered for durability and ease of use, this device is an excellent solution for achieving accurate results in levelling, transfer, and alignment applications.
Part No: 0601066E00(BOSM0601066E00)
Features & Benefits

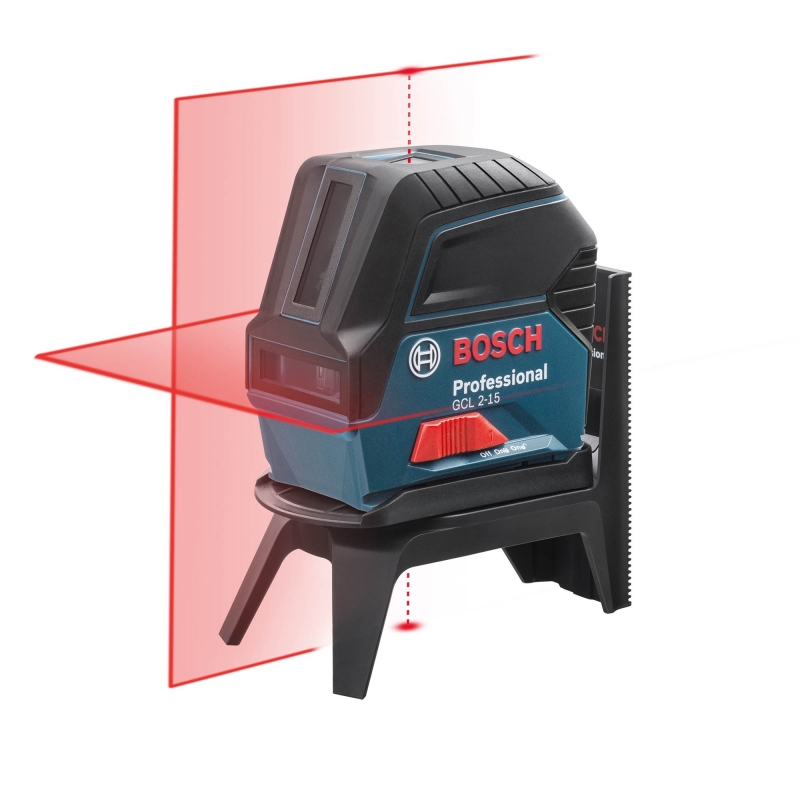

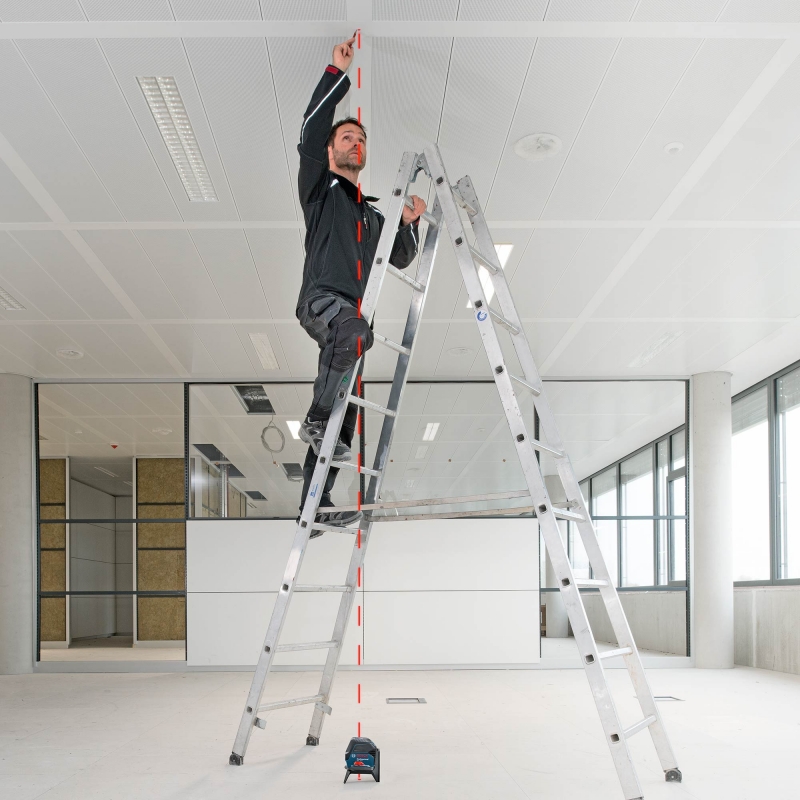

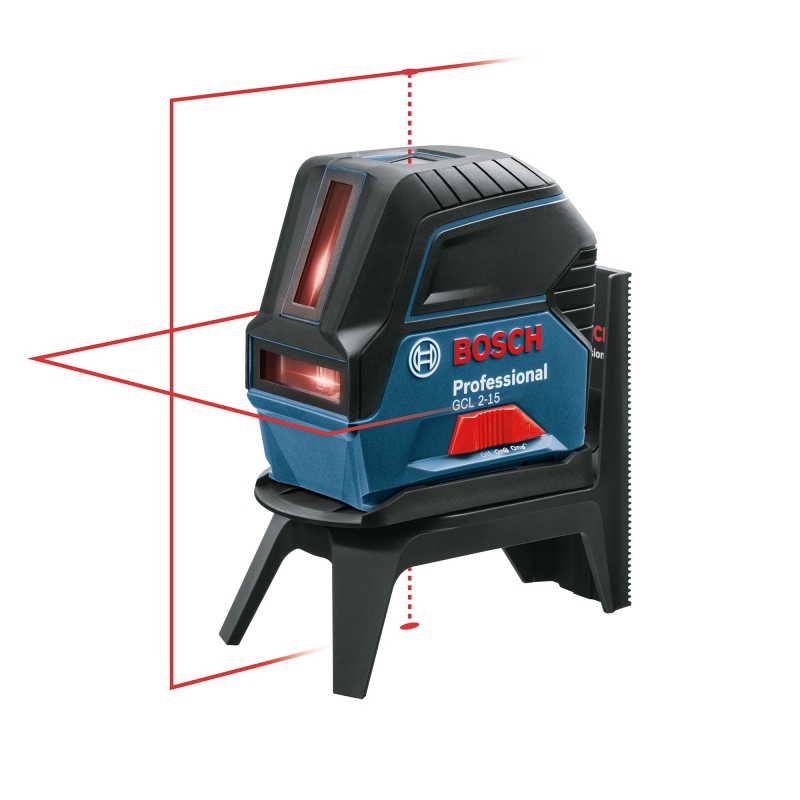

- Dual Functionality: Projects clearly visible horizontal and vertical laser lines alongside two centred plumb points (floor and ceiling), allowing for simultaneous levelling and transfer work.

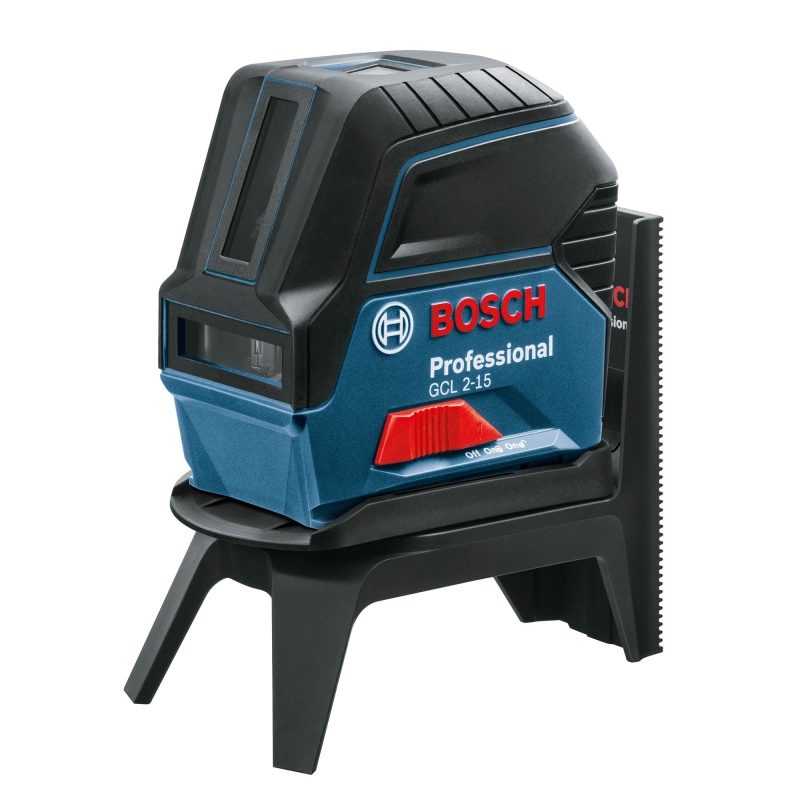

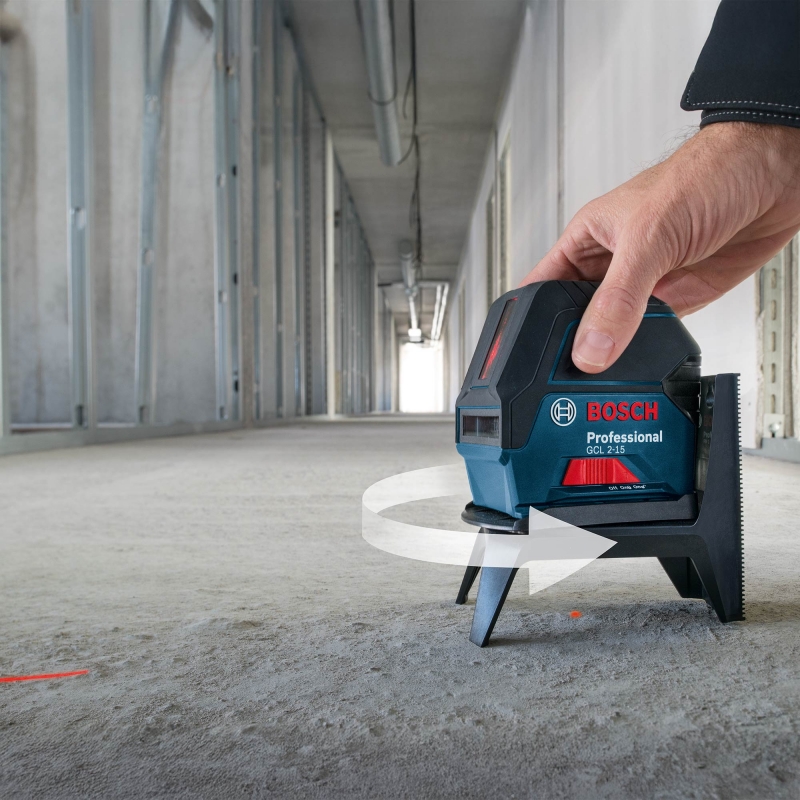

- RM 1 Rotating Mount: The unit comes with a multi-functional mount that enables 360-degree rotation of the laser lines around a fixed plumb point, simplifying complex alignment tasks.
- Robust Construction: Built to withstand challenging site conditions, the device carries an IP54 rating, providing reliable protection against dust ingress and water splashes.
- Pendulum Lock: To prevent damage to the delicate internal mechanisms during transport or storage, the pendulum can be locked securely when the unit is switched off.
- Fast Self-Levelling: The tool automatically compensates for surface irregularities of up to 4° in under four seconds, ensuring lines are always true.
- Flexible Mounting Options: Equipped with both 1/4" and 5/8" tripod threads, the laser is compatible with a wide range of standard tripods and mounting accessories.
- Intuitive Interface: Operation is straightforward with a simple interface that allows independent activation of laser lines and plumb points to suit specific battery-saving needs or application requirements.
- High Accuracy: Delivers precise results with a levelling accuracy of 0.3 mm/m for laser lines, ensuring installations are perfectly aligned.
Technical Specification
- Colour of laser line: red
- Projection: 2 lines / 2 points
- Laser diode: 630 650 nm, < 1mW
- Operating temperature: -10 50 °C
- Storage temperature: -20 70 °C
- Laser class: 2
- Working range, value: 15 m
- Accuracy: 0.3 mm/m
- Plumb point accuracy: 0.7 mm/m
- Working range of laser points, max.: 10 m (top), 10 m (bottom)
- Self-levelling range: 4°
- Levelling time: 4 s
- Dust and splash protection: IP 54
- Power supply: 3 x 1.5 V LR6 (AA)
- Operating time (max.)
- 6 h in cross line and point mode
- 8 h in cross line mode
- 12 h in line and point mode
- 16 h in line mode
- 22 h in point mode
- Tripod thread: 1/4", 5/8"
- Weight, approx.: 0.49 kg
FAQs
Laser Levels are invaluable when you need a straight and level reference point; almost like a virtual chalk line. There are lots of different variations to think about, such as whether you need vertical lines, horizontal or both, what colour the beam should be and whether it will be used indoors or outdoors. This last point is an important one; ‘outdoor’ Laser Levels use a brighter, more powerful laser to ensure visibility in natural light, so are more expensive than their ‘indoor’ counterparts.
A feature that isn’t always available but is worth looking out for, is “self-levelling”. A self-levelling laser corrects itself regardless of any irregularities in the surface the laser has been placed on; this makes them quicker and simpler to use, as well as more accurate when compared to levels which are calibrated using a spirit level bubble.
The most common type of Laser Level now is the Line Level, which does what it says on the box and displays horizontal and vertical lines either together as a cross hair or as separate lines on a ceiling, wall or floor. If choosing a Line Level, think about the working visibility range your level can project, the accuracy of the beam and the number of beams your level can give you.
An alternative to a Line Levels would be a Rotary Level. These rotate 360°, providing a constant horizontal line through a complete circle. There are also Specialist Levels available, such as Inclinometers and Plumb Bobs.
At ToolStore UK, we sell Laser Levels with both red and green beams. But which should you choose? Fundamentally, there are two factors to consider; cost and distance. Green lasers offer greater distance and improved visibility but those advantages come at a price. Therefore, if you need a Laser Level but have a restricted budget, a red laser may be the right choice. However, for many users, visibility is the most important factor and that makes green lasers a clear favourite; they are between 10 and 50 times brighter than red lasers which makes green lasers four more times more visible to the naked eye than red.
