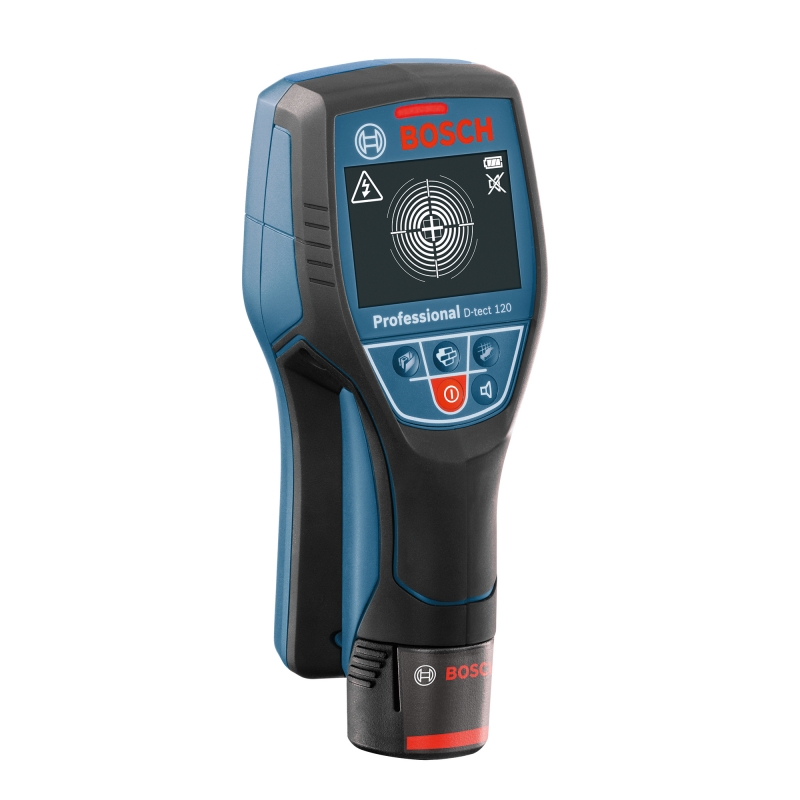

BOSCH DTECT120Li Digi Wall Scanner (12v)
BOSCH DTECT120Li Digi Wall Scanner (12v)
Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
Hurry, low stock

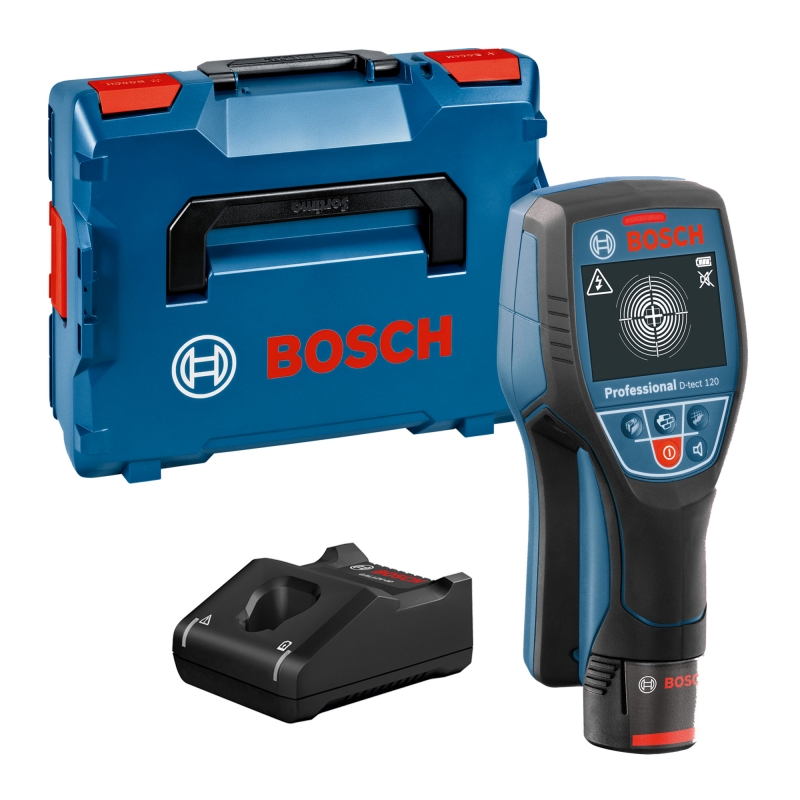

What’s Included
- Bosch D-tect 120 Professional Wallscanner
- 1 x Battery GBA 12V 2.0Ah
- Quick Charger GAL 12V-40 Professional
- L-BOXX 136 System Case
- Quick-start Card
- Voltage: 12v
Product Overview

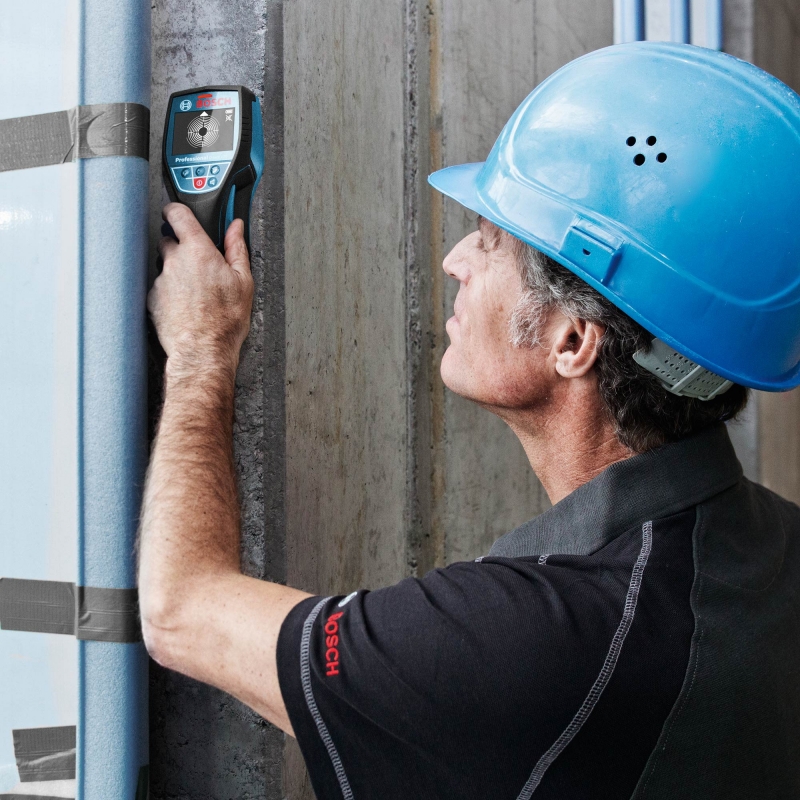

If you have ever held your breath while drilling into a wall, hoping you don't hit a water pipe or a live wire, this is the bit of kit designed to stop that anxiety. The Bosch D-tect 120 isn't just a standard stud finder; its a radar-based wall scanner that takes a lot of the guesswork out of first-fix installs and renovation work. Unlike cheaper detectors that require you to slide them back and forth endlessly to get a reading, this one uses "Spot View" technology, meaning it detects objects the second you place it against the wall. Its solid, reliable, and frankly essential if you want to avoid an expensive plumbing bill.
Part No: 0601081370(BOSM0601081370)
Features & Benefits
- Spot Measurement Technology: Detects objects immediately upon placement on the wall, removing the need for broad scanning movements and making it perfect for confined spaces or uneven surfaces.
- Centre Finder: Provides clear visual guidance to pinpoint the exact centre of the detected object, not just the edge, significantly reducing the risk of drilling errors.
- Dual Power Source: Offers complete flexibility by running on both the Bosch 12V Li-Ion rechargeable battery system and standard AA alkaline batteries (using a battery adapter).
- Three Detection Modes: Simple, self-explanatory buttons allow you to switch instantly between Drywall, Universal, and Concrete modes to optimise accuracy for the specific base material.

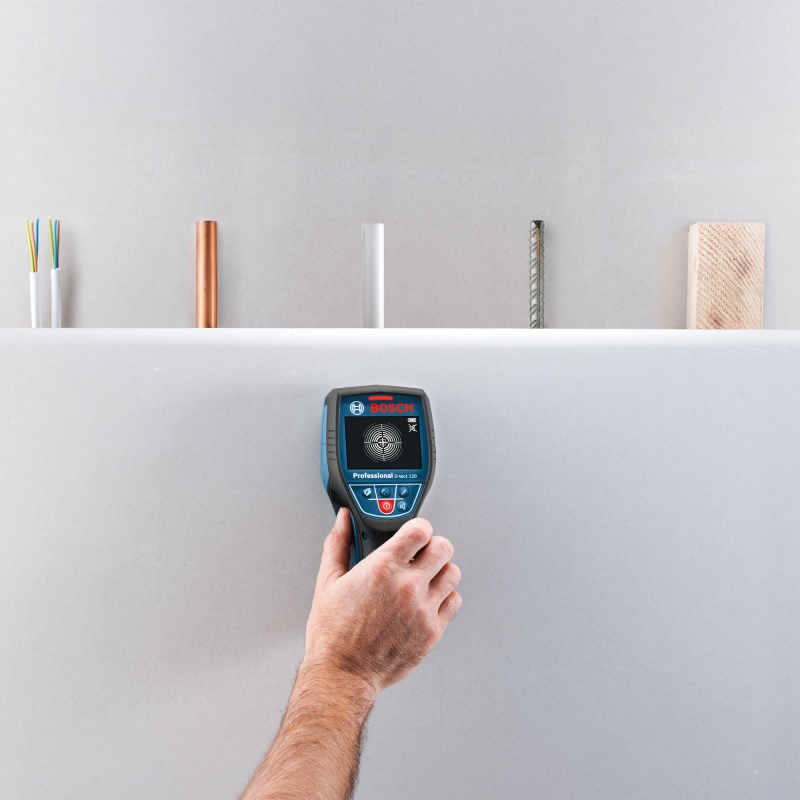

- Material Versatility: Capable of locating water-filled plastic pipes, magnetic metals (e.g., iron), non-magnetic metals (e.g., copper), live cables, and wooden substructures.
- Audio and Visual Alerts: Features a "traffic light" LED system (Green, Amber, Red) combined with an audible signal to indicate the presence of an object clearly and quickly.
- Centre Cross Indicator: When an object is located, the display shows a centre cross, giving you the confidence to mark your drilling point with high precision.
Technical Specification
- Battery voltage: 12.0 V
- Power supply: 12 V Li-ion or 4 x 1.5 V LR6 (AA)
- Bosch Radar Technology: yes
- Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures
- Max. detection depth: 120 mm
- Detection depth, magnetic metal, max.: 120 mm
- Detection depth, non-magnetic metal, max.: 120 mm
- Detection depth, live cables, max.: 60 mm
- Detection depth, wooden substructures, max.: 38 mm
- Accuracy*: 10 mm
- Views: Spot view
- Wall types: Concrete, Drywall, Universal
- Material identification: Live cable
- Automatic deactivation, approx.: 5 min
- Weight, approx.*: 0.5 kg
- Additional function: Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator
FAQs
What should I look for when buying a Detector?
The ToolStore UK product range includes a number of Detectors; these can be vital tools when you’re working out exactly where (and where not!) to work on a wall. So what are the key things to look for?
One important consideration is the Measuring Depth as this determines how far into a wall you can pick up things like live cables, copper wire and steel. You may also want to consider how accurate the device is, as this can affect the results you can achieve.
You might also want to think about the IP Rating of the tool as this indicates the level of protection provided to the Detector from dust and water ingress.
