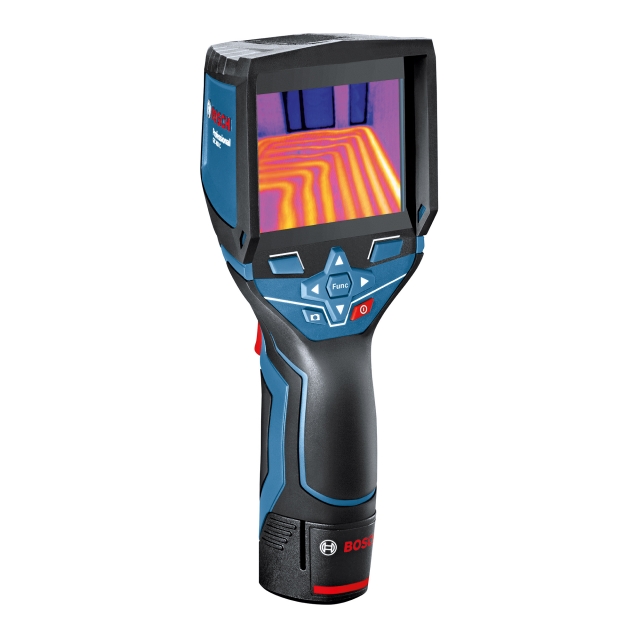

BOSCH GTC400C 12v Thermal Imaging Camera comes with 1x1.5Ah Batteries

BOSCH BOSCH GTC400C 12v Thermal Imaging Camera comes with 1x1.5Ah Batteries

0601083171 Product Overview

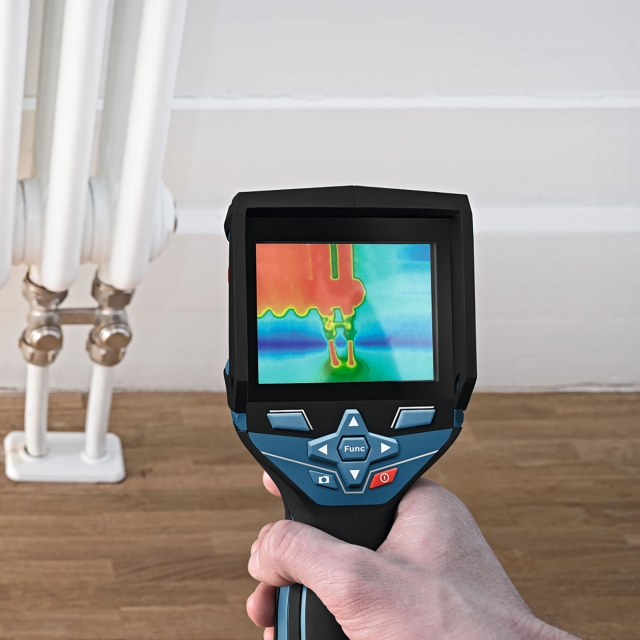

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch Thermal App documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies. It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Part No: 0601083171(BOSM0601083171)

0601083171 Technical Specifications

  • Measurement range: -10°C to +400°C
  • Measuring accuracy of IR: 3.0°C
  • Resolution: 0.1°C
  • Thermal sensitivity (NETD): <50 mK
  • Size of IR sensor: 160x120 px
  • Number of measuring points: 19200
  • Frame buffer (number of images): 500
  • Memory type: Internal memory
  • Dust and splash protection: IP 53
  • Display type: TFT LCD
  • Size of display: 3.5"
  • Operating temperature: -10° -  45°C
  • Storage temperature: -20° - 70°C
  • Working range: 0 m

BOSCH GTC400C 12v Thermal Imaging Camera comes with 1x1.5Ah Batteries

Great news! Buying this product qualifies you for
unavailable Sorry, we are out of stock

0601083171 Key Features

  • Easy location orientation of the measured values due to the built-in camera which generates a visible image with an overlay of the thermal image
  • Easy documentation and fast exchange of data using the Bosch Measuring Master app
  • More flexibility due to Dual Power Source: Can be used with 12 V-LI-ion battery or with standard alkaline batteries

0601083171 What’s Included

  • 1x 12v 2.0Ah Battery
  • Quick Charger
  • L-Boxx 136 Carrying Case
  • Tool Inlay for Case
  • Accessories Inlay for Case
  • Hand Strap
  • Micro USB Cable
  • Number of Batteries Supplied: 1
  • Voltage: 12v
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
What should I look for when buying a Detector?

The ToolStore UK product range includes a number of Detectors; these can be vital tools when you’re working out exactly where (and where not!) to work on a wall. So what are the key things to look for?

One important consideration is the Measuring Depth as this determines how far into a wall you can pick up things like live cables, copper wire and steel. You may also want to consider how accurate the device is, as this can affect the results you can achieve.

You might also want to think about the IP Rating of the tool as this indicates the level of protection provided to the Detector from dust and water ingress.

What should I look for when buying Measuring Tools and Levels?

ToolStore UK offers Laser Levels, Laser Rangefinders and Detectors but, in addition to those tools there are a number of additional Measuring Tools and Levels available for specific tasks or to combine with your existing equipment.

This section of our website includes specialist measuring tools such as Inclinometers and accessories for Laser Levels and Rangefinders. With accessories, compatibility is key; Tripods and Laser Poles tend to work with specific brands and often with particular models. Therefore, check that before you make a purchase, the item you’re considering will be suitable for your Level or Rangefinder.

All of our products come with a standard 1 year manufacturers warranty, however if you would like to discuss extending this warranty, please contact our customer service team on 03330 043777, or email For further warranty information from this specific manufacturer, visit our warranty page.
