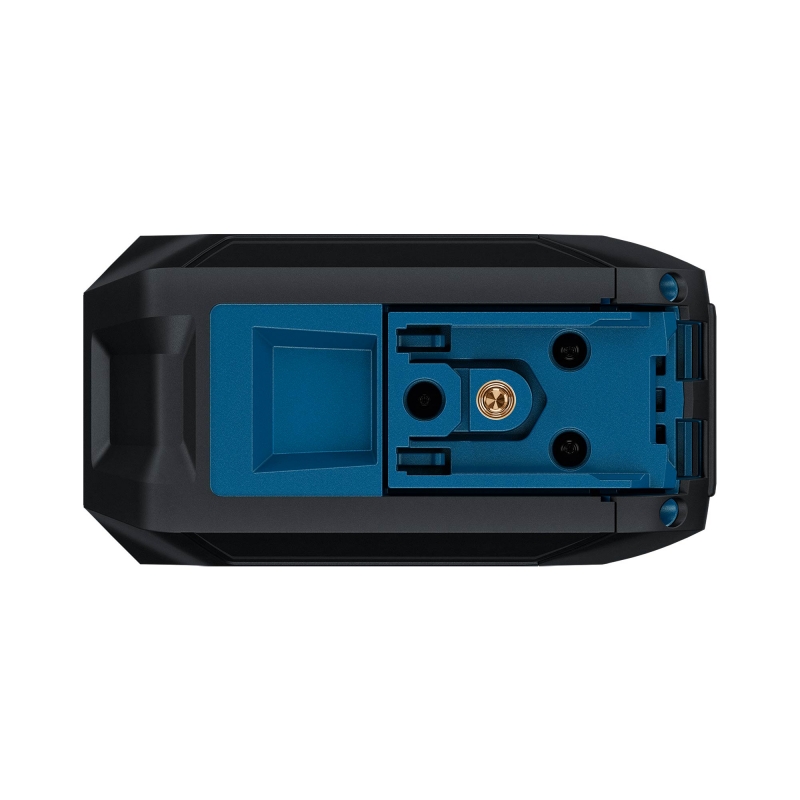

BOSCH GLL20-22G Professional Line Laser with LB10 bracket
BOSCH GLL20-22G Professional Line Laser with LB10 bracket
FREE DELIVERY AVAILABLE*
Hurry, low stock

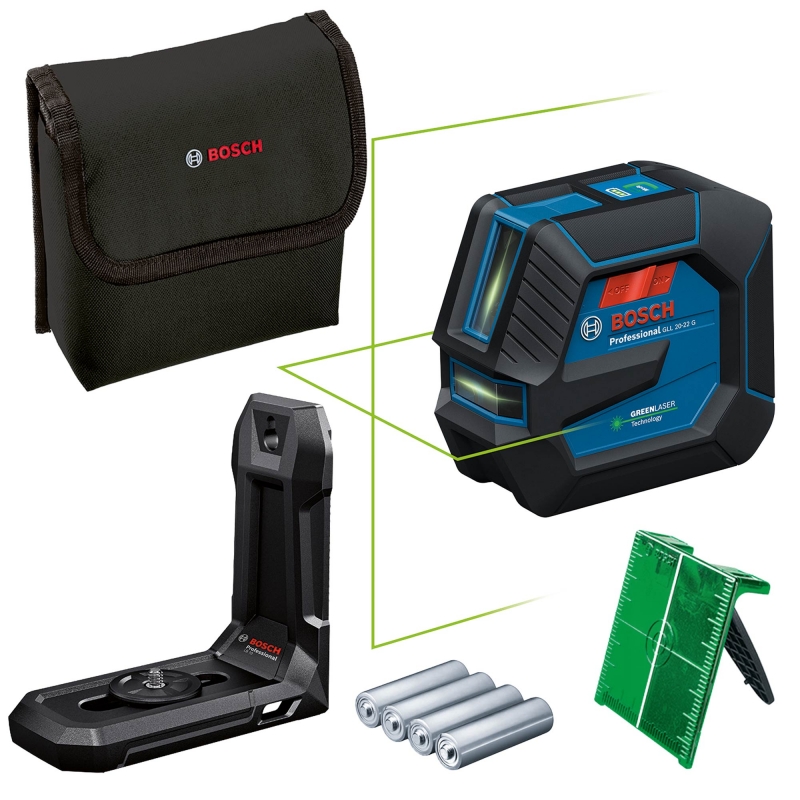

What’s Included
- GLL 20-22 G Line Laser
- LB 10 Universal Mount
- Laser Target Plate
- Protective Pouch
- 4 x 1.5 V LR6 Batteries (AA)
- Alkaline Battery Adapter
Product Overview

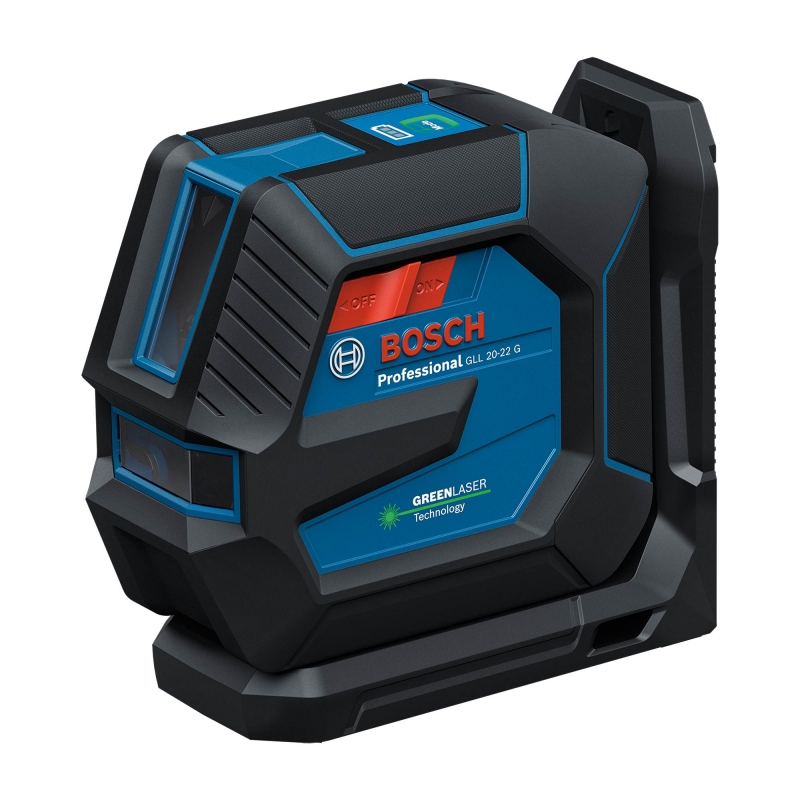

The Bosch GLL 20-22 G is a highly durable and precise green cross-line laser designed to deliver reliable levelling results in challenging working environments. Engineered with a focus on visibility and resilience, this unit projects bright green laser lines that are up to four times more visible to the human eye than traditional red beams, making it easier to work in brighter ambient light. Its reinforced construction ensures it can withstand the rigours of active job sites, while the intuitive interface allows for immediate setup and operation without a steep learning curve. The inclusion of the LB 10 Universal Mount adds significant versatility, allowing for magnetic attachment and precise positioning on various surfaces.
Part No: 0601065600(BOSM0601065600)
Features & Benefits

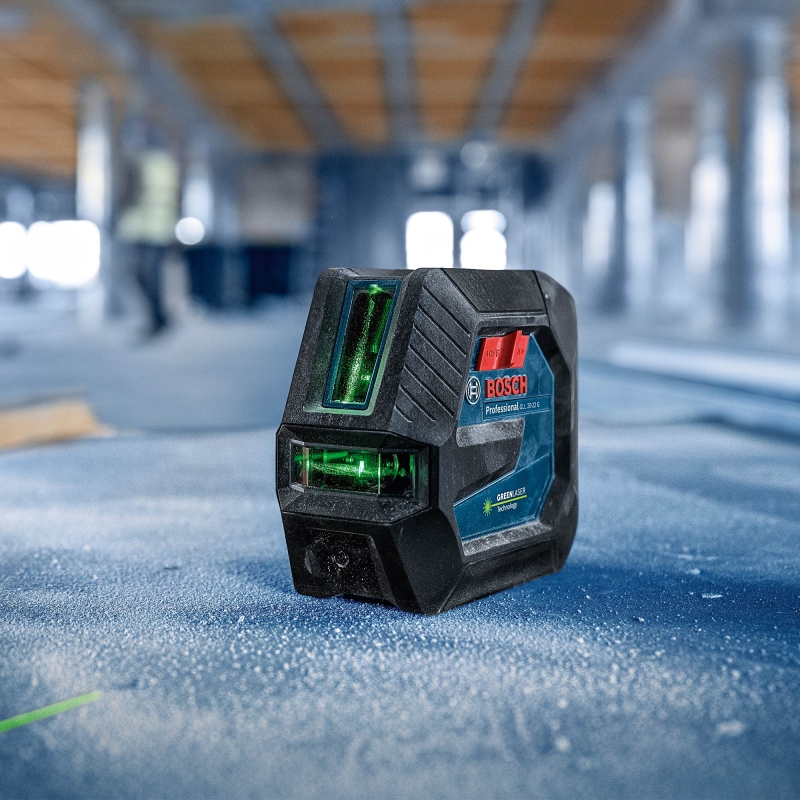

- Enhanced Green Beam Visibility: Projects high-intensity green laser lines that offer superior clarity and definition compared to red lasers, significantly improving accuracy in bright conditions.
- Robust IP65 Construction: Built with a rubber-enforced housing and sealed glass to meet IP65 standards, providing complete protection against dust ingress and resistance to water jets.

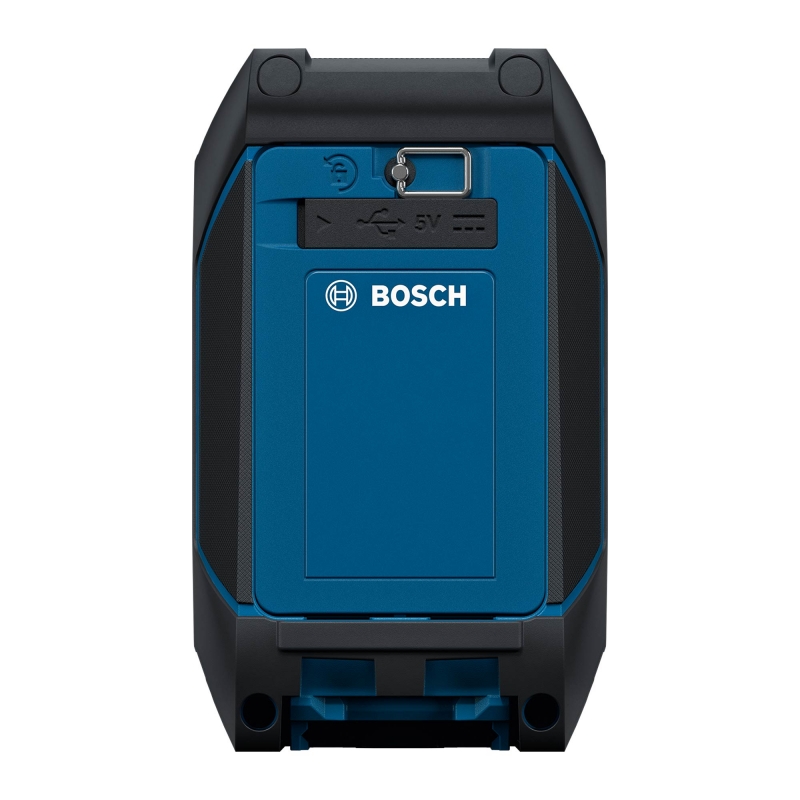

- Dual Power Source Compatibility: Offers flexible power options; while supplied with alkaline batteries, the unit is also compatible with the Bosch BA 3.7V 3.0Ah Li-Ion rechargeable battery (sold separately) to reduce downtime.

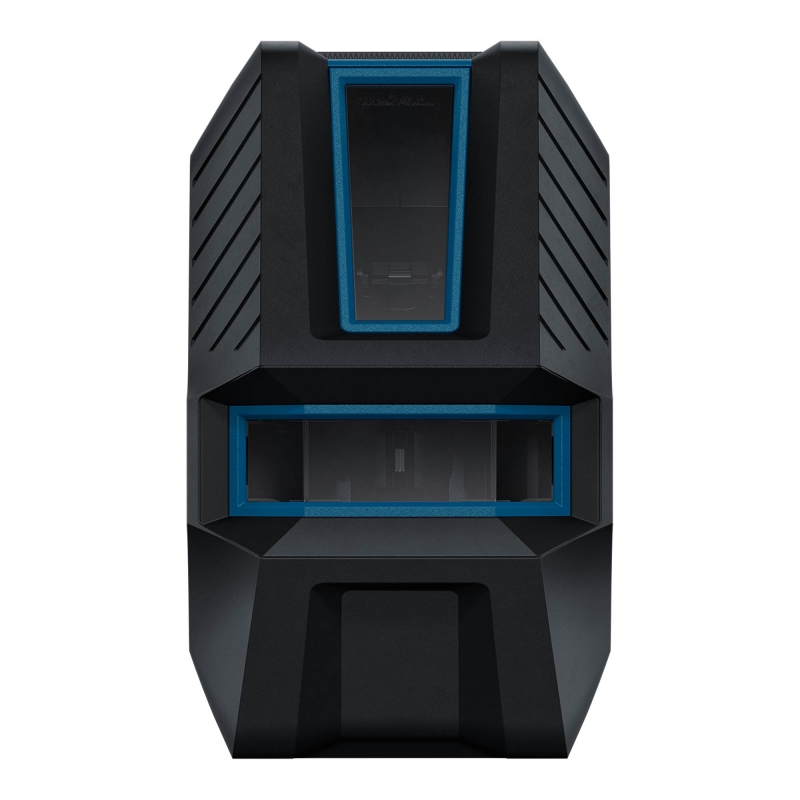

- U-Shaped Front Window: A uniquely designed front aperture extends the fan angle of the horizontal line, providing broader coverage across the working area without needing to reposition the tool.

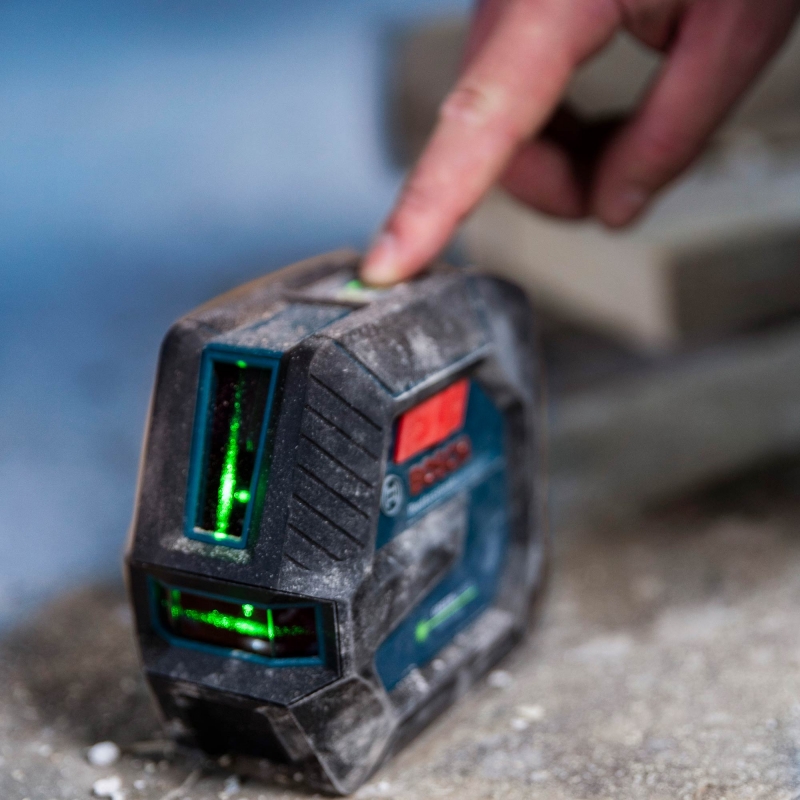

- Intuitive Keypad: Features a simplified two-button interface and an easy-to-read battery status indicator, ensuring the user is always aware of remaining power levels.
- Versatile Mounting: Includes the LB 10 Universal Mount with strong magnets, a ceiling clip hole, and a tripod thread, enabling secure attachment to metal surfaces or structural elements.
- Fast Self-Levelling: Automatically compensates for surface irregularities up to 4 degrees within just 4 seconds, flashing to alert the user if the unit is out of level.
Technical Specification
- Battery voltage: 3.7 V
- Laser diode: 500 540 nm, < 10 mW
- Operating temperature: -10 50 °C
- Storage temperature: -20 70 °C
- Laser class: 2
- Working range, value: 20 m
- Accuracy*: 0.3 mm/m
- Self-levelling range: 4°
- Levelling time: 4 s
- Dust and splash protection: IP 65
- Power supply: 3.7 V Li-Ion battery (3000 mAh), 4 x 1.5 V LR6 (AA)
- Operating time (max.): 8 h (Li-Ion) and 6 h (4 x AA) in cross line mode
- Weight, approx.: 0.56 kg
- Colour of laser line: green
- Projection: 2 lines
FAQs
Laser Levels are invaluable when you need a straight and level reference point; almost like a virtual chalk line. There are lots of different variations to think about, such as whether you need vertical lines, horizontal or both, what colour the beam should be and whether it will be used indoors or outdoors. This last point is an important one; ‘outdoor’ Laser Levels use a brighter, more powerful laser to ensure visibility in natural light, so are more expensive than their ‘indoor’ counterparts.
A feature that isn’t always available but is worth looking out for, is “self-levelling”. A self-levelling laser corrects itself regardless of any irregularities in the surface the laser has been placed on; this makes them quicker and simpler to use, as well as more accurate when compared to levels which are calibrated using a spirit level bubble.
The most common type of Laser Level now is the Line Level, which does what it says on the box and displays horizontal and vertical lines either together as a cross hair or as separate lines on a ceiling, wall or floor. If choosing a Line Level, think about the working visibility range your level can project, the accuracy of the beam and the number of beams your level can give you.
An alternative to a Line Levels would be a Rotary Level. These rotate 360°, providing a constant horizontal line through a complete circle. There are also Specialist Levels available, such as Inclinometers and Plumb Bobs.
At ToolStore UK, we sell Laser Levels with both red and green beams. But which should you choose? Fundamentally, there are two factors to consider; cost and distance. Green lasers offer greater distance and improved visibility but those advantages come at a price. Therefore, if you need a Laser Level but have a restricted budget, a red laser may be the right choice. However, for many users, visibility is the most important factor and that makes green lasers a clear favourite; they are between 10 and 50 times brighter than red lasers which makes green lasers four more times more visible to the naked eye than red.
