DEWALT DCE074D1R 18v Red Laser Kit With Detector 1x2ah

DCE074D1R-GB Product Overview

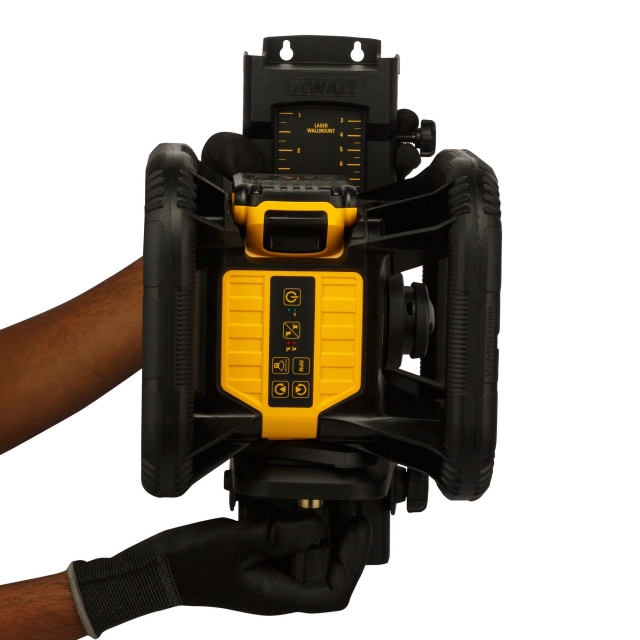

The DeWalt DCE074D1R red rotary laser kit has a working range of 45 metres, or an impressive 457 metres when used with the red laser detector provided. Perfect for professional use, it benefits from an automatic self-levelling mode on angles up to 8° as well as automatic rotary scan mode and detection (pulse) mode. Designed for jobsite conditions, this rotary laser kit enjoys impact resistant housing and has been drop tested up to 2 metres. Accurate to 3mm at 30m, this laser kit is supplied with a tripod connector and case.

Part No: DCE074D1R-GB(DEWPDCE074D1R)

DCE074D1R-GB Technical Specifications

  • Laser class: 2
  • Levelling accuracy: +/-3mm@30m mm/m
  • Indoor Visibility Range: 45 - 457 m
  • Max. Working Range with Receiver: 45 - 457 m
  • Sloping range in X and Y axis: +/-10°
  • Power Source: 18v
  • Tripod connection: Yes
  • Weight (incl. battery): 7250 g
  • Width: 300 mm
  • Length: 440 mm
  • Height: 330 mm

DEWALT DCE074D1R 18v Red Laser Kit With Detector 1x2ah

Great news! Buying this product qualifies you for
unavailable Sorry, we are out of stock

DCE074D1R-GB Key Features

  • Full Automatic Horizontal and Vertical Self Levelling laser +/-5°
  • Visibility range of 45m and 450m with detector
  • Plumb Dot Up
  • Single Slope Mode allows user to set grade
  • +/- 15 / 45 / 90° Scan Mode
  • +/- 3mm accuracy per 30m

DCE074D1R-GB What’s Included

  • 1 x DCE074 Red Rotary Laser
  • 1 x Detector
  • 1 x 2ah 18v Battery
  • TSTAK Heavy Duty Carrying Case
  • Number of Batteries Supplied: 1
  • Voltage: 18v
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
What should I look for when buying a Laser Level?

Laser Levels are invaluable when you need a straight and level reference point; almost like a virtual chalk line. There are lots of different variations to think about, such as whether you need vertical lines, horizontal or both, what colour the beam should be and whether it will be used indoors or outdoors. This last point is an important one; ‘outdoor’ Laser Levels use a brighter, more powerful laser to ensure visibility in natural light, so are more expensive than their ‘indoor’ counterparts.

A feature that isn’t always available but is worth looking out for, is “self-levelling”. A self-levelling laser corrects itself regardless of any irregularities in the surface the laser has been placed on; this makes them quicker and simpler to use, as well as more accurate when compared to levels which are calibrated using a spirit level bubble.

Different types of Laser Level

The most common type of Laser Level now is the Line Level, which does what it says on the box and displays horizontal and vertical lines either together as a cross hair or as separate lines on a ceiling, wall or floor. If choosing a Line Level, think about the working visibility range your level can project, the accuracy of the beam and the number of beams your level can give you.

An alternative to a Line Levels would be a Rotary Level. These rotate 360°, providing a constant horizontal line through a complete circle. There are also Specialist Levels available, such as Inclinometers and Plumb Bobs.

Red or Green Beams?

At ToolStore UK, we sell Laser Levels with both red and green beams. But which should you choose? Fundamentally, there are two factors to consider; cost and distance. Green lasers offer greater distance and improved visibility but those advantages come at a price. Therefore, if you need a Laser Level but have a restricted budget, a red laser may be the right choice. However, for many users, visibility is the most important factor and that makes green lasers a clear favourite; they are between 10 and 50 times brighter than red lasers which makes green lasers four more times more visible to the naked eye than red.
