STANLEY SCR-P5 Fatmax Cross / 5 Spot Laser - Red
FMHT1-77415 Product Overview
The STANLEY FATMAX 5 Spot and Cross Line Red Beam Laser Level projects 5 independent spot points (3 horizontal, 1 plumb up and 1 down) along with 1 horizontal and 1 vertical line to create a cross line, making it ideal for drop ceiling applications, along with tiling, stud walling, window and spotlight fittings, cabinet placements, pipework and cable laying. With an accuracy of +/-3 mm @10m, the Class II laser offers a 20m (line) and 30m (spots) working range, which increases to 50m when used with a detector (not included). The unit also features a 1/4"" and 5/8"" thread, which allows it to be mounted to a tripod (not included) as a well as a bracket (included) for easy and efficient set-up.
Part No: FMHT1-77415(STANFMHT1-77415)
FMHT1-77415 Technical Specifications
- 20m (Line), 30m (Spots) working range, 50m with a detector
- Accuracy of +/- 3mm @10m
- Projects a full cross line (horizontal & vertical) + 5 independent spot points
- Down beam with raised clearance provides line visibility and alignment for wall track layout
- Pulsed beam mode allows operations outdoors in combination with the detector
- Cross line function features a 150 degrees fan angle providing ample coverage with little set-up time
- Pendulum lock for safe transportation
- 1/4 and 5/8 thread allows unit to be mounted to a tripod
- Magnetic base allows laser to be mounted direct to metal track to ensure accurate projections all around
- Over-moulded housing with a 1m drop resistance and rated to IP54 to protect against dust and water spray
- Runs on 4x AA Alkaline Batteries (Supplied)
STANLEY SCR-P5 Fatmax Cross / 5 Spot Laser - Red
FMHT1-77415 Key Features
- PRECISION AND ACCURACY: +/- 3mm at 10M
- IP RATED TO IP54: Protects against dust and water spray
- PENDULUM LOCK: For safe transportation
- PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m
- RUNS ON: 4xAA NiMH (supplied)
- INCLUDES: Multi Bracket, Glasses, Battery ChargerTRIPOD THREAD: 1/4 & 5/8" thread allows the unit to be mounted to a tripod
- DOWN BEAM: With raised clearance provides line visibility and alignment for all track layout
- 150° FAN ANGLE: Providing ample coverage with little set-up time

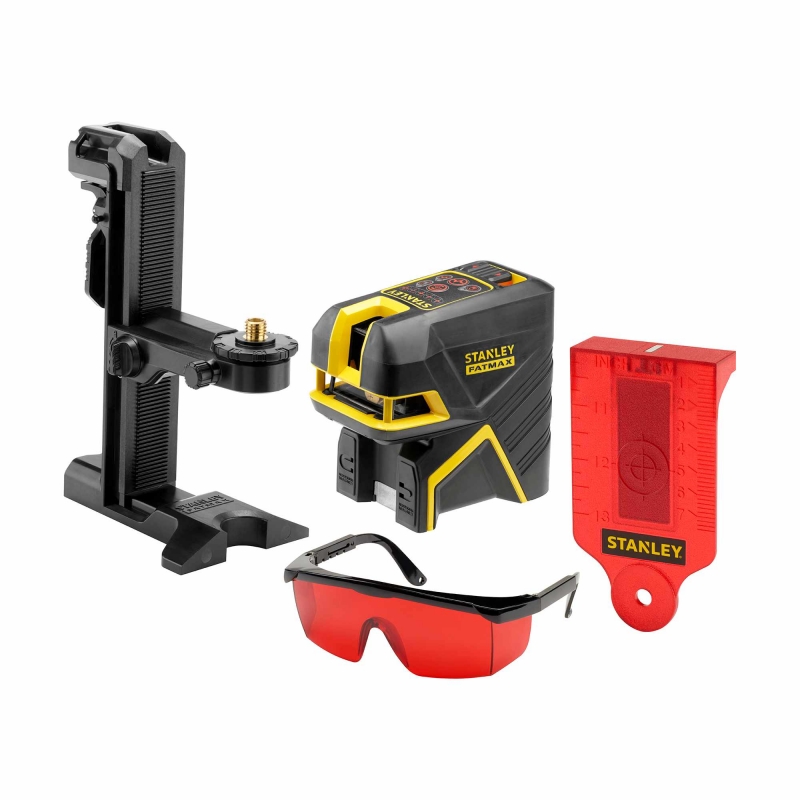

FMHT1-77415 What’s Included
- Glasses
- Target card
- Multi-bracket
