BOSCH GDM600-15 Digital Multimeter

The GDM 600-15 Professional is a robust, high-precision digital multimeter engineered for accurate electrical diagnostics in demanding environments. Featuring True RMS measurement capability, this device ensures reliable readings of complex signals and non-linear loads. The unit is built with a durable housing that carries an IP65 rating, offering substantial protection against dust ingress and water jets, while also being tested to withstand drops from up to 2 meters. Its user-centric design includes a high-contrast inverted LCD display for superior visibility in varying lighting conditions and a compact form factor that supports one-handed operation.

Part No: 0601077300(BOSM0601077300)

• True RMS Precision: Delivers accurate measurements of AC current and voltage, even when measuring non-linear signals or distorted waveforms.
• High Durability: Constructed with a rugged housing rated at IP65, ensuring the device is dust-tight and protected against water jets, suitable for harsh site conditions.
• Drop Resistant: Engineered and tested to withstand falls from heights of up to 2 meters without compromising functionality.
• Inverted LCD Display: Features a large, high-contrast screen that improves readability in both bright outdoor light and dim indoor environments.
• Min/Max/Average Recording: Allows for the monitoring of signal fluctuations over time, capturing the highest, lowest, and average readings automatically.
• Extended Measurement Functions: Capable of measuring frequency, continuity, resistance, and capacitance in addition to standard voltage and current.
• Ergonomic Design: The compact shape and rubberised grip facilitate comfortable one-handed use, reducing fatigue during extended measuring tasks.

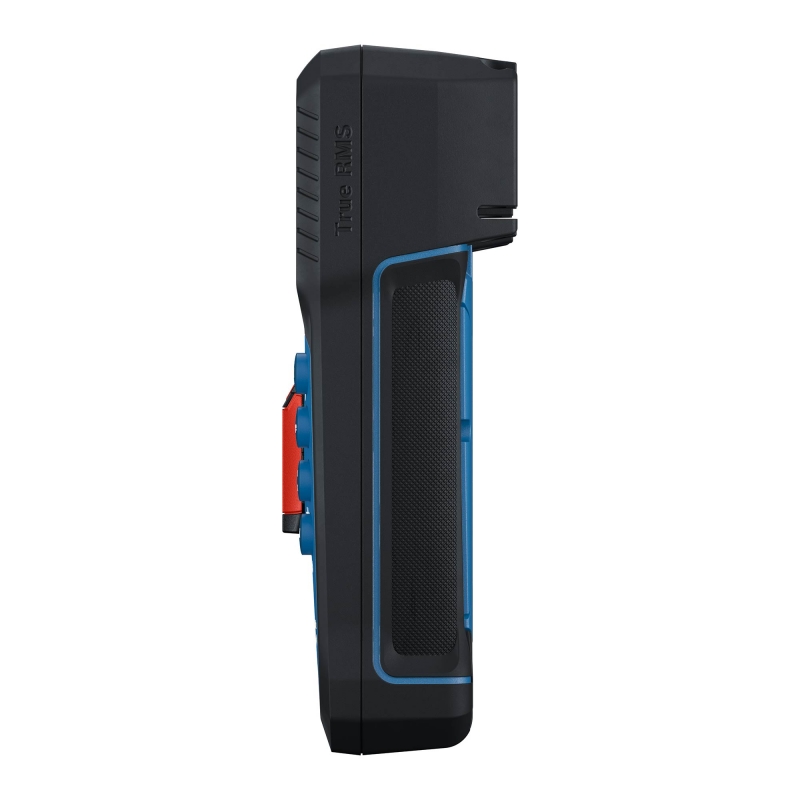

• Hands-Free Operation: Includes a built-in kickstand for upright positioning on flat surfaces (compatible with magnetic hanging accessories sold separately).

• AC voltage: 600 V
• AC voltage resolution: 0.1 mV
• AC voltage accuracy: 1.0 % + 3
• AC current: 10 A
• AC current resolution: 0.001 A
• AC current accuracy: 1.5% + 3
• DC voltage: 600 V
• DC voltage resolution: 0.1 mV
• DC voltage accuracy: 0.5 % + 2
• DC current: 10 A
• DC current resolution: 0.001 A
• DC current accuracy: 1.0 % + 3
• Resistance: 40 M
• Resistance resolution: 0.01 MOhm
• Resistance accuracy: 2.0 % + 5
• Capacitance: 1000 F
• Capacitance accuracy: 1.9 % + 2
• Continuity: yes
• Continuity resolution: 0.1 Ohm
• Continuity accuracy: 1.0 % + 5
• Frequency AC A min: 600
• Frequency AC A max: 10
• Frequency resolution: 0.01 Hz
• Frequency accuracy: 0.1 % + 2
• IP-Protection: IP65
• True RMS: yes
• Safety class: CAT III 600 V
• Display type: LCD Inverted
• Acoustic feedback: yes
• Measuring range for frequency: 50 kHz ACV / 2 kHz ACA
• Cable Break Detection: no
• Packaging dimensions (width x length x height): 59 x 177 x 78 mm
