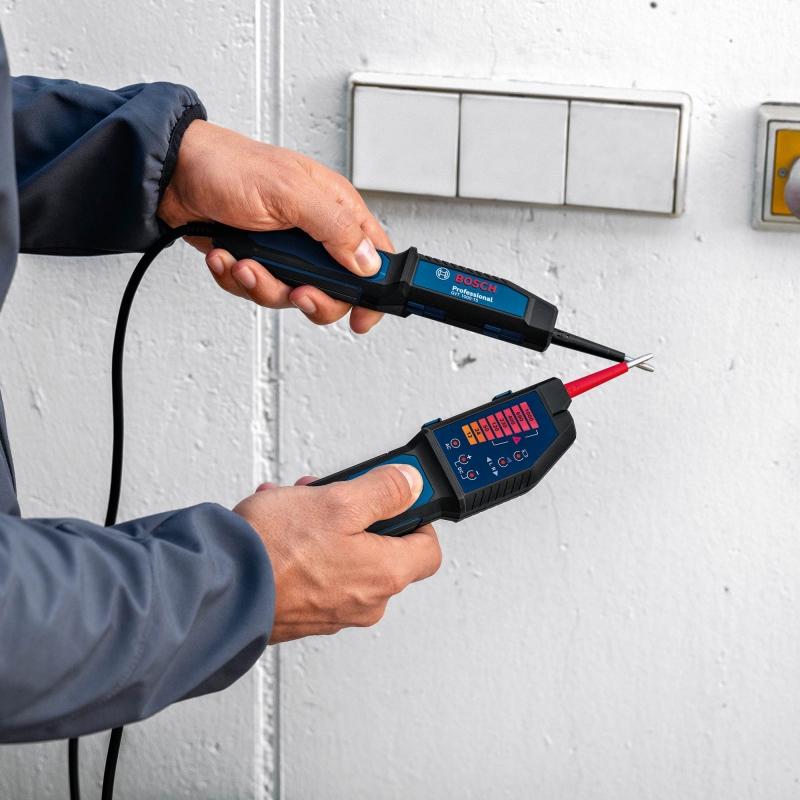

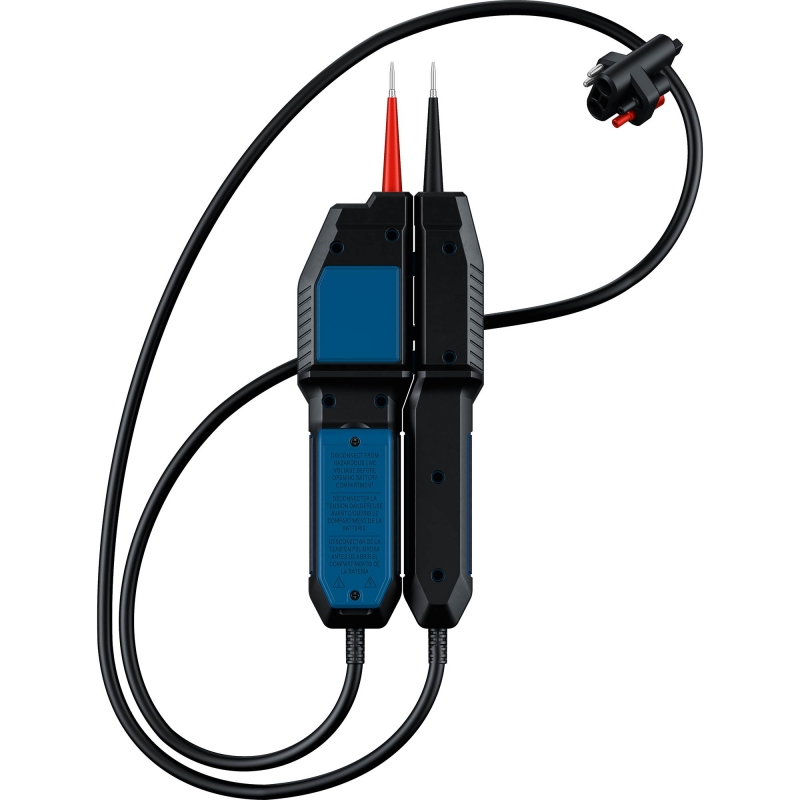

BOSCH GVT1000-15 Voltage Tester (AAA)

The Bosch GVT 1000-15 Voltage Tester is a robust and highly capable instrument engineered to deliver precise voltage readings in demanding environments. This unit is built to withstand rigorous site conditions while ensuring user safety through multiple feedback mechanisms. Whether you are conducting routine circuit checks or troubleshooting complex electrical faults, this device provides immediate clarity on system status. Its ergonomic design prioritises user comfort during extended use, and the extended cable length offers practical reach for navigating large switchgear or difficult-to-access testing points.

Part No: 0601077800(BOSM0601077800)

• Versatile Voltage Detection: Capable of testing voltage levels up to 1000 V AC/DC, making it suitable for a wide variety of electrical systems and applications.
• Multi-Sensory Feedback: Users receive immediate measuring results through three distinct indicators: a clear LED visual display, an audible buzzer, and tactile vibration feedback.
• Enhanced Durability: Constructed with a robust housing that achieves an IP65 rating, ensuring the tool is dust-tight and protected against water jets, alongside significant drop resistance.
• Integrated Torch: A built-in light source illuminates the workspace, improving visibility and safety when operating in dark or confined areas.

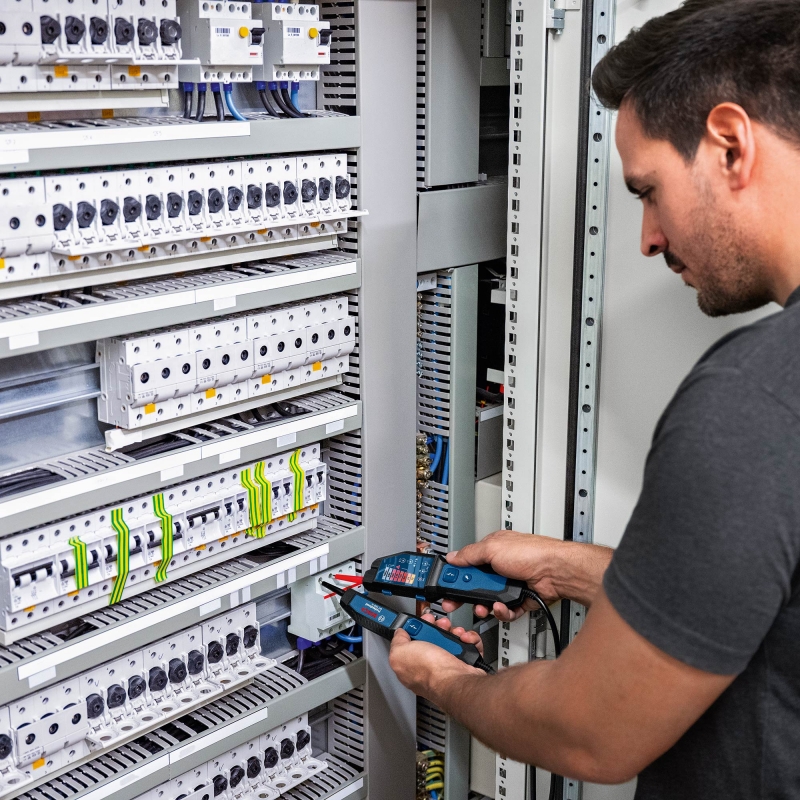

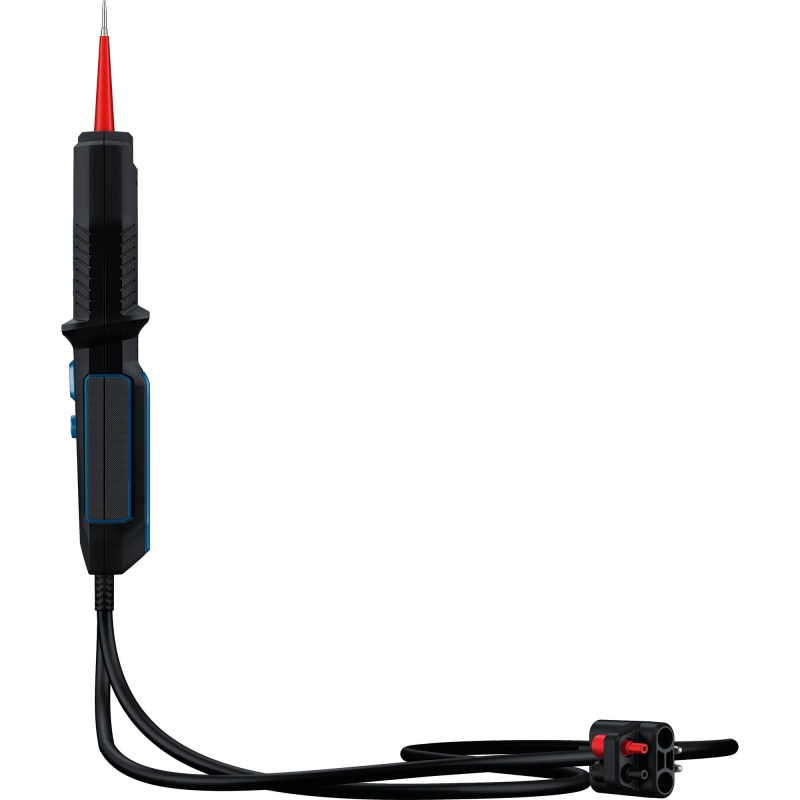

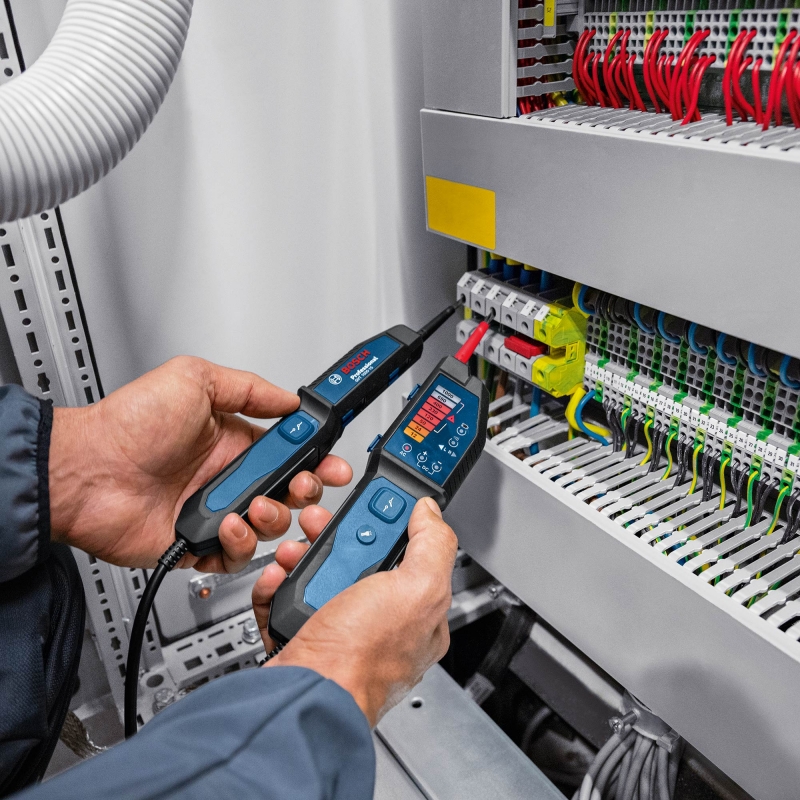

• Extended Reach: features a generous 125 cm cable, providing the flexibility needed to test terminals in large cabinets without strain.
• Comprehensive Testing Suite: Beyond standard voltage checks, the unit performs continuity testing, polarity checks, phase sequence indication, and single-pole phase testing.
• RCD Tripping Function: Includes a dedicated load connection via push button to intentionally trip Residual Current Devices (RCDs) for functional verification.
• Safety Verification: A built-in self-test function allows the user to verify the tool's integrity and functionality prior to use, ensuring reliable operation.

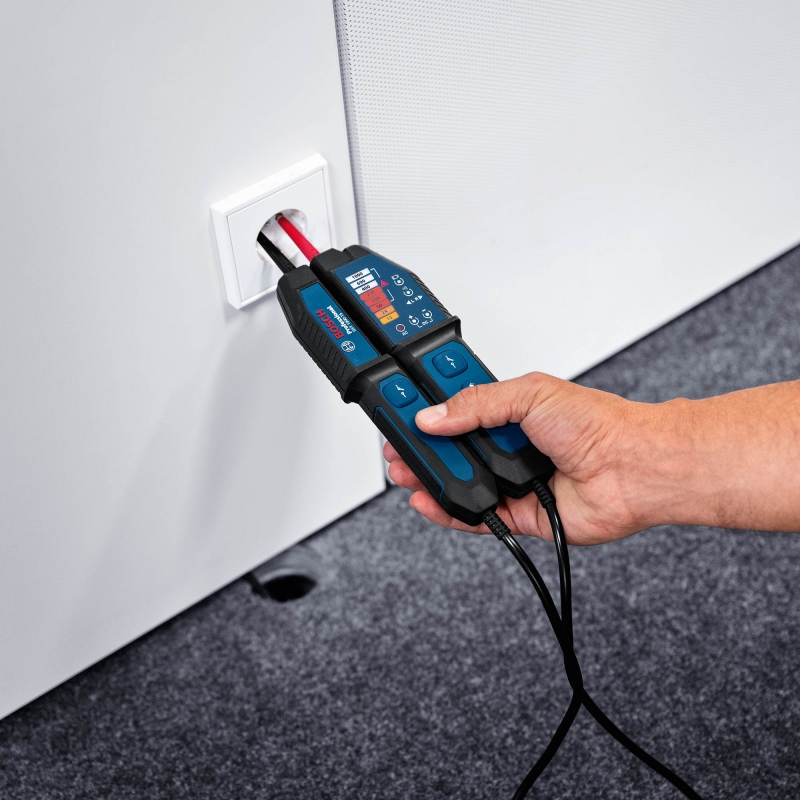

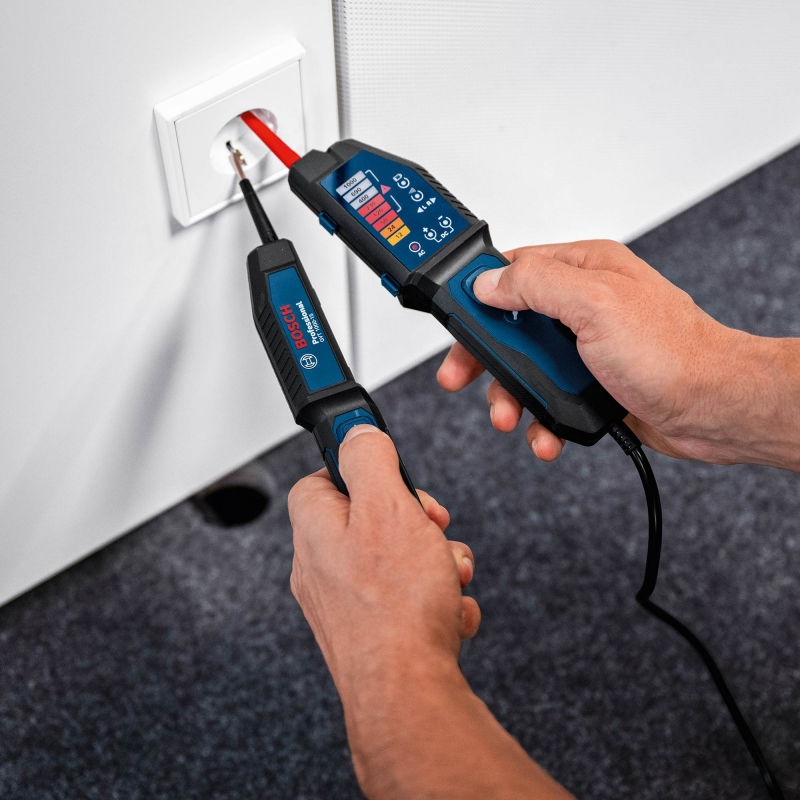

• One-Handed Operation: Attachable handles enable the user to maintain a secure grip while testing standard sockets and outlets efficiently.

• Voltage Range: 12 V 1000 V AC/DC

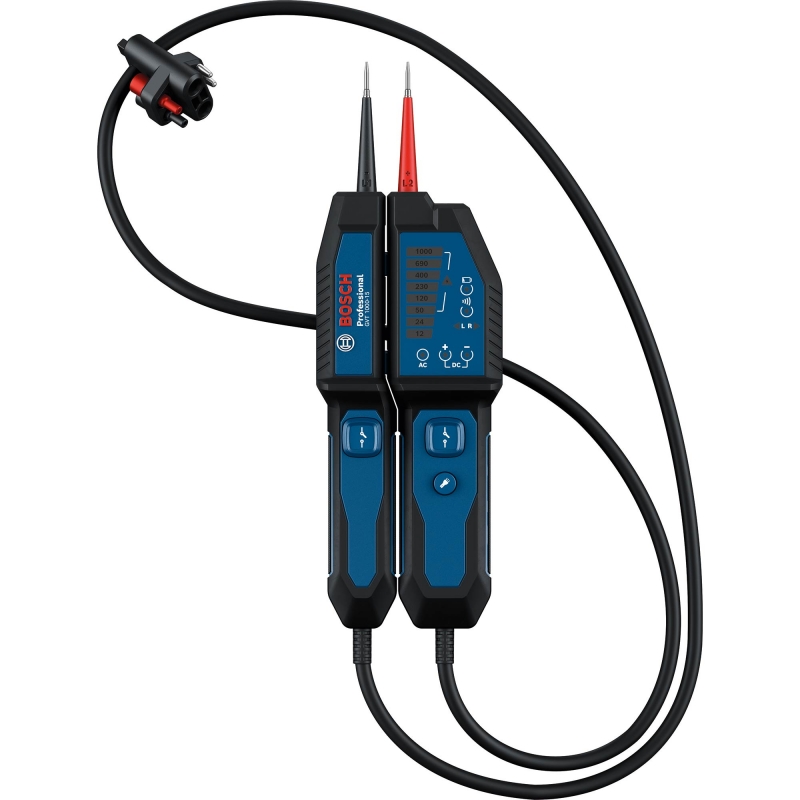

• Display Type: LED Indicators
• Safety Category: CAT IV 600 V / CAT III 1000 V
• Ingress Protection: IP65 (Dust-tight and water-jet resistant)
• Cable Length: 125 cm

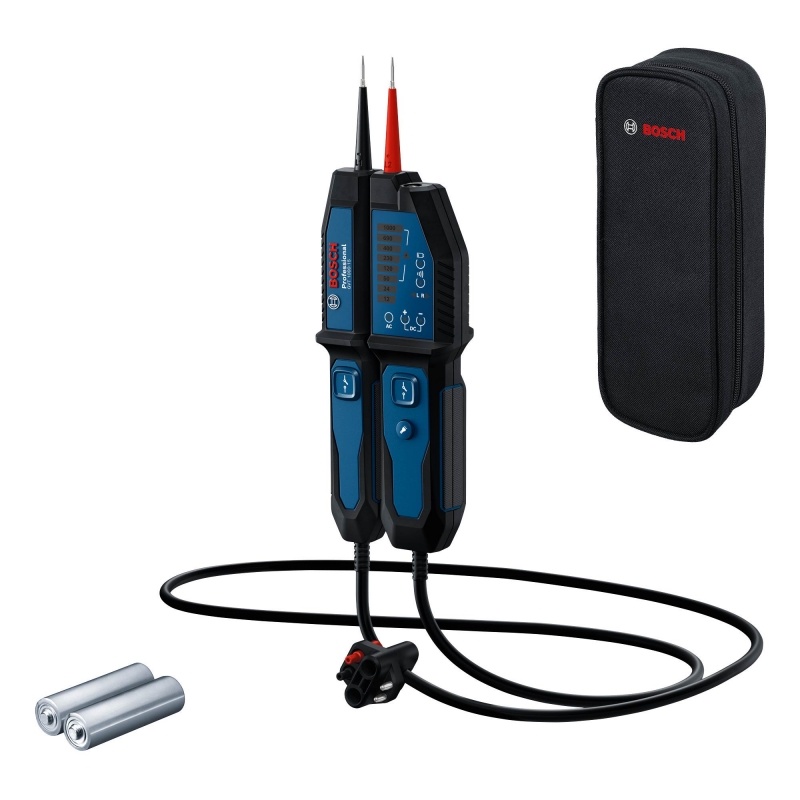

• Power Supply: 2 x 1.5 V LR03 (AAA) Batteries
• Operating Temperature: -10°C to +50°C
• Functions: Voltage test, Continuity test, Phase sequence, Polarity test, RCD trip test, Single-pole phase test.
• Feedback Methods: Visual (LED), Acoustic (Buzzer), Haptic (Vibration)
