STANLEY STHT77592-1 Cross 90 Laser - Green

STHT77592-1 Product Overview

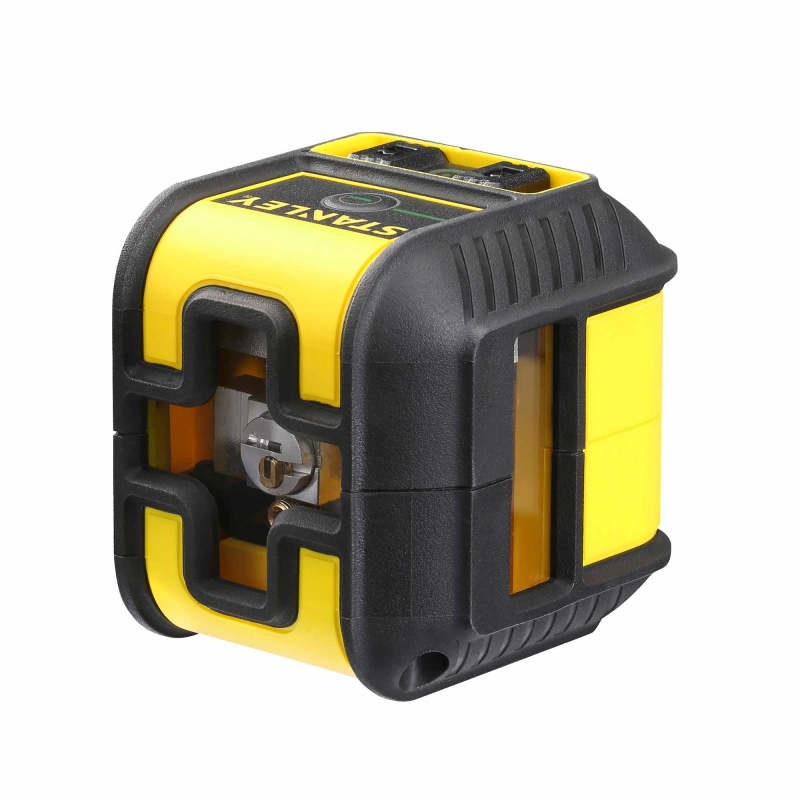

The STANLEY Cross 90 Cross Line Green Beam Laser Level offers a 16m working range with an accuracy of +/-5mm @10m. This green beam laser level projects 1 horizontal and 1 vertical line to create a cross line plus additional 90 degrees beam and can also be flipped on its back to make ceiling applications easy.

Part No: STHT77592-1(STANSTHT77592-1)

STHT77592-1 Technical Specifications

  • Laser Accuracy: +/-5mm@10m
  • Laser Beam Color: Green Beam
  • Visible Working Distance: 16 m
  • Number of Beams: 2
  • Line Diagram: Cross Line
  • Leveling Type: Self-leveling
  • Product Width: 17.5 cm
  • Product Length: 24 cm
  • Product Height: 15 cm
  • Product Weight: 0.59 Kg
  • Battery Source: Alkaline Battery (AA)
  • Number of Batteries Included: 2

STANLEY STHT77592-1 Cross 90 Laser - Green

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
unavailable Sorry, we are out of stock

STHT77592-1 Key Features

  • 16m Working Range
  • Accuracy of +/- 5mm @10m

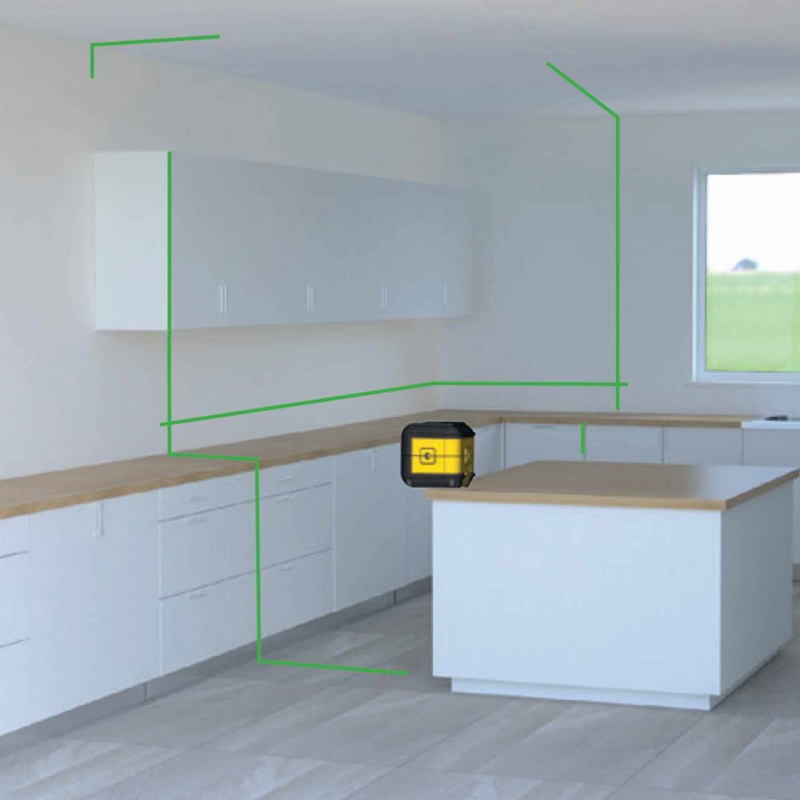

  • Projects 1 horizontal and 1 vertical line to create a cross line plus additional 90 degrees vertical beam
  • Green beam Laser diode provides full brightness for visibility and extended working range
  • Can be flipped on its back for ceiling applications
  • Self-levelling to +/-4 degrees
  • Rated to IP50 to protect against dust
  • Pendulum lock for safe transportation
  • 1/4"" Thread allows the unit to be mounted to a tripod
  • Suitable for internal use
  • Runs on 2 x AA batteries (supplied)
  • Includes QuickLink bracket system and soft pouch

STHT77592-1 What’s Included

  • 2 x AA batteries
  • QuickLink bracket system
  • Soft pouch



    Delivery & Returns
    Delivery & Returns
    We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
    FAQs
    FAQs
    What should I look for when buying a Laser Level?

    Laser Levels are invaluable when you need a straight and level reference point; almost like a virtual chalk line. There are lots of different variations to think about, such as whether you need vertical lines, horizontal or both, what colour the beam should be and whether it will be used indoors or outdoors. This last point is an important one; ‘outdoor’ Laser Levels use a brighter, more powerful laser to ensure visibility in natural light, so are more expensive than their ‘indoor’ counterparts.

    A feature that isn’t always available but is worth looking out for, is “self-levelling”. A self-levelling laser corrects itself regardless of any irregularities in the surface the laser has been placed on; this makes them quicker and simpler to use, as well as more accurate when compared to levels which are calibrated using a spirit level bubble.

    Different types of Laser Level

    The most common type of Laser Level now is the Line Level, which does what it says on the box and displays horizontal and vertical lines either together as a cross hair or as separate lines on a ceiling, wall or floor. If choosing a Line Level, think about the working visibility range your level can project, the accuracy of the beam and the number of beams your level can give you.

    An alternative to a Line Levels would be a Rotary Level. These rotate 360°, providing a constant horizontal line through a complete circle. There are also Specialist Levels available, such as Inclinometers and Plumb Bobs.

    Red or Green Beams?

    At ToolStore UK, we sell Laser Levels with both red and green beams. But which should you choose? Fundamentally, there are two factors to consider; cost and distance. Green lasers offer greater distance and improved visibility but those advantages come at a price. Therefore, if you need a Laser Level but have a restricted budget, a red laser may be the right choice. However, for many users, visibility is the most important factor and that makes green lasers a clear favourite; they are between 10 and 50 times brighter than red lasers which makes green lasers four more times more visible to the naked eye than red.
