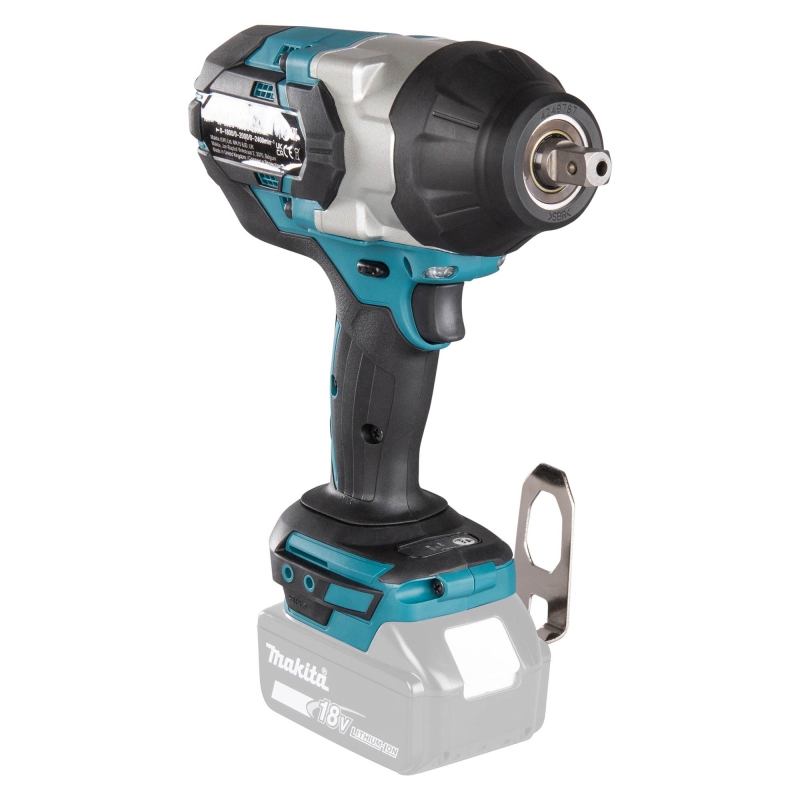

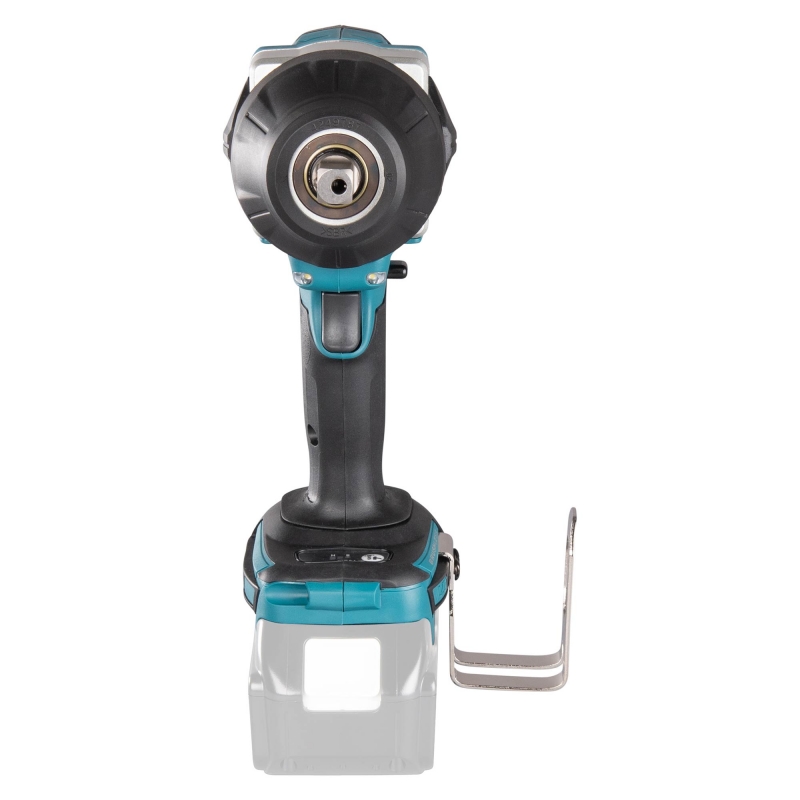

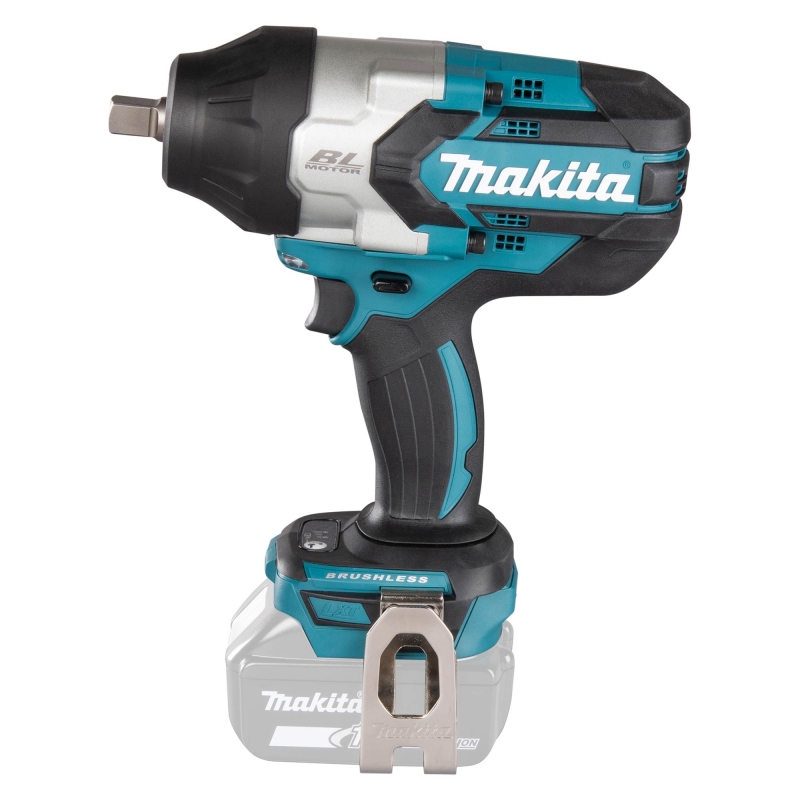

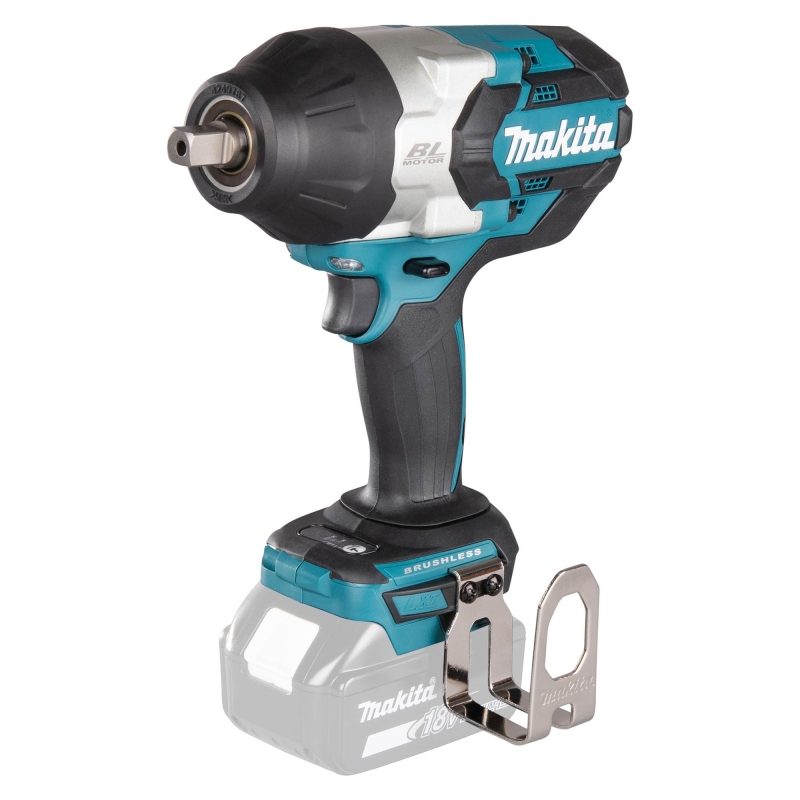

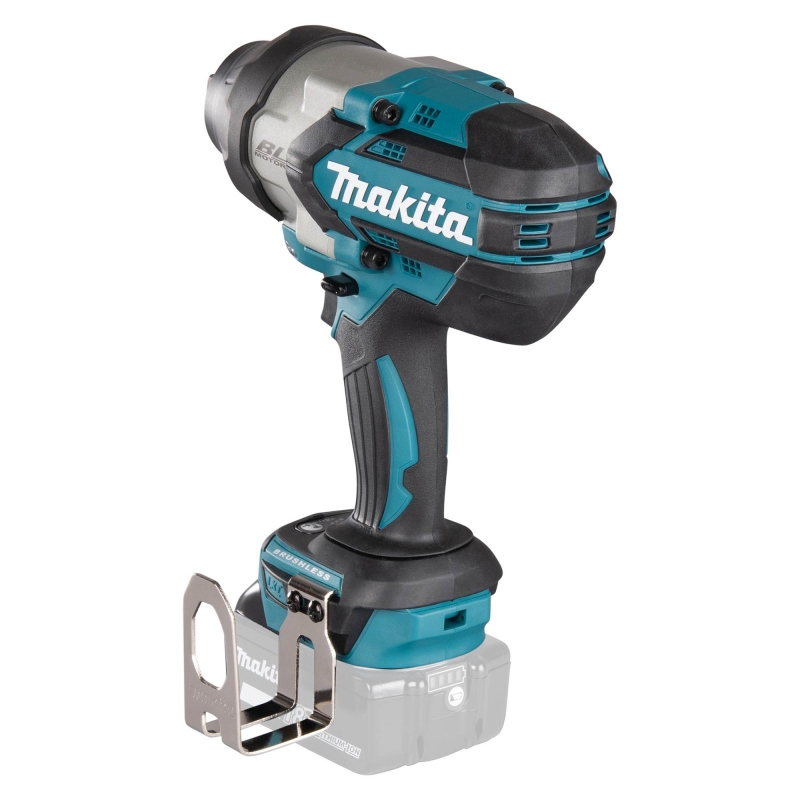

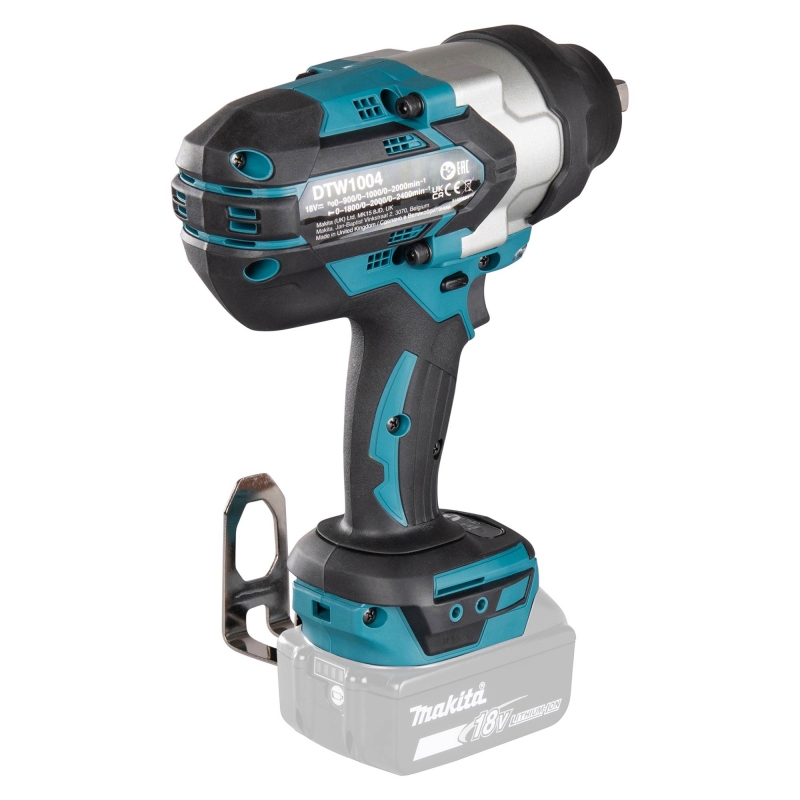

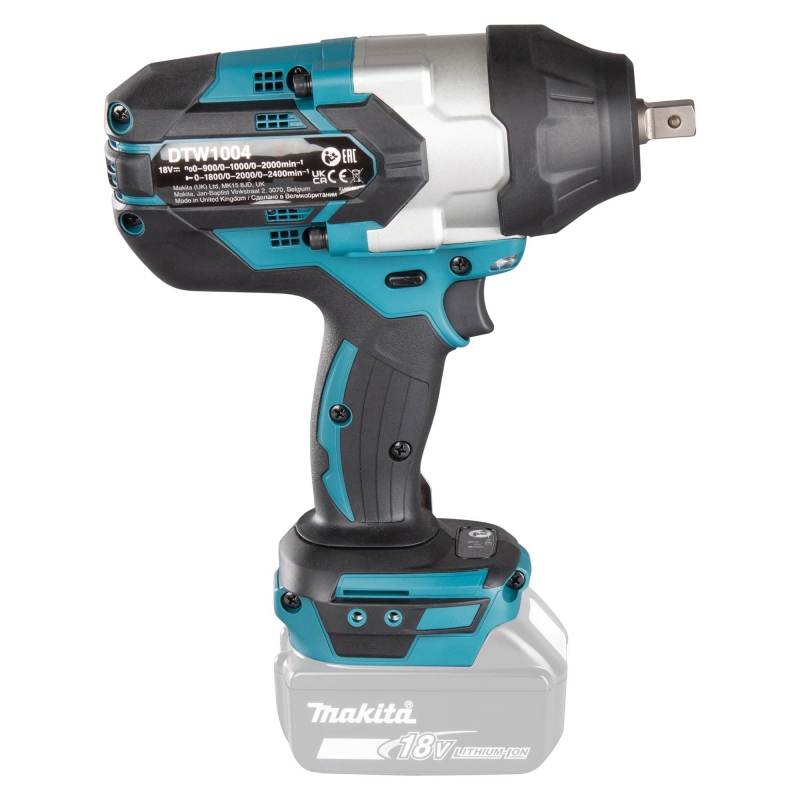

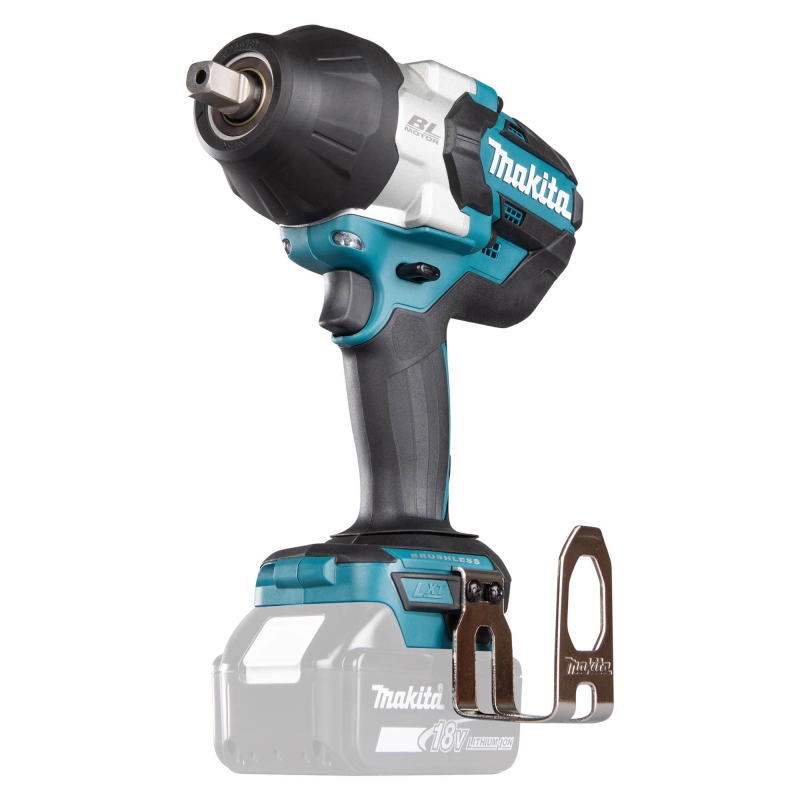

MAKITA DTW1004Z 18v Brushless Impact Wrench BODY ONLY

MAKITA DTW1004Z 18v Brushless Impact Wrench BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
unavailable Sorry, we are out of stock
Why Not Add
What’s Included
  • This is a Body Only machine and is not supplied with a battery or charger
  • Number of Batteries Supplied: 0
  • Voltage: 18v
  • Type: Brushless
Product Overview
The Makita DTW1004Z is a high-performance cordless impact wrench designed for professionals and DIY enthusiasts. Its 18V brushless motor delivers impressive power and torque for various fastening applications, from automotive repairs to construction projects. With its ergonomic design and advanced features, the DTW1004Z ensures efficient and comfortable operation even in challenging conditions.

Part No: DTW1004Z(MAKPDTW1004Z)

Features & Benefits
  • Brushless Motor: Delivers more power, longer runtime, and increased tool lifespan compared to brushed motors.
  • 3-Stage Impact Power Selection: Allows you to adjust the RPM and fastening torque to suit different tasks.
  • Variable Speed Control Trigger: Provides precise control over the tool's speed.
  • Electric Brake: Stops the rotation quickly for enhanced safety and control.
  • Twin LED Job Light: Illuminates the work area for improved visibility.
  • 1/2" Square Drive with Detent Pin: Ensures secure socket retention.
  • Ergonomic Soft Grip Handle: Offers comfortable handling and reduces fatigue.
  • Compact and Lightweight Design: Enhances maneuverability in tight spaces.
Technical Specification
  • Voltage: 18V
  • Max Output Power: 620W
  • Drive Square: 1/2"
  • No Load Speed: 0 - 900 / 1,000 / 2,000 RPM
  • Max Fastening Torque: 170 / 250 / 1,050 Nm
  • Nut Busting Torque: 1,300 Nm
  • Tightening Capacity (Standard Bolt): M12 - M30
  • Tightening Capacity (High Tensile Bolt): M16 - M24
  • Impacts per Minute (IPM): 0 - 1,800 / 2,000 / 2,400 IPM
  • Sound Power Level (LWA): 106 dB(A)
  • Sound Pressure Level (LpA): 98 dB(A)
  • Vibration Level (3 axes, Fastening Bolt): 18.4 m/s²
FAQs
What should I look for when buying a Cordless Impact Wrench?

Cordless Impact Wrenches are used for undoing and tightening bolts when no other tool can provide enough force. Therefore, you need to choose an Impact Driver which has the right level of power for the work it will be doing. This is measured by torque, which is then measured in Newton-metres (Nm). The higher the torque, the more power you have at your disposal.
Impact wrenches can use extra power to undo particularly troublesome nuts. This is known as ‘Nut-busting torque’ and the machine will apply it automatically. The more power a machine has, the more torque it can generate. As an example, some of the 12v Impact Wrenches in our range generate a Nut-busting torque of 290 Nm but the new 40v tools can produce up to 2,050 Nm of Nut-busting torque.
Cordless Impact Wrenches are extremely powerful, so be aware of the risks of bolts shearing off or material becoming damaged during use.

Which is better: brushless or brushed motors?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

Our range of Cordless Impact Wrenches starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size. Professionals who need more power from their Impact Wrench for working on site could also consider the 40v XGT range from Makita.
