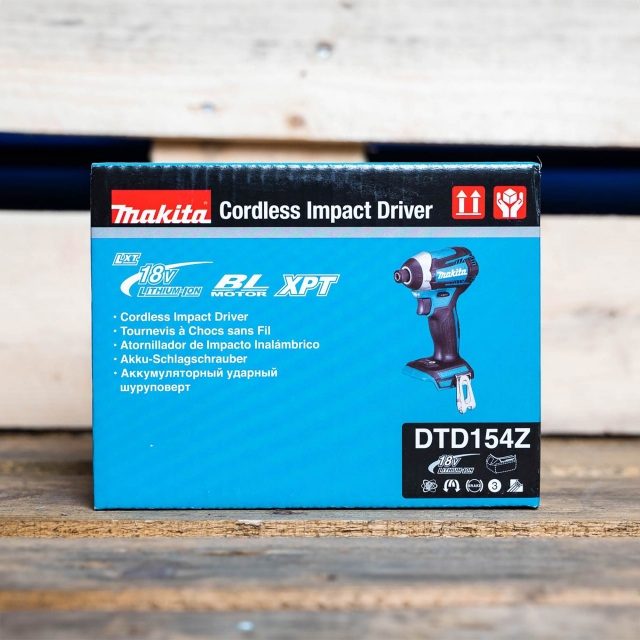

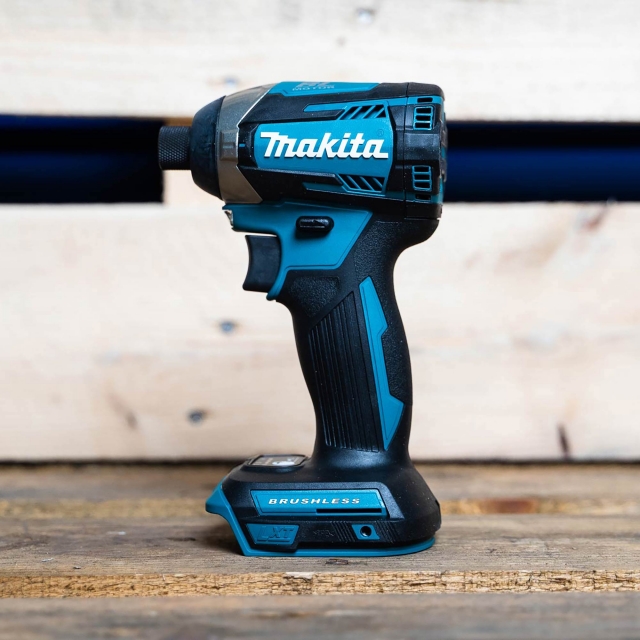

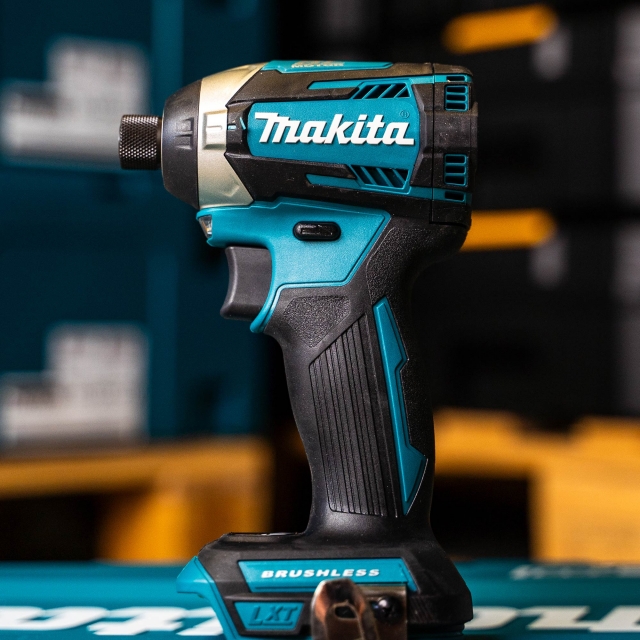

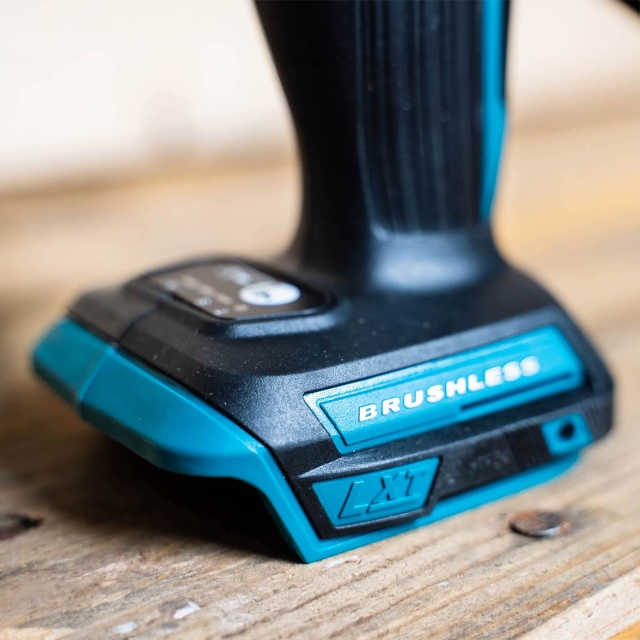

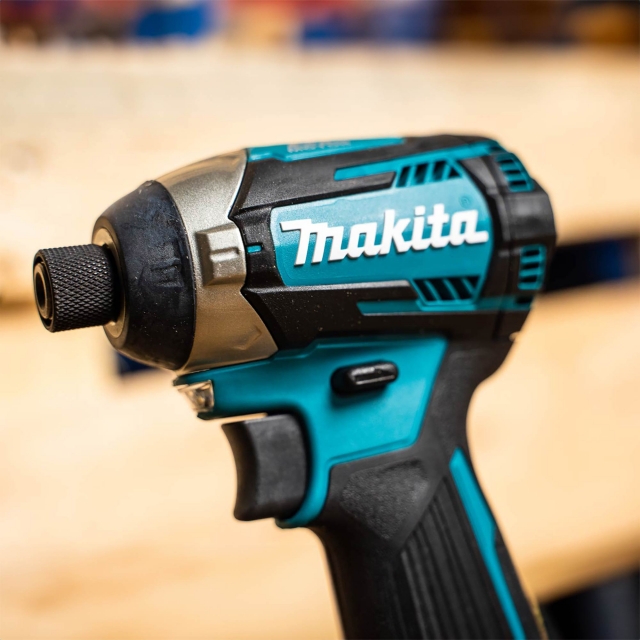

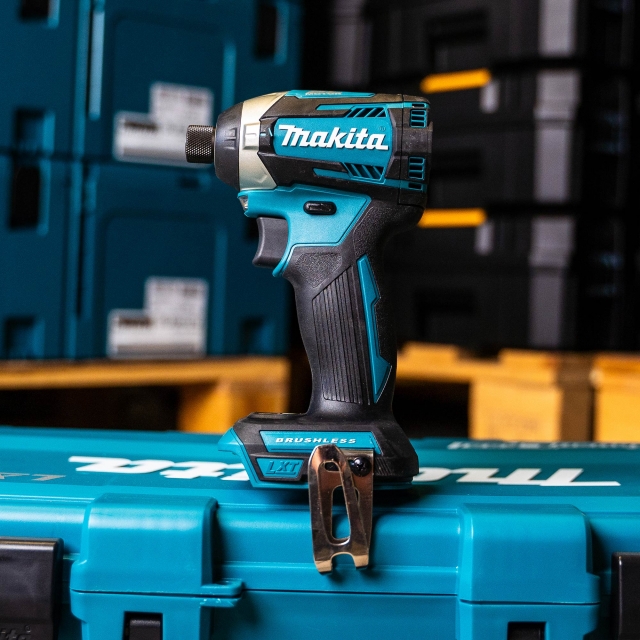

MAKITA DTD154Z 18v LXT Brushless Impact Driver BODY ONLY
MAKITA DTD154Z 18v LXT Brushless Impact Driver BODY ONLY
Why Not Add
VAT (£9.22 ex VAT)
VAT (£2.61 ex VAT)
VAT (£11.35 ex VAT)
VAT (£9.71 ex VAT)
What’s Included
- Body Only: No battery or charger included
- Packaging: May be supplied in unbranded packaging
- Number of Batteries Supplied: 0
- Voltage: 18v
- Type: Brushless
Product Overview
The MAKITA DTD154Z 18V LXT Brushless Impact Driver is a high-performance tool designed for professional use. With a special tightening mode for self-drilling screws and an electronic 3-stage impact power selection, these Makita impact drivers deliver up to 175 Nm of torque and 3,800 impacts per minute in high-speed mode. Its compact and lightweight design makes it perfect for a wide range of applications.
Part No: DTD154Z(MAKPDTD154Z)
Features & Benefits
- T-mode: Tightening mode for self-drilling screws
- Electronic 3-stage impact power selection: Hard/Medium/Soft
- Brushless Motor: Enhances efficiency and extends tool life

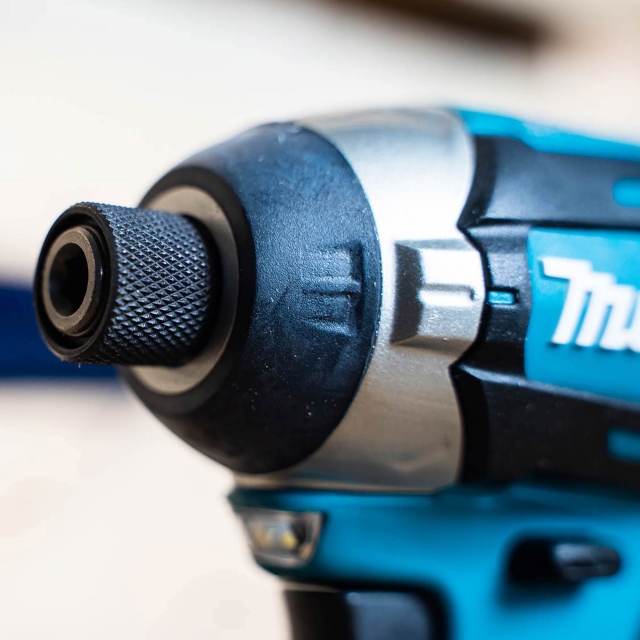

- One Touch Sliding Chuck: For easy bit installation and removal
- LED Job Light: Improves visibility in low-light conditions
- Ergonomic Soft Grip: Increases comfort during use
- Electric Brake: For added safety
- Variable Speed Control by Trigger: Allows precise control
- Forward/Reverse Rotation: For versatile use
- Compact Design: Overall length of just 117mm
Technical Specification
- Voltage: 18v
- Standard Bolt: M5-M16
- High Tensile Bolt: M5-M14
- Coarse Thread (length): 22 - 125 mm
- Max Fastening Torque: 175 Nm
- Battery Type: Lithium-ion
- Vibration, Fastening Bolt: 12.5 m/sec²
- Vibration K factor: 1.5 m/sec²
- Noise sound pressure: 96 dB(A)
- Noise sound power: 107 dB(A)
- Noise K factor: 3 dB(A)
- Net weight: 1.5 kg
- Impact Selection: 3 stage + Tek mode
- Driving Shank: 6.35 mm (1/4') Hex
- Blows per Minute (Hi): 0 - 3800 ipm
- Blows per Minute (Med): 0 - 2600 ipm
- Blows per Minute (Lo): 0 - 1100 ipm
- Machine Screw: M4-M8
- No Load Speed (hard/med/soft): 0-3600 / 2100 / 1100 rpm
The Makita DTD154Z 18V LXT Brushless Impact Driver is a robust and versatile tool, ideal for heavy-duty tasks. Despite its compact size of just 117mm, it delivers powerful performance with a high rotational speed of 3,600 rpm and a maximum torque of 175 Nm. The electronic 3-stage impact power selector and TEK mode prevent over-tightening, making it perfect for a variety of professional applications. As a Body Only tool, it offers flexibility for those who already own compatible batteries and chargers from the Makita LXT range.
Reviews


FAQs
The thing that sets Cordless Impact Drivers apart from standard drills and drivers is their torque. Impact Drivers typically drive screws with a great deal of force and typically much more force than a standard drill or driver.
Because they are such forceful tools, an Impact Driver is great if you need to drive large screws quickly, or if you need to do repetitive driving work. They can be used to make holes and another advantage of Impact Drivers is that they don’t require as much force from the operator as a standard driver would to prevent ‘cam out’.
When you use a standard drill to drive screws or make holes, you usually have to put your weight behind the tool and push to stop ‘cam out’ from happening. Because of the extra torque they provide, that isn’t required with an Impact Driver, meaning that you can use them one-handed in a way that would be difficult with a conventional drill. Impact Drivers are a lot more compact than a standard drill, so they can be really useful if you work in confined spaces.
Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.
Our range of Cordless Impact Drivers starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size. Professionals who need more power from their Impact Driver for working on site could also consider the 40v XGT range from Makita.
Additional FAQs
1. Is the battery included with the MAKITA DTD154Z?
- No, this is a Body Only tool and does not come with a battery or charger.
2. What is the maximum torque of the DTD154Z?
- The maximum torque is 175 Nm.
3. What is the purpose of the T-mode?
- The T-mode is designed for tightening self-drilling screws, preventing over-tightening and potential damage.
4. How many impact settings does the DTD154Z have?
- It features an electronic 3-stage impact power selection plus TEK mode.
5. Is the DTD154Z suitable for heavy-duty applications?
- Yes, with its high torque and multiple impact settings, it is ideal for heavy-duty tasks.
6. Does it have an LED light for visibility?
- Yes, it includes an LED job light to improve visibility in low-light conditions.
