MAKITA DJV180Z 18v LXT Jigsaw BODY ONLY
MAKITA DJV180Z 18v LXT Jigsaw BODY ONLY
FREE DELIVERY AVAILABLE*
In stock
Why Not Add
VAT (£10.78 ex VAT)
VAT (£6.45 ex VAT)
VAT (£5.97 ex VAT)
VAT (£2.04 ex VAT)
What’s Included
- This is a Body Only machine, which is not supplied with a battery or charger.
- This item may be supplied in unbranded packaging
- Number of Batteries Supplied: 0
- Voltage: 18v
Product Overview

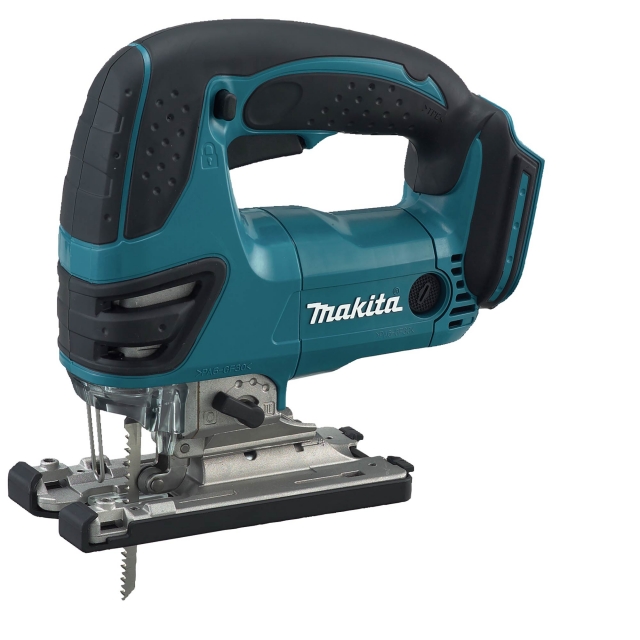

The Makita DJV180Z 18v Jigsaw is a powerful yet compact cordless cutting tool, part of the extensive Makita LXT 18V Lithium-Ion battery system. Engineered for smooth and efficient operation, it boasts a top-handle design and numerous user-centric features such as tool-less blade change and a bright LED job light. Its adjustable orbital action and variable speed control allow for optimised cutting in a multitude of materials, including wood, metal, and aluminium. As a 'body only' product, the DJV180Z offers a cost-effective way to expand an existing 18V LXT kit, as it is supplied without a battery or charger.
Part No: DJV180Z(MAKPDJV180Z)
Features & Benefits
- LXT Lithium-Ion Power: Utilises 18V LXT batteries (sold separately), offering a lightweight and high-power solution with extended run-time compared to older battery chemistries.
- High-Speed Cutting: Delivers a maximum stroke speed of 2,600 strokes per minute (spm) for fast, powerful material removal.
- Tool-Less Blade Change: Features a push-in lock system for quick and simple blade installation and removal without the need for additional tools.

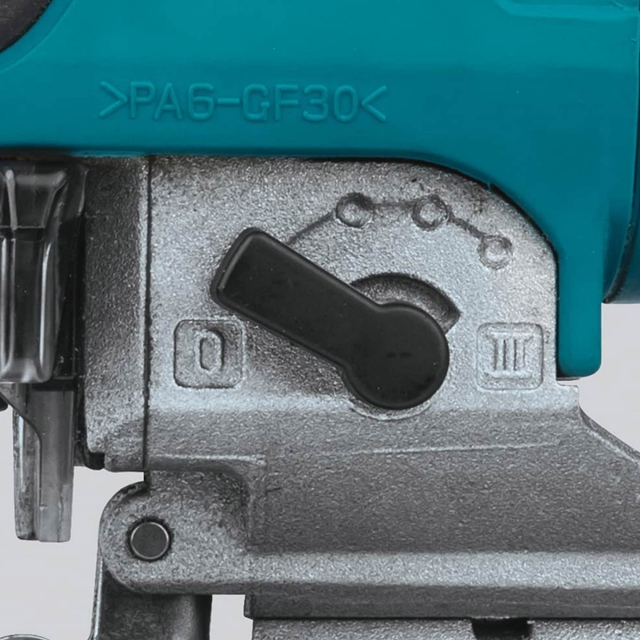

- 3-Stage Orbital Action: Includes three orbital settings plus straight cutting for use with various materials and applications, improving cutting efficiency and speed.
- LED Job Light: Illuminates the cutting line, enhancing visibility and ensuring accurate cuts, especially in darker working conditions.
- Ergonomic Design: Incorporates a rubberised handle grip for a more comfortable and firm hold, which helps to reduce operator fatigue.

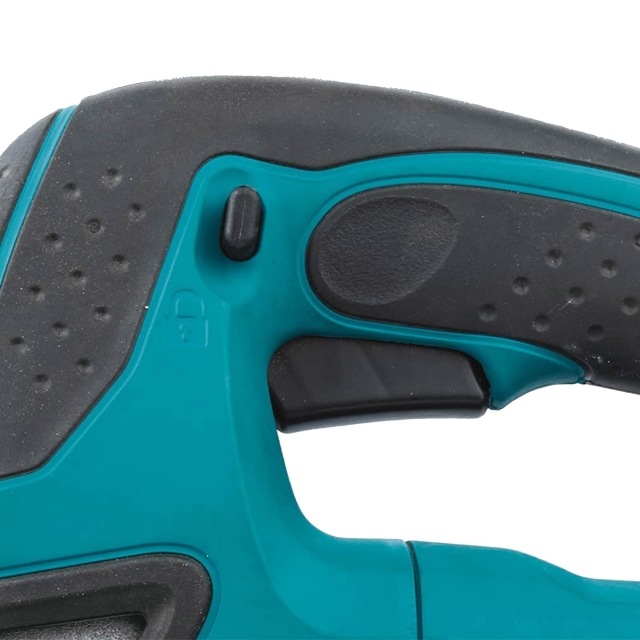

- Variable Speed Control: Speed is adjustable via a large, easy-to-operate trigger, which can be comfortably used even when wearing gloves.
- Electric Brake: Provides increased user safety by quickly stopping the blade action when the trigger is released.
- Soft Start Function: Ensures the blade starts smoothly, preventing sudden jolting or 'snagging' on the material for better control.
- Die-Cast Base: Fitted with a heavy-duty die-cast base for greater durability and a solid feel during use.
- Bevel Cutting: The base plate bevels 0° to 45° to the left and right for angled cuts, with a positive stop at 90°
- Dust Management: Includes a dust blower function to clear the cutting line and a dust nozzle for connection to an external vacuum system.
Technical Specification
- Voltage: 18v
- Strokes per Minute (SPM): 0 - 2600 min
- Length of Stroke: 26 mm
- Orbital Action: Yes
- Electronic brake: Yes
- Max. Bevel Range (Left): 0 - 45
- Max. Bevel Range (Right): 0 - 45
- Max. Cutting Capacity in Wood (90°): 135 mm
- Max. Cutting Capacity in Steel (90°): 10 mm
- Capacity Aluminium: 20 mm
- Vacuum cleaner connection in / out: 25 / 31 mm
- Vibration Level, Cutting Boards: 7.0 m/s²
- Vibration Uncertainty (K Factor), Cutting Boards: 1.5 m/s²
- Vibration Level, Cutting Sheet Metal: 3.5 m/s²
- Vibration Uncertainty (K Factor), Cutting Sheet Metal: 1.5 m/s²
- Sound Power Level (LWA): 95 dB(A)
- Sound Pressure Level (LpA): 87 dB(A)
- Noise Uncertainty (K Factor): 3 dB(A)
- Product Dimensions (L x W x H): 257 x 73 x 208 mm
- Tool weight with battery: 2,7 - 3,0 kg
Our Expert Says…
The Makita DJV180Z is a compact and lightweight jigsaw powered by Makita lithium-ion batteries. This 18v LXT lithium-ion cordless jigsaw is the replacement model for the Makita BJV180Z. Easy to use and double insulated, the DJV180Z is the perfect blend of power and portability.
This is a Makita Body Only tool which doesn't come with a battery and charger.
FAQs
Cordless Jigsaws are great when you need to make detailed or specific cuts in wood, but need to be mobile or don’t have easy access to a power source. When choosing a Cordless Jigsaw, consider what you’ll be using it for. A good rule of thumb is that as the material you’re cutting gets harder and/or thicker, the more power you’ll need. Speed, which is measured either in RPM (rotations per minute) or SPM (strokes per minute), will either be fixed or variable. A fixed speed jigsaw will provide the same level of output at all times, which might not be ideal. Some materials will scorch if cut by a very fast blade, while if you are scrolling as you cut, a slower speed is what you need. Therefore, using a variable speed jigsaw can be very helpful.
Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.
Our range of Cordless Jigsaws starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size.
