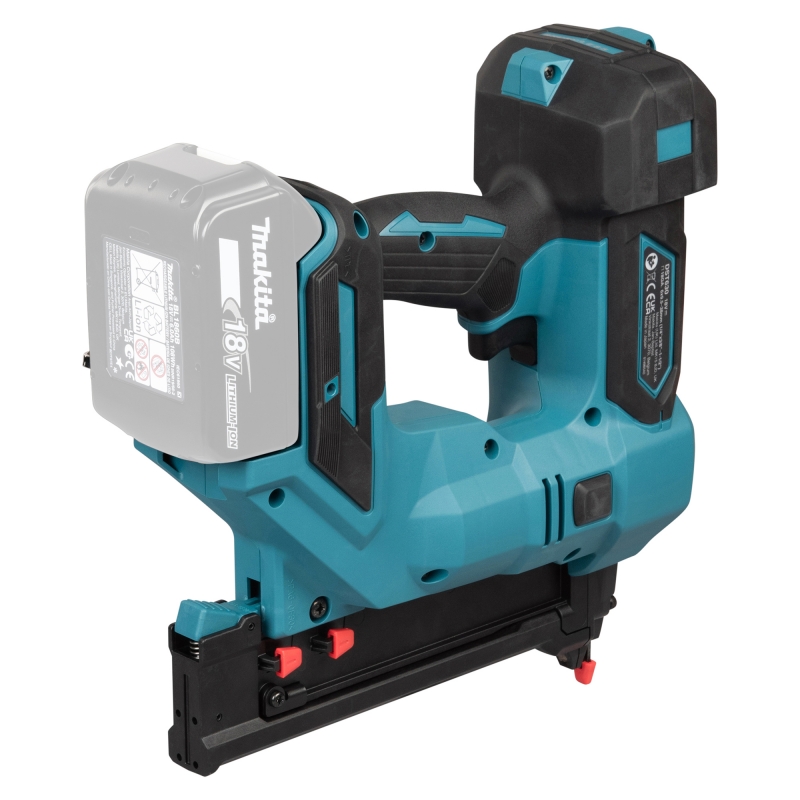

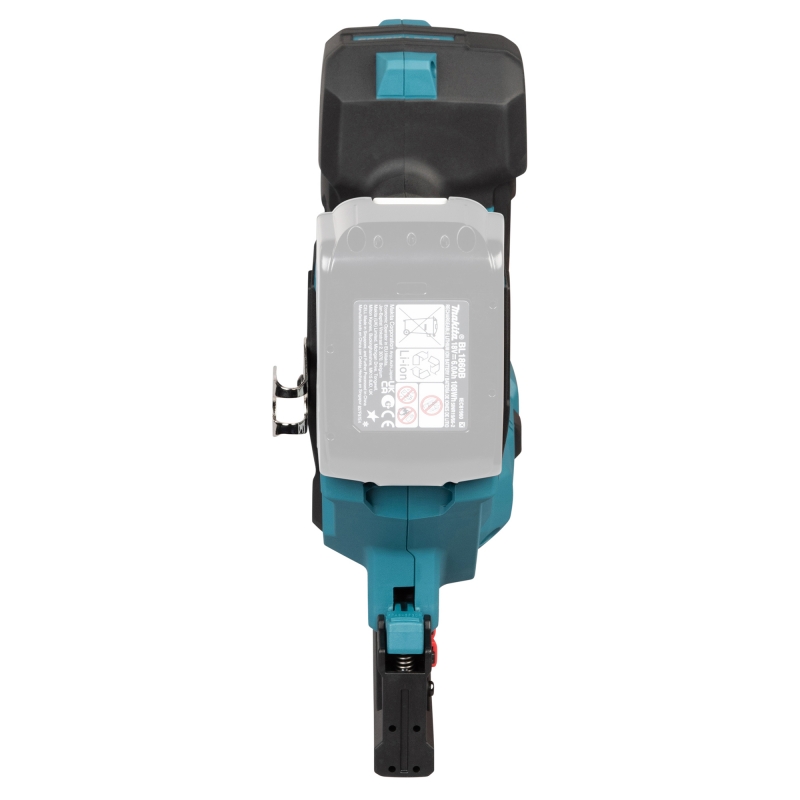

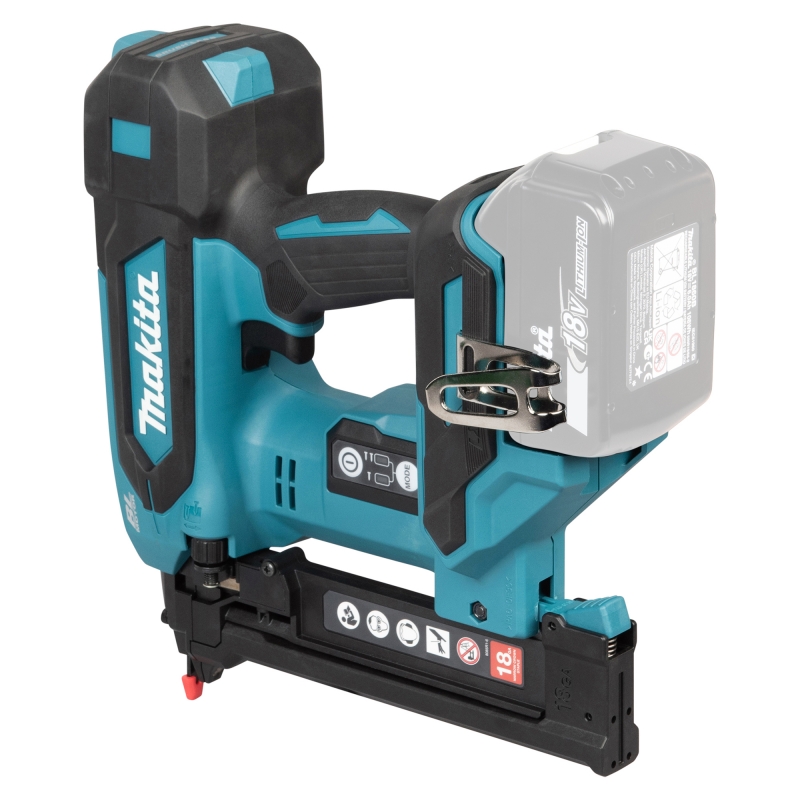

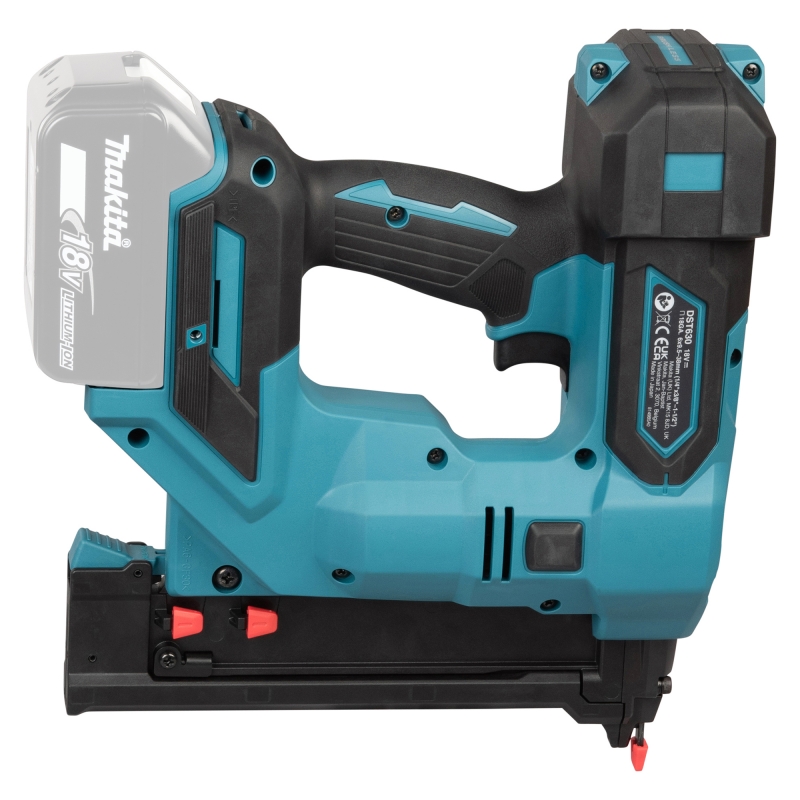

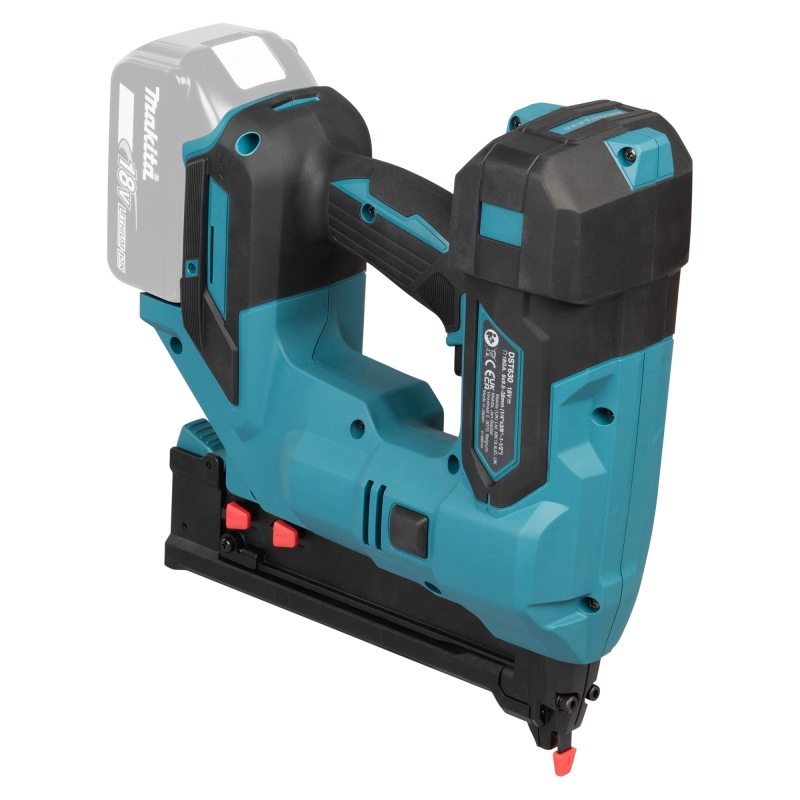

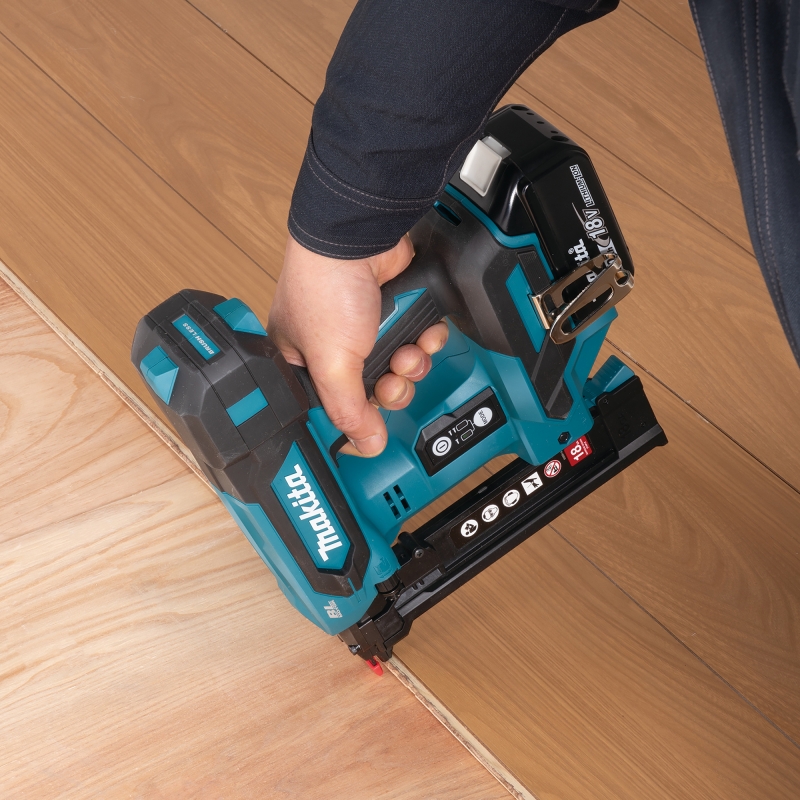

MAKITA DST630Z 18v BL Narrow Crown Stapler BODY ONLY

The Makita DST630Z is a high-performance 18V LXT cordless narrow crown stapler engineered to provide a pneumatic-style driving experience without the constraints of hoses or compressors. Utilising a sophisticated pneumatic spring mechanism, this tool delivers rapid, consistent firing into dense materials such as laminated veneer lumber (LVL). The integration of a brushless motor ensures high energy efficiency and extended runtimes, while the slim nose design allows for precise staple placement in narrow gaps. Equipped with advanced protection technologies and user-focused firing modes, it serves as a reliable solution for high-volume interior finishing and cabinetry tasks.

Part No: DST630Z(MAKPDST630Z)

• Brushless Motor: Delivers superior power and efficiency, reducing heat build-up and extending the service life of the tool.
• Pneumatic Spring Mechanism: Provides a smooth, low-recoil firing action that mimics the feel of professional air-powered equipment.
• Rapid Firing Speed: Capable of driving over 6 staples per second for increased productivity during repetitive fastening.

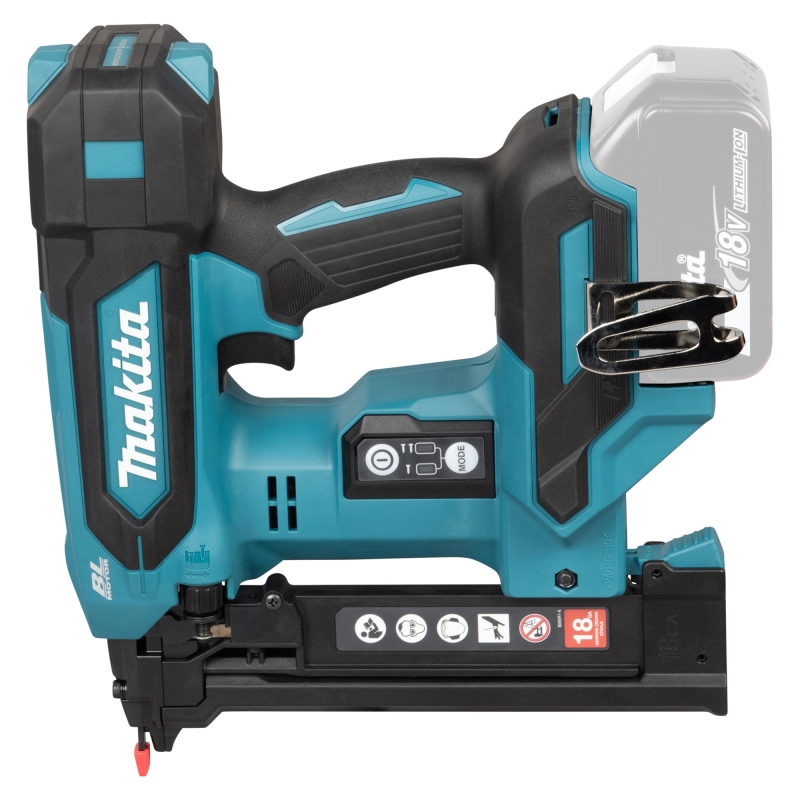

• Dual Firing Modes: Features a selection switch to alternate between sequential mode for precision and bump-fire for speed.

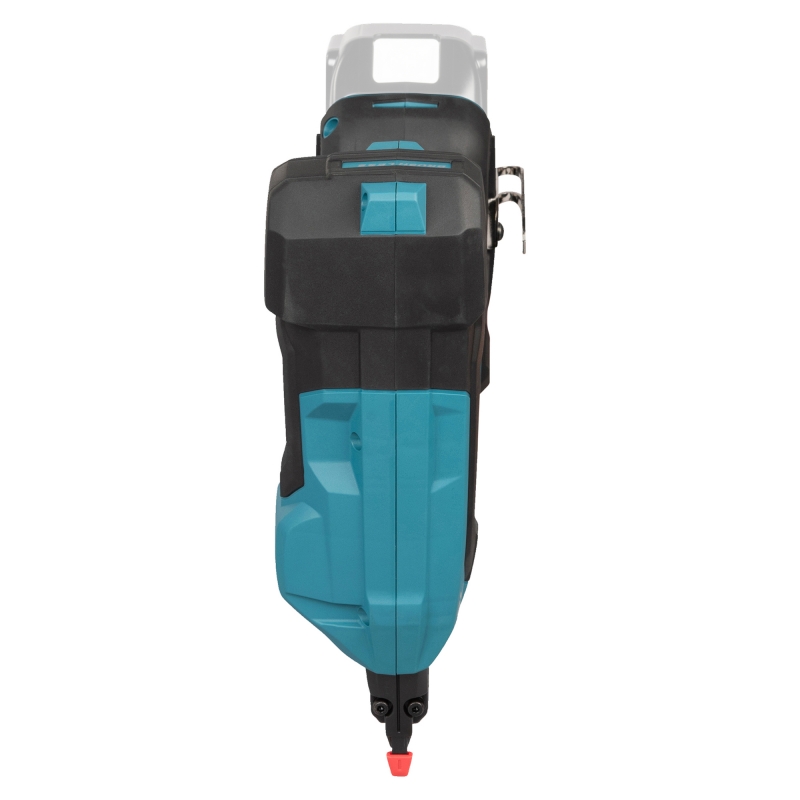

• Slim Nose Design: Enhanced visibility and a compact tip allow for accurate staple placement in corners and tight seams.
• Tool-Less Jam Clearing: Enables quick removal of stuck fasteners without requiring additional tools, minimising downtime.
• Anti-Dry Fire Mechanism: Stops the tool from firing when the magazine is nearly empty, protecting the workpiece and internal components.
• Depth Adjustment Dial: Allows for tool-free fine-tuning of the staple depth to achieve flush or countersunk finishes.
• Extreme Protection Technology (XPT): Engineered to provide increased resistance against dust and moisture in harsh environments.

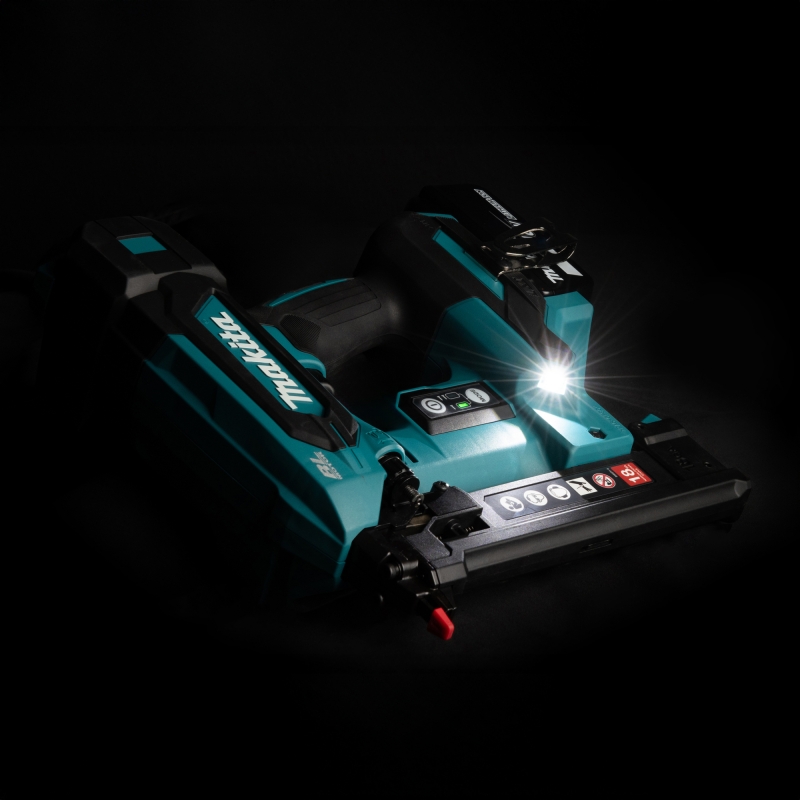

• Integrated LED Light: Illuminates the immediate workspace to assist in low-light conditions.

• Voltage: 18 V
• Fastener Gauge: 18 Ga
• Staple Crown Width: 5.7 - 6.35 mm
• Staple range: 9.5 - 38 mm
• Fastener Magazine Capacity: 110
• Sound Pressure Level (LpA): 79 dB(A)
• Noise Uncertainty (K Factor): 3 dB(A)
• Vibration Level (3 axes): 2.5 m/s²
• Vibration Uncertainty (K Factor): 1.5 m/s²
• Tool weight with battery: 2.8 - 3.1 kg
• Staple measures: 5.7 - 6.35 x 9.5 - 38 mm
• Depth Adjustment: Yes
• Product Dimensions (L x W x H): 246 x 96 x 282 mm
• Product net weight: 2.5 kg
