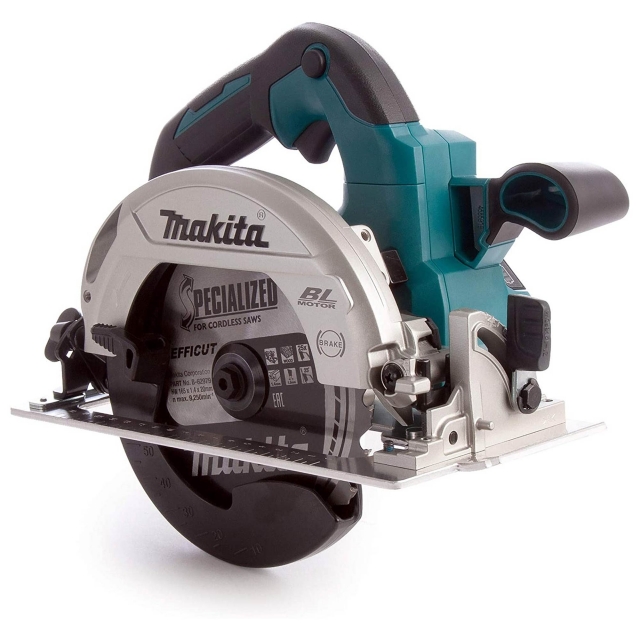

MAKITA DHS660Z 18v Brushless 165mm Circ Saw BODY ONLY

DHS660Z Product Overview

The DHS660Z is a compact and lightweight, cordless Circular Saw, powered by 18V Li-ion LXT slide type battery (not included), with soft start, to supply energy to the brushless motor to deliver up to 5,000 rpm for smooth cutting. The brushless motor eliminates carbon brushes to enable the motor to run cooler and more efficiently for a longer life. Soft start suppresses start-up of the DHS660Z for greater control and accuracy.

Part No: DHS660Z(MAKPDHS660Z)

DHS660Z Technical Specifications

  • Battery Type: Lithium-ion
  • Voltage: 18v
  • Blade Diameter: 165 mm
  • Bore Diameter: 20 mm
  • Max Cut @ 0°: 57 mm
  • Max Cut @ 45°: 41 mm
  • Max Cut @ 50°: 37 mm
  • Noise sound pressure: 93 dB(A)
  • Noise sound power: 104 dB(A)
  • Noise K factor: 3 dB(A)
  • No Load Speed: 5,000 rpm
  • Vibration K factor: 1.5 m/sec²
  • Vibration: Cutting Wood: 2.5 m/sec²
  • Net weight: 2.9 - 3.2 kg

MAKITA DHS660Z 18v Brushless 165mm Circ Saw BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
low stock Hurry, low stock

DHS660Z Key Features

  • Electric brake
  • Soft start
  • LED job light
  • Aluminium base with 45 and 50 degrees bevel cutting capacity
  • Compact and lightweight design
  • Rear-facing exhaust port
  • Lock-off button for safe operation
  • Blower function - blows sawdust off the line cut
  • Automatic Torque Drive Technology: Automatically changes the cutting speed according to load condition for optimum operation
  • Indication lamp for ADT: High torque = green light on, High speed = lights out, Overload alert = blinks green.
  • Improved visibility of blade tip
  • Easy-to-read scale markings for easier adjustments

DHS660Z What’s Included

  • TCT saw blade
  • Hex wrench
  • Rip fence (Guide rule)
  • Dust nozzle
  • This is a Body Only machine, which is not supplied with a battery or charger.
  • This item may be supplied in unbranded packaging
  • Number of Batteries Supplied: 0
  • Voltage: 18v
  • Type: Brushless
  • Size: 165mm
ExpertOur Expert Says…

The DHS660Z is a Makita Cordless Saw equipped with an aluminium base with 45 and 50° bevel cutting capacity plus an LED job light to illuminate the work area. The rear facing exhaust port and a blower function blows sawdust away from the cutting line. There is an easy to operate lock off button for safe operation and rubberised levers for quick depth and bevel adjustments. There is an easy to read scale marking for easier adjustments. The DHS660Z features Automatic Torque Drive Technology (ADT) which automatically changes the cutting speed according to the condition of the load.

This is a Makita Body Only tool and doesn't come with a battery and charger.

Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Circular Saw?

Cordless Circular Saws are powerful tools which enable you to work around any home or jobsite without the potential trip hazard associated with power cables. However, it is important to choose the right saw for the work you’ll be doing with it. There are a lot of things to think about, including blade size as this affects cutting capacity and maximum cutting depth, the bevels at which the saw operates and the speed at which the blade moves, as the greater the revolutions per minute (RPM) a saw provides, the greater control you have over the cut.
Our range of Cordless Circular Saws covers a range of blade sizes, from 85 mm through to 190 mm. Larger blades offer greater cutting capacity and a larger maximum cutting depth. It’s important to think about the blade(s) supplied and / or available for the saw you’re looking to buy. As you’d expect, we have a range of Circular Saw Blades which covers all sorts of sizes and job types.
It’s also worth thinking about the kind of cuts you will be making. Some saws are better suited to straight cuts, others work better at a 45-degree angle, so it’s well worth checking the product specification before making a buying decision.

Which is better: brushless or brushed motors?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

Our range of Cordless Circular Saws starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size. Professionals who need more power from their Circular Saw for working on site could also consider the 40v XGT range from Makita or DeWalt’s 54v FLEXVOLT machines.
