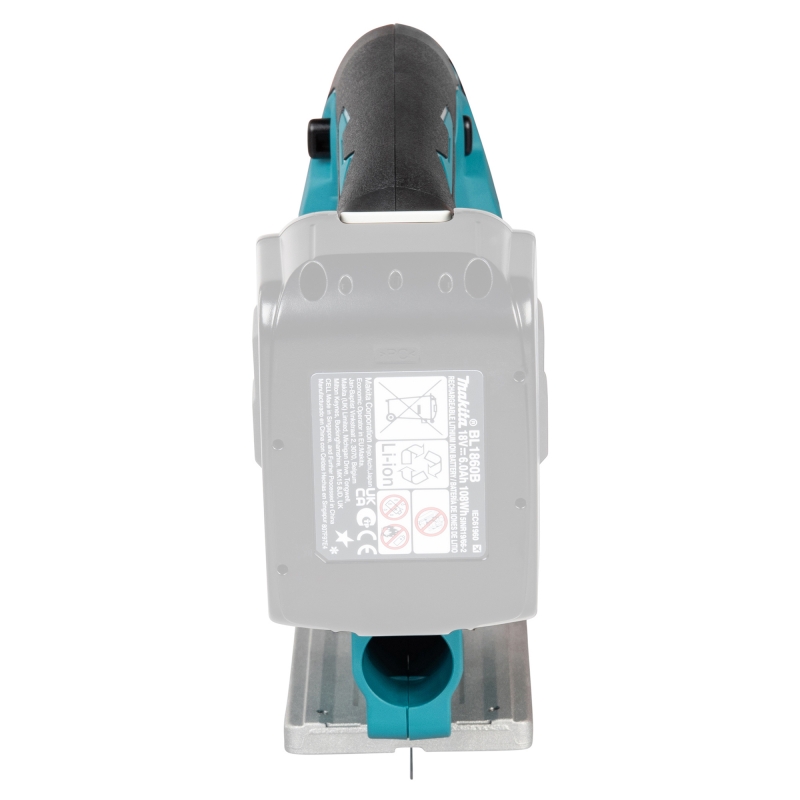

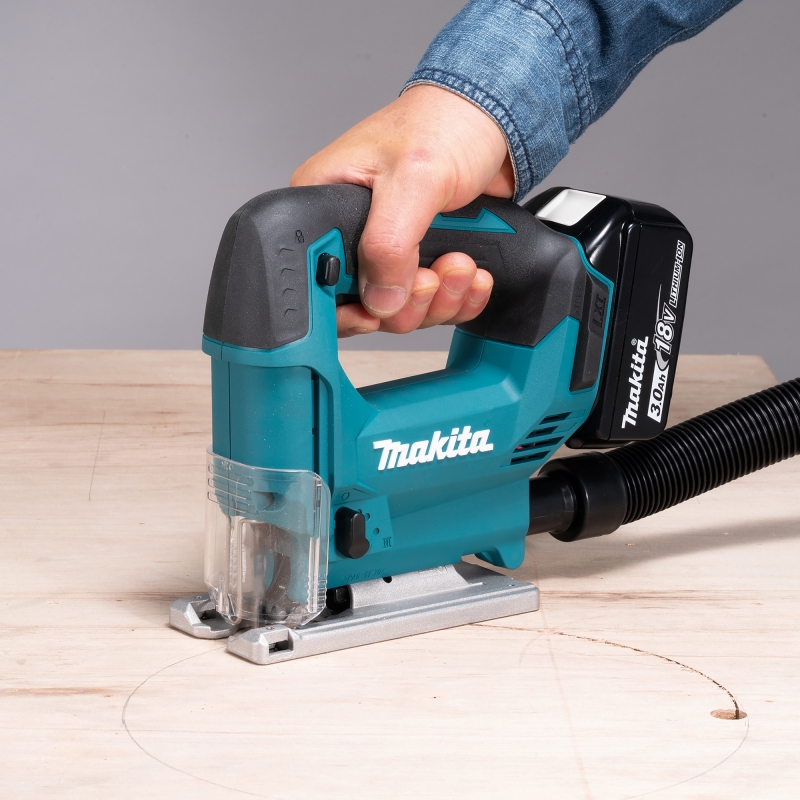

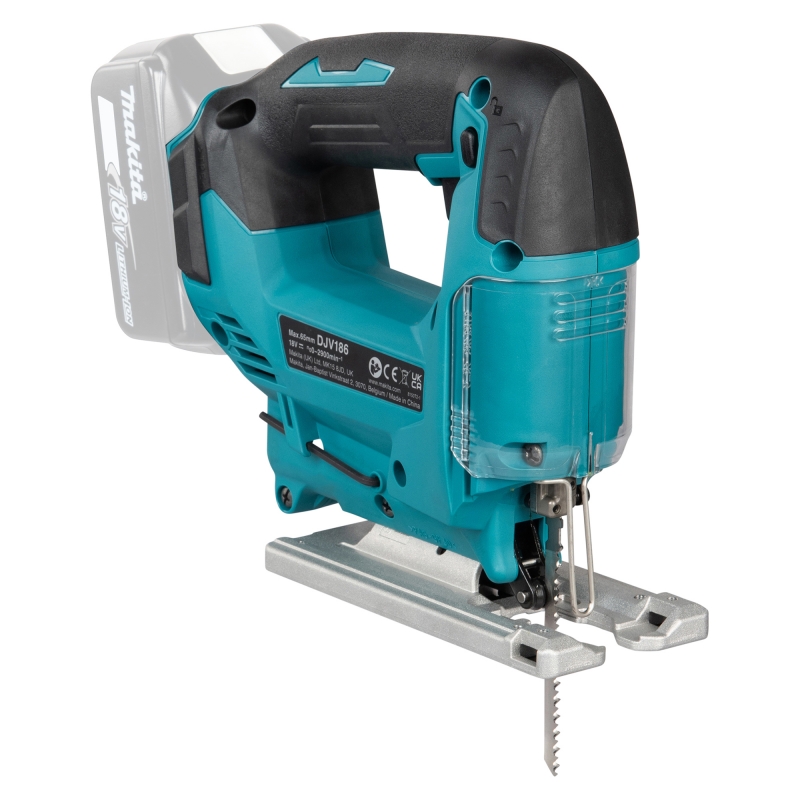

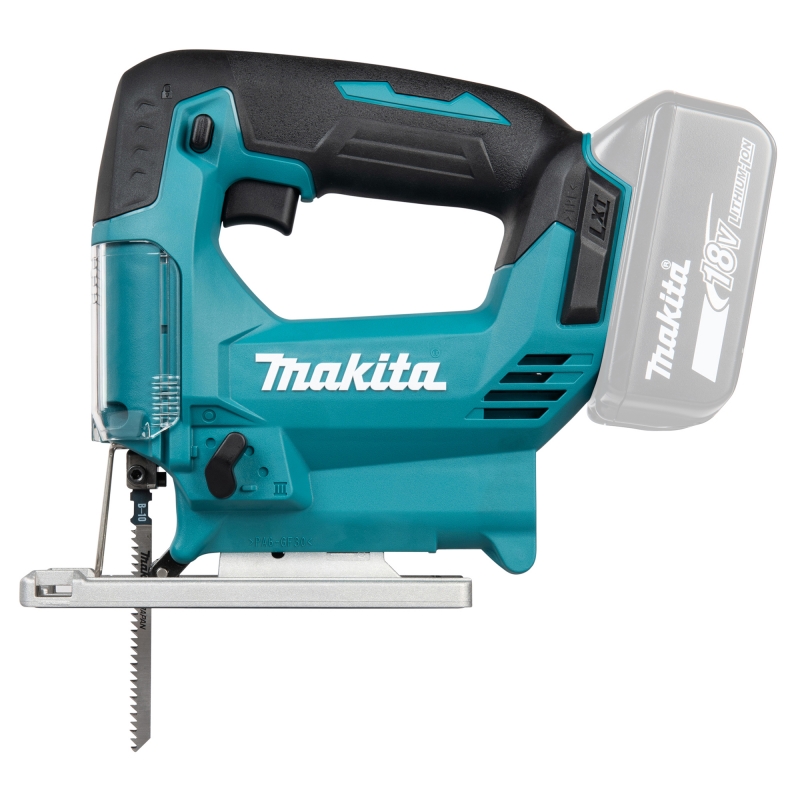

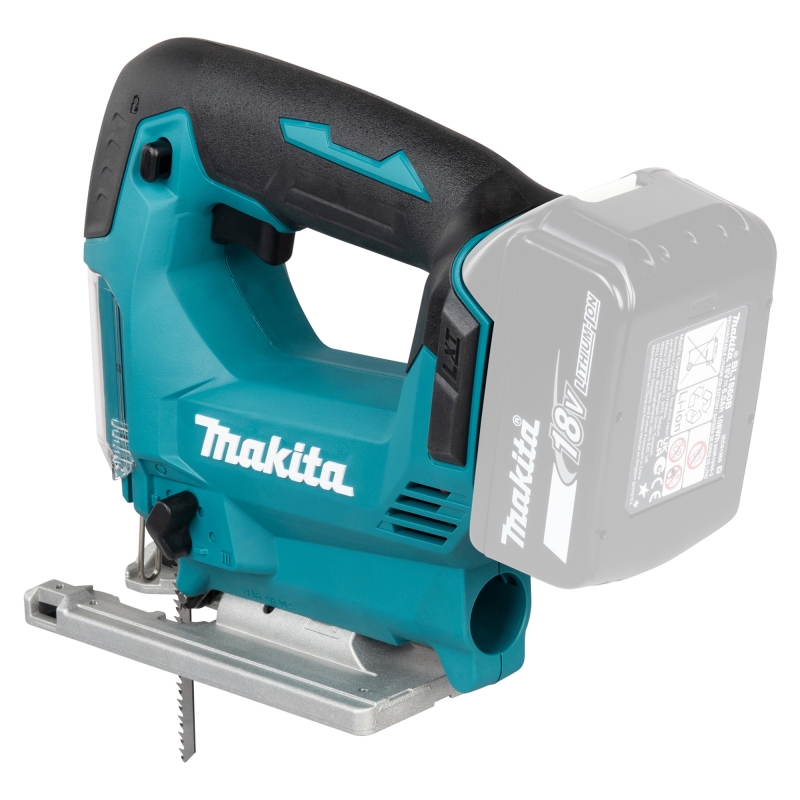

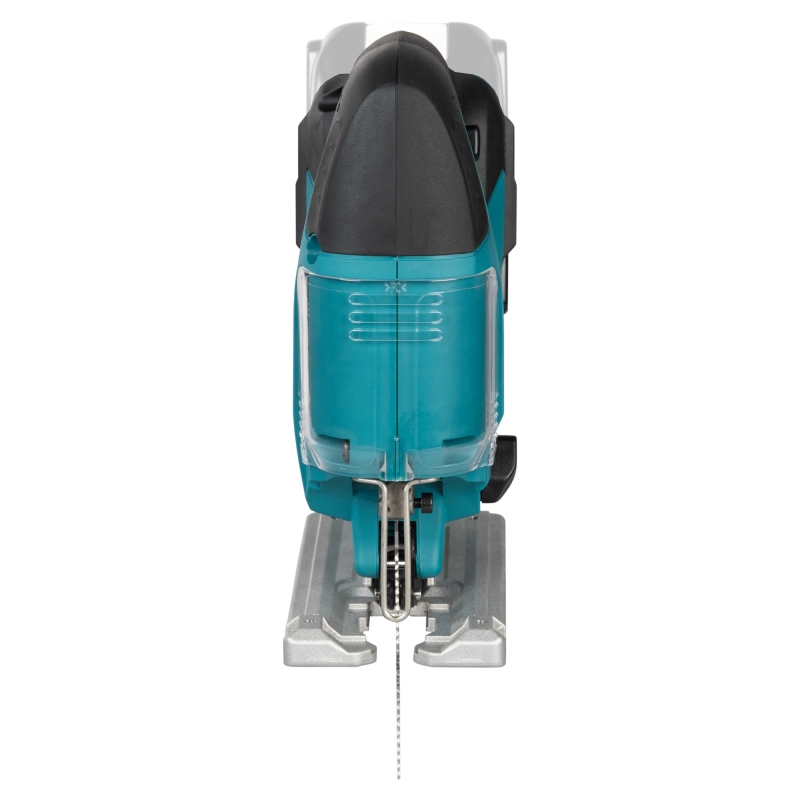

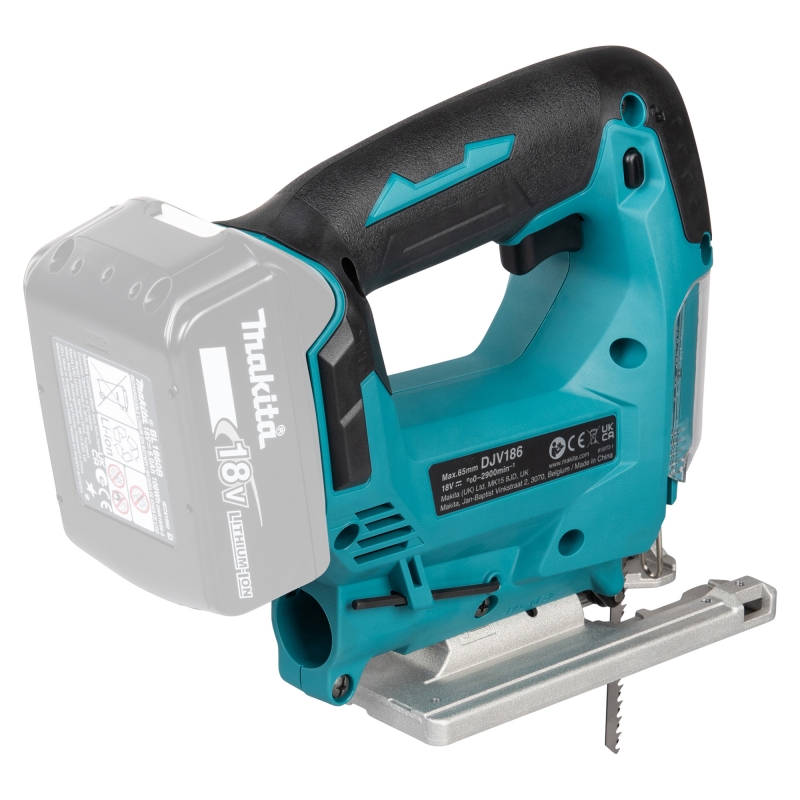

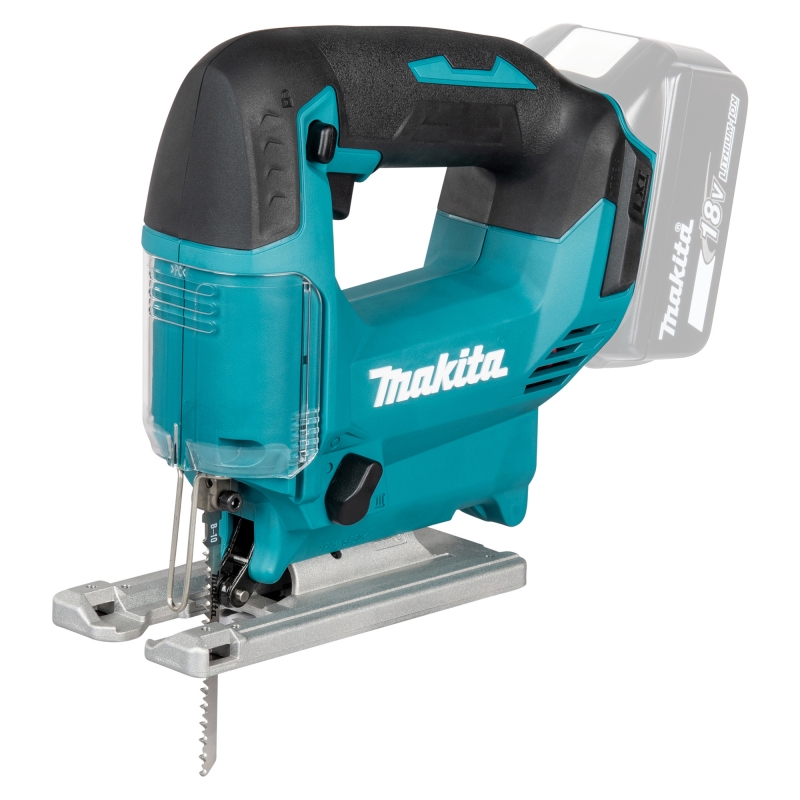

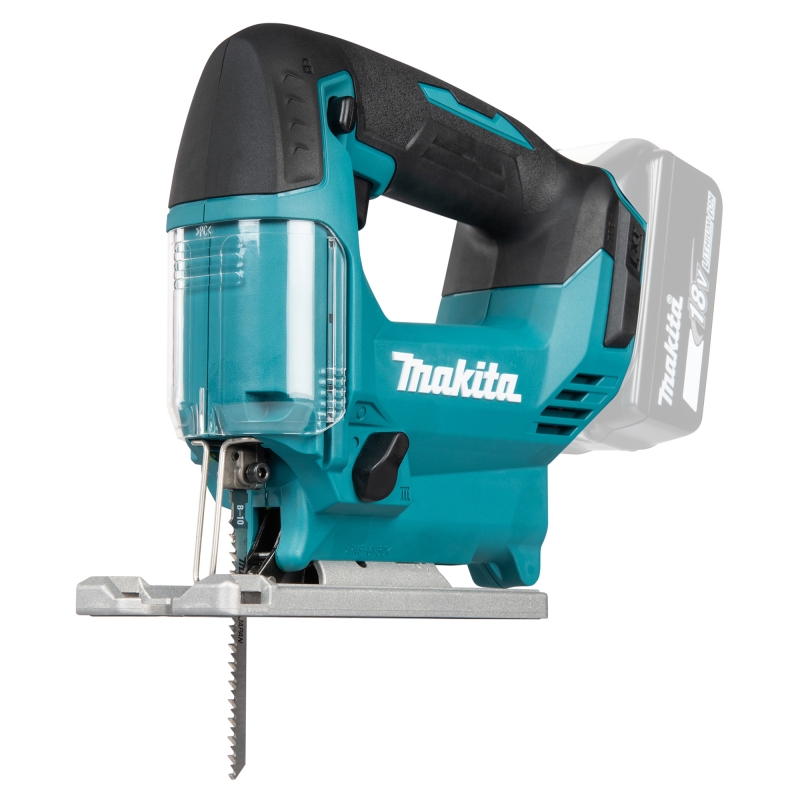

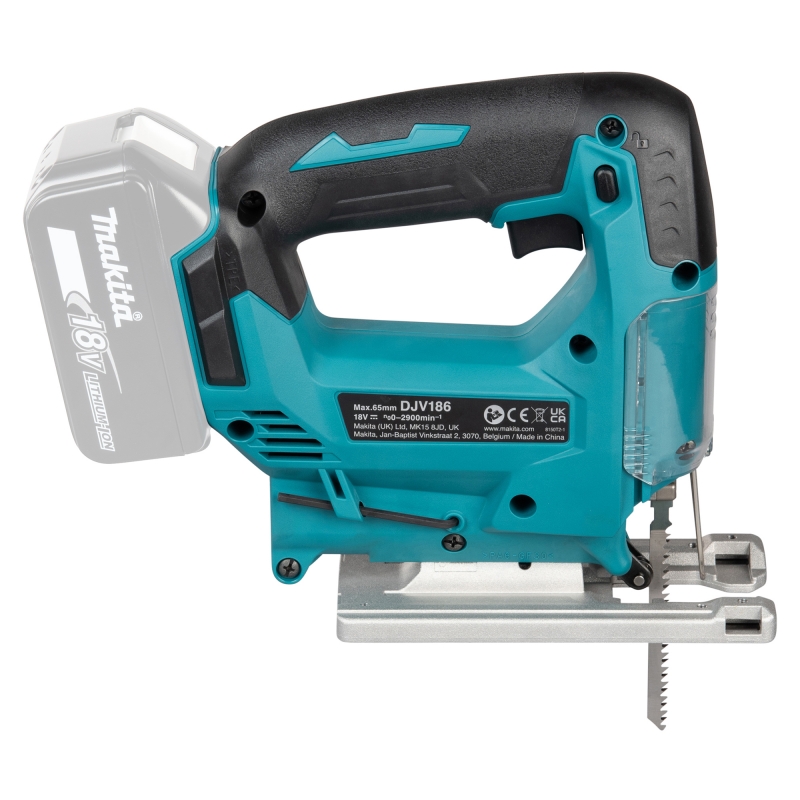

MAKITA DJV186Z 18v LXT Jigsaw BODY ONLY

The Makita DJV186Z 18v LXT Jigsaw is a streamlined, cordless cutting tool engineered for precision and agility. Powered by the renowned 18v Lithium-Ion battery platform, this unit features a top-handle "D" grip design that offers superior control and comfort during complex curved cuts or straight rip sawing. Its compact footprint and lightweight construction make it an excellent choice for work in restricted spaces, while the integrated electric brake ensures immediate blade stoppage for enhanced safety. With a stroke rate of up to 2,900 spm and a dedicated pendulum action, this machine balances rapid material removal with the delicacy required for fine finishing work across timber, metal, and synthetic materials.

Part No: DJV186Z(MAKPDJV186Z)

• High-Performance Cutting: Delivers a maximum of 2,900 strokes per minute, allowing for efficient progress through various densities.
• Triple Orbital Settings: Includes three distinct pendulum stages plus a straight-cut mode to optimise the aggressive nature of the cut based on the material.
• Variable Speed Trigger: Allows the operator to modulate the speed instantly, providing total command over the blade for intricate starts and delicate finishes.
• Precision Beveling: The sturdy base plate tilts up to 45 degrees both left and right, enabling accurate mitre and bevel cuts for joinery.
• User Safety: Equipped with an electronic brake that halts the blade movement as soon as the trigger is released.
• Ergonomic Handling: Features a slim, rubberised grip to reduce vibration and hand fatigue during long periods of operation.
• Tool-Less Blade Change: Utilises a bayonet (T-shank) holder for rapid, secure blade swaps without the need for additional hand tools.
• Dust Management: Designed with a dust extraction port to keep the workspace clear and the cut line visible when connected to a vacuum system.

• Voltage: 18 V
• Strokes per Minute (SPM): 0 - 2900 min
• Length of Stroke: 18 mm
• Max. Cutting Capacity in Wood (90°): 65 mm
• Max. Cutting Capacity in Steel (90°): 6 mm
• Max. Bevel Range (Left): 0 - 45
• Capacity Aluminium: 10 mm
• Orbital Action: Yes
• Electronic brake: Yes
• Vibration Level, Cutting Boards: 7.5 m/s²
• Vibration Uncertainty (K Factor), Cutting Boards: 1.5 m/s²
• Vibration Level. Cutting Sheet Metal: 4.2 m/s²
• Vibration Uncertainty (K Factor), Cutting Sheet Metal: 1.5 m/s²
• Sound Power Level (LWA): 93 dB(A)
• Sound Pressure Level (LpA): 85 dB(A)
• Noise Uncertainty (K Factor): 3 dB(A)
• Max. Bevel Range (Right): 0 - 45
• Product Dimensions (L x W x H): 257 x 81 x 196 mm
• Tool weight with battery: 1.9 - 2.2 kg
• Product net weight: 1.6 kg
