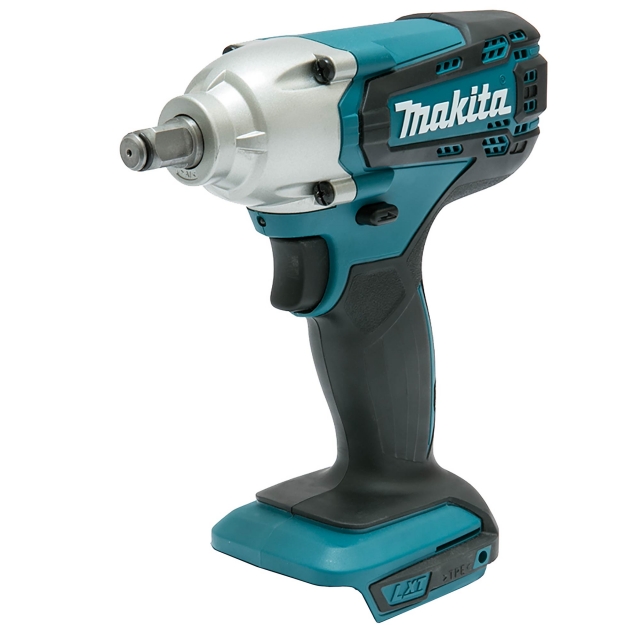

MAKITA DTW190Z 18v Impact Wrench BODY ONLY

DTW190Z Product Overview

The Makita DTW190 is an entry level 18v cordless Impact Wrench with an optimal tightening torque of 190 Nm

Part No: DTW190Z(MAKPDTW190Z)

DTW190Z Technical Specifications

  • Voltage: 18 v
  • Battery Type: Lithium-ion
  • Body Only Machine: Yes
  • Driving Shank: 1/2" Square
  • Impacts: 0 - 3,000 ipm
  • No Load Speed: 0 - 2,300 rpm
  • Standard Bolt: M8 - M16
  • High Tensile Bolt: M8 - M12
  • Max Fastening Torque: 190 Nm
  • Noise Sound Pressure: 94 dB(A)
  • Noise Sound Power: 105 dB(A)
  • Noise K Factor: 3 dB(A)
  • Vibration: Fastening Bolt: 8.5 m/s²
  • Vibration K Factor: 1.5 m/s²
  • Net Weight: 1.7 kg

MAKITA DTW190Z 18v Impact Wrench BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
low stock Hurry, low stock

DTW190Z Key Features

  • Electric brake
  • Variable speed control trigger.
  • Forward/reverse rotation

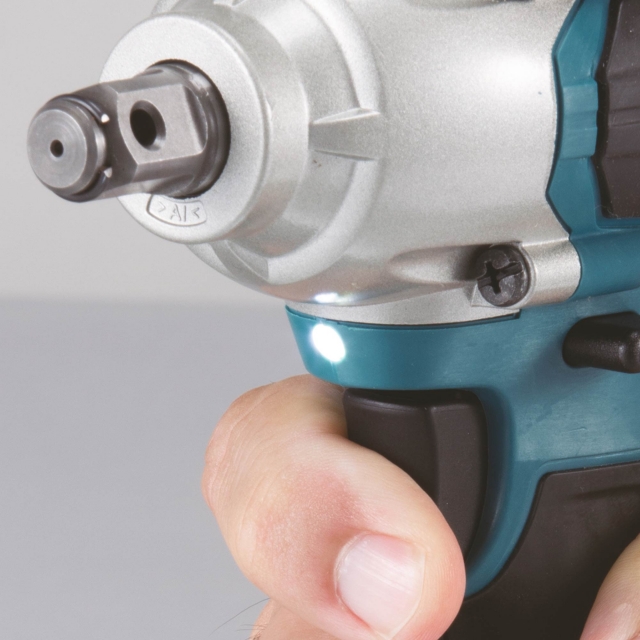

  • LED job light
  • Equipped with Battery protection circuit: designed to protect the battery from damages due to overdischarge, high temperature or overload current.
  • Ergonomically designed handle with rubberised soft grip fits your hand perfectly to provide maximum control and comfort.

DTW190Z What’s Included

  • This is a Body Only machine, which is not supplied with a battery or charger.
  • This item may be supplied in unbranded packaging
  • Number of Batteries Supplied: 0
  • Voltage: 18v
ExpertOur Expert Says…

The DTW190Z is a cordless impact wrench, powered by an 18v Li-ion battery to deliver up to 190 Nm maximum tightening torque and 320 Nm nut busting torque. It offers variable speed control by trigger for precise fastening, forward / reverse rotation, an electric brake for increased operator safety and built in LED light with pre-glow to illuminate the work area. The DTW190 is ideal for car wheel bolts.

This is a Makita Body Only tool, so is supplied without a battery and charger.

Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Impact Wrench?

Cordless Impact Wrenches are used for undoing and tightening bolts when no other tool can provide enough force. Therefore, you need to choose an Impact Driver which has the right level of power for the work it will be doing. This is measured by torque, which is then measured in Newton-metres (Nm). The higher the torque, the more power you have at your disposal.
Impact wrenches can use extra power to undo particularly troublesome nuts. This is known as ‘Nut-busting torque’ and the machine will apply it automatically. The more power a machine has, the more torque it can generate. As an example, some of the 12v Impact Wrenches in our range generate a Nut-busting torque of 290 Nm but the new 40v tools can produce up to 2,050 Nm of Nut-busting torque.
Cordless Impact Wrenches are extremely powerful, so be aware of the risks of bolts shearing off or material becoming damaged during use.

Which is better: brushless or brushed motors?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

Our range of Cordless Impact Wrenches starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size. Professionals who need more power from their Impact Wrench for working on site could also consider the 40v XGT range from Makita.
