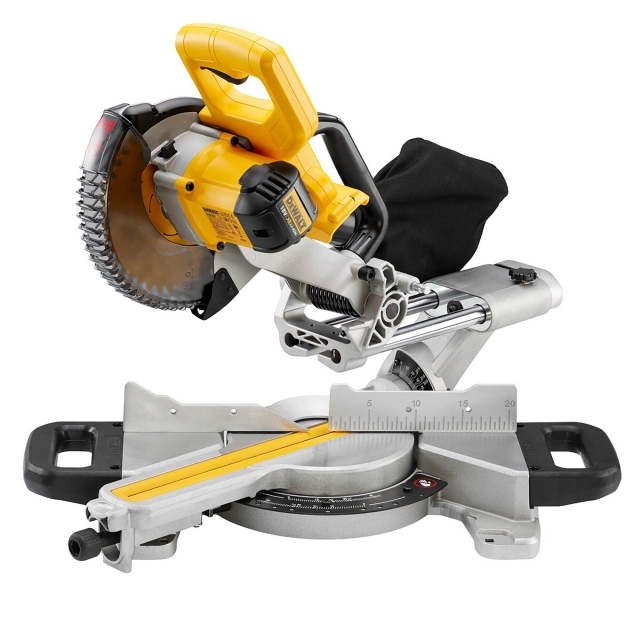

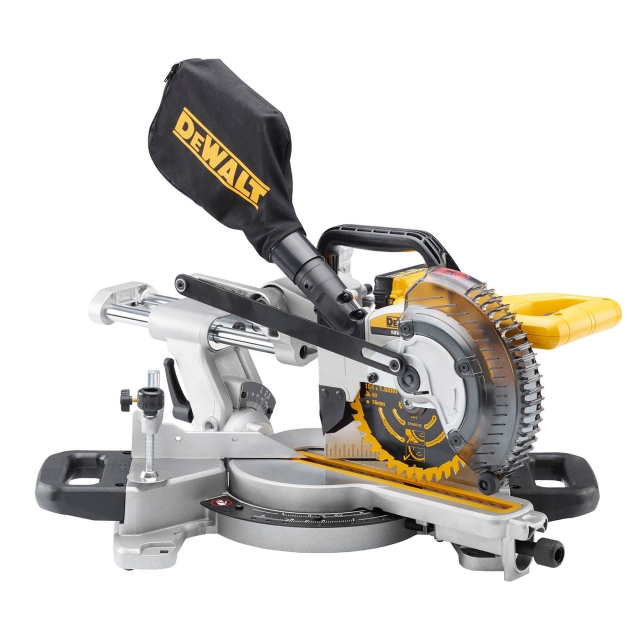

DCS365N-XJ Product Overview

The DeWalt DCS365 offers professionals superior cordless performance compared to previous models. The built-in XPS shadow cutline indicator provides fast and precise alignment of the blade while illuminating the workpiece with the integrated LED light. This Cordless Mitre Saw has a lightweight and compact design for added convenience and ease of portability when transporting the tool between jobsite locations. Simple to operate, and with a powerful blade rotation of 3,750 rpm, giving the feeling of using a mains connected tool, operators can make up to 250 cuts per charge with an XR 18v Lithium-ion 4 ah battery. This is sufficient to complete a whole days work with maximum productivity and efficiency. Owners equally benefit from a 250mm slide and minimum 50mm height cutting capacity.

Part No: DCS365N-XJ(DEWPDCS365N)

DCS365N-XJ Technical Specifications

  • Power Output: 590 Watt
  • Voltage: 18 v
  • Battery Chemistry: XR Li-Ion
  • Blade Speed: 3750 rpm
  • Blade Diameter: 184 mm
  • Blade Bore: 16 mm
  • Bevel Capacity: 48 °
  • Mitre Capacity [right/left]: 48/48 °
  • Cutting Capacity at 90°/90° (W x H): 250 x 50 mm
  • Cutting Capacity at 45°/90° (W x H): 176 x 50 mm
  • Cutting Capacity at 90°/45° (W x H): 250 x 35 mm
  • Max. Cutting Capacity at 45°/45°: 176 x 35 mm
  • Weight: 11.5 kg
  • Depth: 590 mm
  • Length: 490 mm
  • Height: 590 mm
  • Hand/Arm Vibration - Cutting Wood: 2.5 m/s²
  • Uncertainty K 1 (Vibration): 1.5 m/s²
  • Sound Power: 93 dB(A)
  • Sound Power Uncertainty: 2 dB(A)
  • Sound Pressure: 88 dB(A)
  • Sound Pressure Uncertainty: 2 dB(A)

DEWALT DCS365N 18v 184mm Mitre Saw BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
unavailable Sorry, we are out of stock

DCS365N-XJ Key Features

  • Double insulated DEWALT 65 mm fan cooled motor with replaceable brushes for maximum power in hard wood
  • New mitre angle adjustment system provides accurate and consistent setting of mitre angles between 0 and 48° right and 0° and 48° left
  • The dual fence mechanism gives maximum support in large material cuts at any angle or combination of angles
  • Horizontal rails create additional capacity for larger materials
  • The aluminium base construction provides stability to the saw while still retaining its portability
  • Mitre and bevel angle detents for quick and easy set up of the saw
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity

DCS365N-XJ What’s Included

  • This is a Body Only machine, which is not supplied with a battery or charger.
  • This item may be supplied in unbranded packaging
  • Number of Batteries Supplied: 0
  • Voltage: 18v
  • Size: 184mm
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Mitre Saw?

Cordless Mitre Saws are an essential for anyone who regularly needs to make precise, accurate cuts. The trick is to identify which machine best meets your needs. There is a lot to consider in terms of the features available, including the maximum mitre range, which determines the range of angles you can cut with the tool, the maximum bevel range, which indicates how much the saw can tilt either to the left and / or the right, which reduces the need to turn your workpiece while cutting.

The blade diameter and bore are important considerations, as these will impact on the cuts you can make and the range of additional blades you can purchase for your Mitre Saw. In addition, you should consider the speed at which the blade rotates and the weight of the tool, as these will impact on the control you have over the saw when using it.

Which is better: brushless or brushed saws?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.

However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

The voltage of your Cordless Mitre Saw will be influenced by how and when you will make most use of it. For professionals in the trades, the Makita 40v Max range provides up to 4,800 rpm plus a cutting capacity of 70 x 312 mm and the DeWalt 54v FlexVolt range will give you 6,300 rpm of No Load Speed and a cutting capacity of 62 x 270 mm. However, the 40v and 54v batteries are larger and heavier than an 18v equivalent, which needs to be taken into account if you’ll be moving the Mitre Saw regularly.
