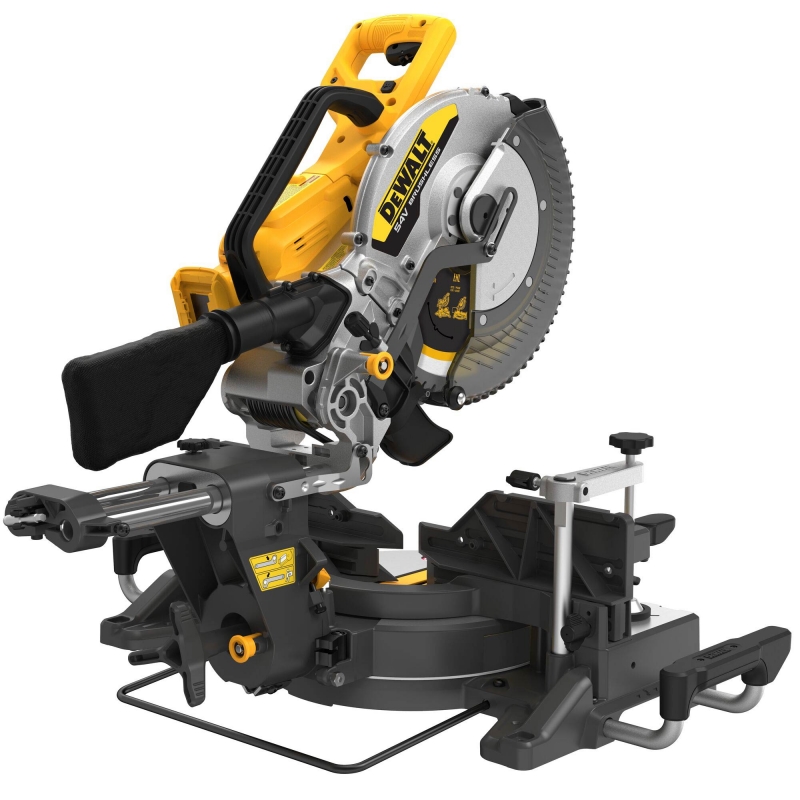

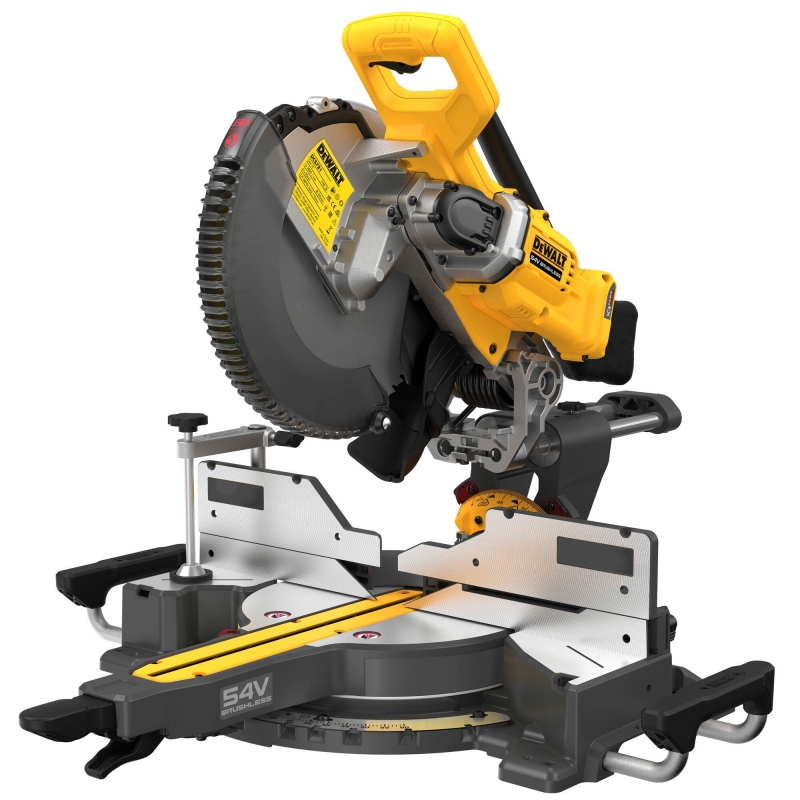

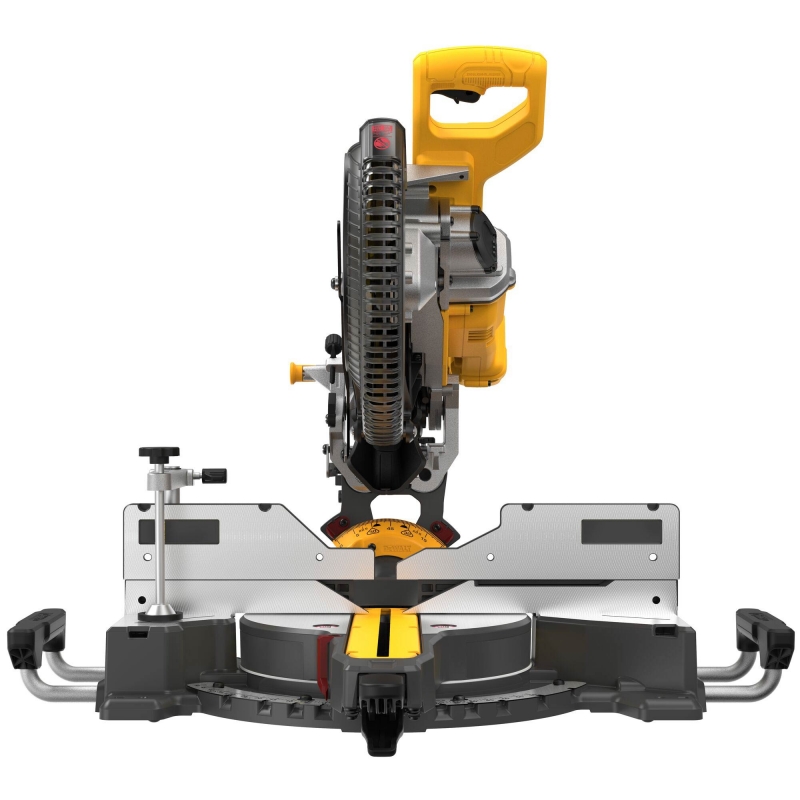

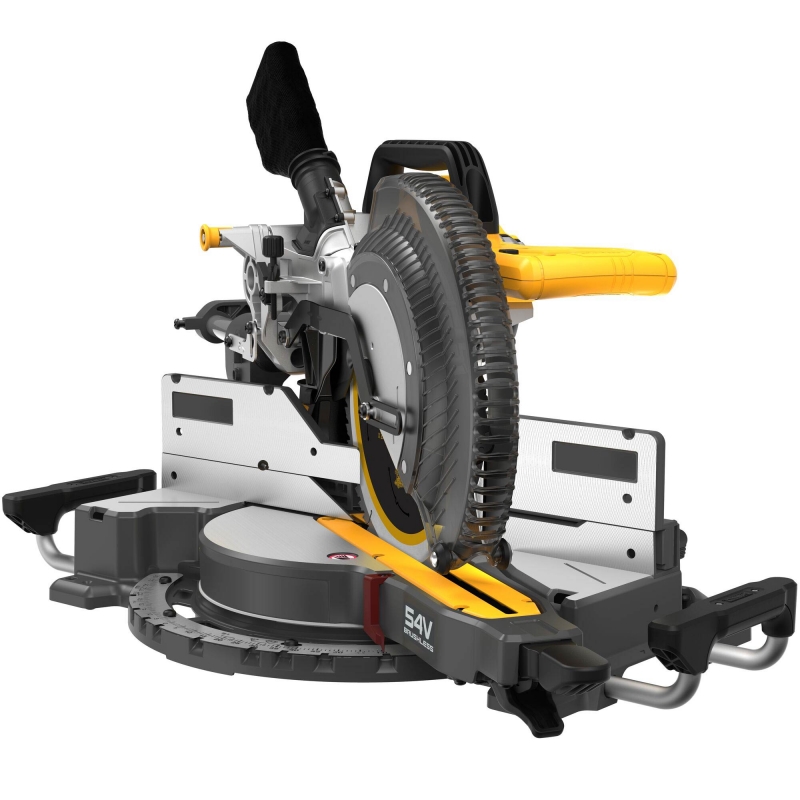

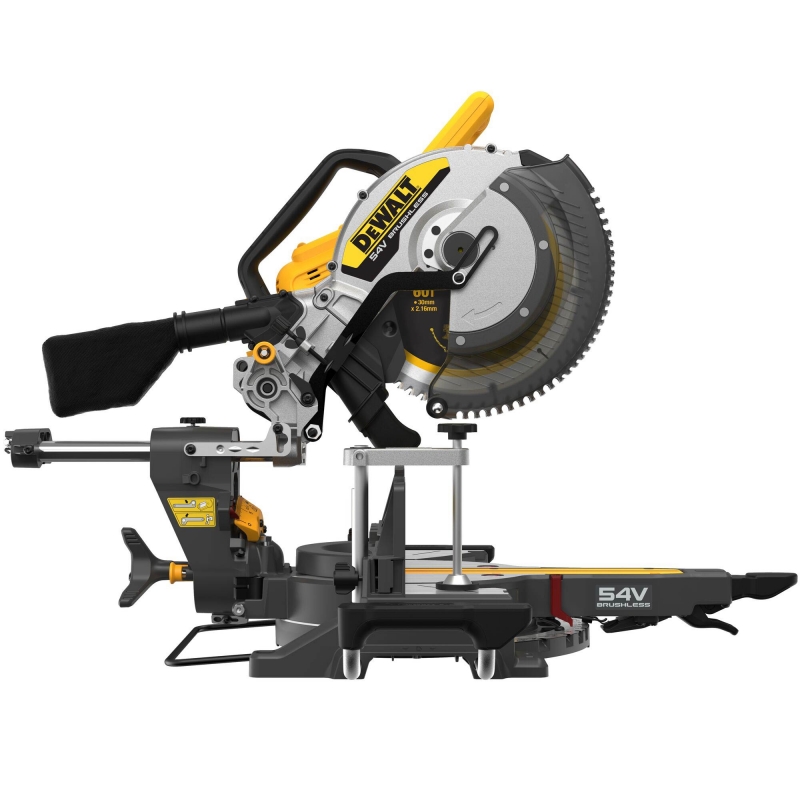

DEWALT DCS781N 54v Brushless 305mm FLEXVOLT Mitre Saw BODY ONLY

DCS781N-XJ Product Overview

The DeWalt DCS781N-XJ 54v XR FLEXVOLT 305mm Slide Mitre Saw is designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy in key applications, as well as being compact and lightweight in design to make it easier to transport the machine around the job site.

Part No: DCS781N-XJ(DEWPDCS781N)

DCS781N-XJ Technical Specifications

  • Voltage: 54v
  • Blade Diameter: 305 mm
  • Bore Size: 30 mm
  • Max. Cut at 90°: 345 x 76 mm
  • Max. Cut in Wood: 112 mm
  • Max. Cut at 45°: 212 x 76 mm
  • Maximum Bevel: 49
  • No Load Speed: 3800 rpm
  • Noise K Factor: 3dB(A)
  • Vibration K Factor: 1.5m/s²

DEWALT DCS781N 54v Brushless 305mm FLEXVOLT Mitre Saw BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
in stock In stock

DCS781N-XJ Key Features

  • Quick release bevel setting provides accurate and simple setting of bevel angles up to 48° left and right
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
  • Machined side handles meet latest IEC table requirements and improve portability and handling whilst providing a stable, base for wider material, with a stabilizer included for use when not on a stand
  • Up to 675 cuts 3 . (95 mm) MDF Base moulding (skirting) on one charge of a 9 ah battery gives you extended run time on site
  • Wireless Tool Control allows direct connection to the vac which provides increased runtime and improves efficiency
  • AIRLOCK compatible dust extraction improves cut line visibility and provides cleaner and safer jobsites

DCS781N-XJ What’s Included

  • 1 x DeWalt DT99575-QZ 60T Extreme Runtime blade
  • 1 x Dust Bag
  • 1 x Material Clamp in Carton
  • Number of Batteries Supplied: 0
  • Type: Brushless
  • Voltage: 54v
ExpertOur Expert Says…

The DeWalt DCS781X2-GB 54v FlexVolt Mire Saw has a newly developed Cam Action mitre lock function makes setting the mitre faster and easier, allowing the user to quickly adjust angles between 0°-50° left and 0°-60° right. The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications. The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles.

This DeWalt Mitre Saw kit includes a 20 mm horizontal rail with three linear roller bearings to provide maximum precision when cutting materials, whilst remaining lightweight.  It is supplied Body Only and doesn't come with a battery or charger.

Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Mitre Saw?

Cordless Mitre Saws are an essential for anyone who regularly needs to make precise, accurate cuts. The trick is to identify which machine best meets your needs. There is a lot to consider in terms of the features available, including the maximum mitre range, which determines the range of angles you can cut with the tool, the maximum bevel range, which indicates how much the saw can tilt either to the left and / or the right, which reduces the need to turn your workpiece while cutting.

The blade diameter and bore are important considerations, as these will impact on the cuts you can make and the range of additional blades you can purchase for your Mitre Saw. In addition, you should consider the speed at which the blade rotates and the weight of the tool, as these will impact on the control you have over the saw when using it.

Which is better: brushless or brushed saws?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.

However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

The voltage of your Cordless Mitre Saw will be influenced by how and when you will make most use of it. For professionals in the trades, the Makita 40v Max range provides up to 4,800 rpm plus a cutting capacity of 70 x 312 mm and the DeWalt 54v FlexVolt range will give you 6,300 rpm of No Load Speed and a cutting capacity of 62 x 270 mm. However, the 40v and 54v batteries are larger and heavier than an 18v equivalent, which needs to be taken into account if you’ll be moving the Mitre Saw regularly.
