DEWALT DCH263P1 18v Brushless SDS Plus Hammer Drill with 1x5ah Battery

DCH263P1 Product Overview

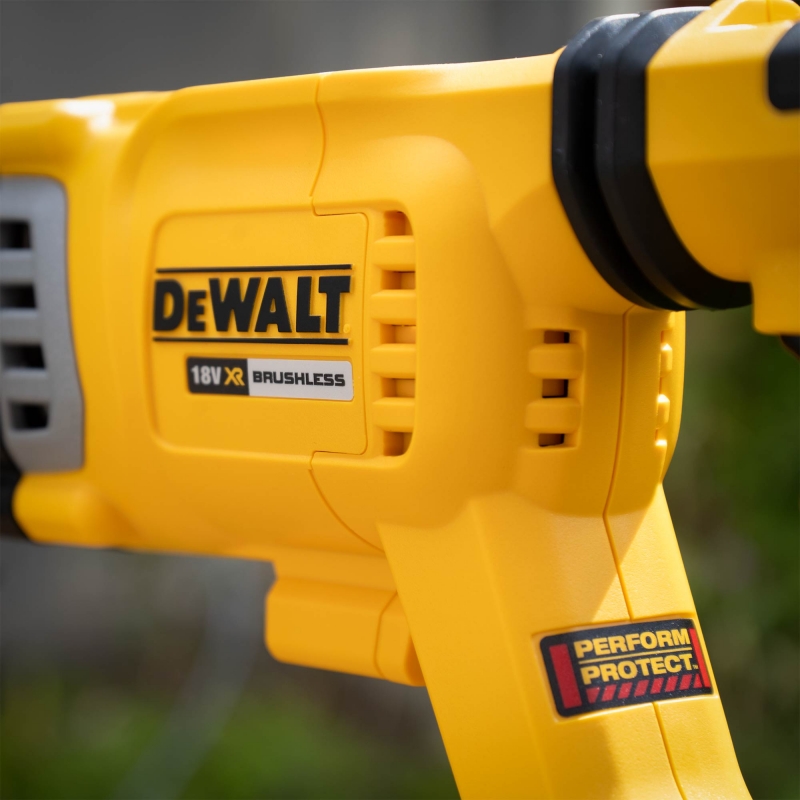

The DeWalt DCH263P1 18v SDS Hammer is a powerful and versatile cordless rotary hammer designed for professionals and DIY enthusiasts alike. Equipped with a brushless motor and powered by DeWalt's 18V XR battery platform, this tool offers exceptional performance and runtime for demanding tasks. The DCH263 features a compact, inline design that provides excellent balance and control, making it comfortable to use for extended periods. Its Active Vibration Control handle helps reduce user fatigue, while three modes of operation (rotary hammer, rotary only, and chisel only) ensure versatility for various applications. Additionally, an integrated LED work light illuminates the work area for improved visibility.

Part No: DCH263P1(DEWPDCH263P1)

DCH263P1 Technical Specifications

  • No load speed: 1150 rpm
  • Impact energy: 3 joules

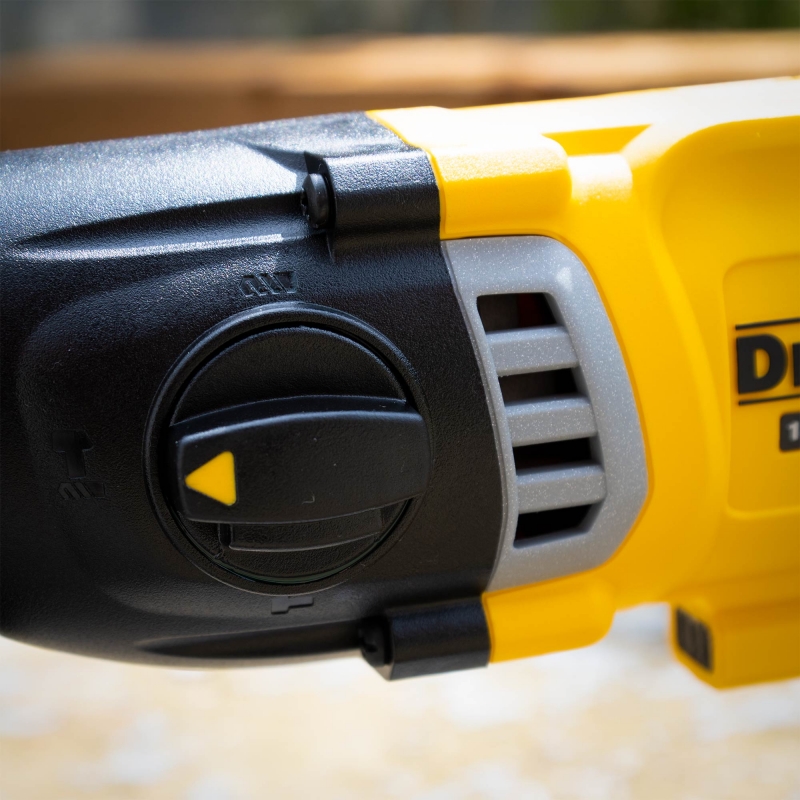

  • Drilling Modes:
    • Rotation Stop
    • Impact Stop
    • Rotary only
  • Maximum drilling capacity through wood: 30 mm
  • Maximum drilling capacity through metal: 13 mm
  • Maximum drilling capacity through concrete: 28 mm
  • Maximum drilling capacity using core bits: 65 mm
  • Toolholder: SDS-Plus
  • Hand/Arm vibration: 9.1m/s²
  • Weight: 2.7 kg

DEWALT DCH263P1 18v Brushless SDS Plus Hammer Drill with 1x5ah Battery

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
in stock In stock

DCH263P1 Key Features

  • DeWALT DCH263P1 SDS-Plus Hammer Drill 18v giving the trade the choice of 3modes; Rotation Stop mode for light chiselling in plaster, tiles andrender, Impact Stop Mode and Rotary Only drilling through wood and metal.
  • This high quality DCH263P1 DeWALT SDS-Plus Hammer Drill is built round atough industrial brushless motor making it ideal for drilling anchors andfixing holes into concrete, brick, and masonry from 4 mm to 28 mm.
  • The bright white LED work light with delay feature increasing visibilityplus the compact, lightweight and ergonomic design improves comfort andsupport during extended operating periods.

DCH263P1 What’s Included

  • 1x 18v 5Ah Li-Ion Battery
  • Fast Battery Charger
  • Multi position Side Handle
  • DeWALT Carry Case
  • Number of Batteries Supplied: 1
  • Voltage: 18v
  • Type: Brushless
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless SDS Plus Hammer?

Cordless SDS Plus Hammers are tools which pack a lot of punch. They’re designed for driving into masonry, which means that they need to rotate as quickly as possible. On top of that, because their primary role is as a hammer drill, the impact rate – measured in either impacts per minute (ipm) or blows per minute (bpm) is definitely an important characteristic to consider. You should also check the maximum drilling capacity, which determines how far the tool will go into the material you’re working with.

What's the difference between SDS and hammer drills?

The main differences are in the kind of drill bits they use and the amount of power they can bring to a task.  Slotted Drive System drills use bits with slots or indentations and a pair of sprung ball bearings at the end of the shaft, which ensure a snug fit into the chuck. The fact that SDS drills usually have faster rotations and provide more blows per minute sets them apart from a ‘traditional’ hammer drill and makes them particularly suitable for tougher drilling tasks, such as driving into concrete.

What's the difference between SDS Plus and SDS Max?

One significant difference between these kinds of tools is the size of the shank. SDS Plus bits typically have a 10mm shank, while SDS Max is 18mm. This means that an SDS Max tool can use SDS Plus drill bits with an adaptor, but SDS Max bits aren’t ‘backwards’ compatible. The other main difference is that an SDS Max drill has even more power than an SDS Plus tool and is designed for working on tougher jobs than you might use the SDS Plus machine for.

Which is better: brushless or brushed drills?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.

However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

That depends entirely on what your SDS Plus Hammer needs to do. One useful rule of thumb is to remember that the higher the voltage of the tool, the more it should be able to do. As an example, a 12v machine will usually have a drilling capacity in concrete of less than 15mm; the new 54v tools from DeWalt can drill to 30mm. We also have 18v, 36v and 40v options, from leading brands including Hikoki and Makita.
