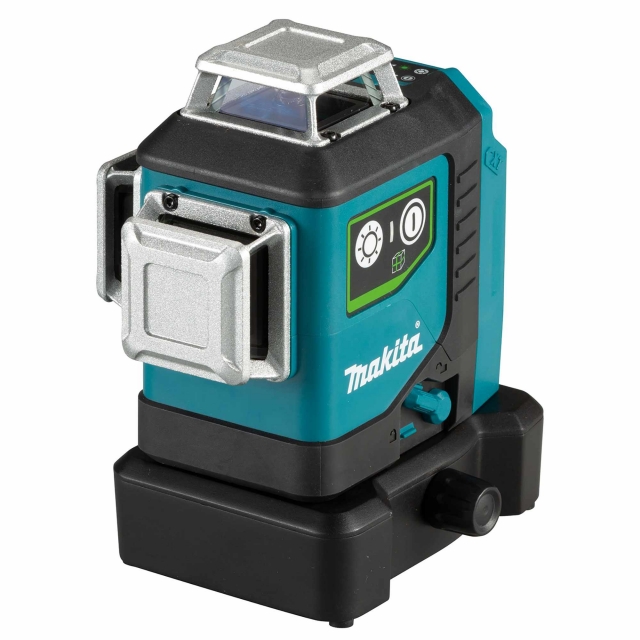

MAKITA SK700GDZ 12v CXT Green Multi-Line Laser BODY ONLY
SK700GDZ Product Overview
The SK700GDZ is a green laser Multi-Line Laser, with 4 vertical lines plus 4 horizontal lines, powered by 10.8V or 12V Max Li-ion CXT slide type battery (not included), equipped with 2 x vertical 360 degrees and 1 x horizontal 360 degrees beams, range/diameter 35 to 70 metres, range/diameter with receiver 70 to 140 metres and a 2.0mm line width at 5 metres. It has a rotary base with eccentric rotation mechanism designed to reduce set up time, automatic, pendulum lockable levelling system, 3 selectable brightness settings and vertical laser lines to rotate around the defined plumb point up to 10 degrees left and right with a dial for fine adjustment.
Part No: SK700GDZ(MAKMSK700GDZ)
SK700GDZ Technical Specifications
- Voltage: 12v
- Body only machine: Yes
- Laser Colour: Green
- Beam direction/fan angle: 2x Vertical 360°, 1x Horizontal 360
- Range: 35m (70m diameter)
- Range with receiver: 70 (140m diameter) m
- Self Levelling Range: 4
- Operating Temperature Range: -10 - 50 C
- Storage Temperature Range: -25 - 70 C
- Tripod Thread: 1/4 "
- Net weight: 0.99 1.2 kg
- Battery Type: Lithium-ion
- Safety Class: Class 2
- Wavelength: 510 530 nm
- Line width: 2.0 mm at 5 m
- Accuracy: 2 mm/ 10 m
- Light Output Power: < 2.0 mW
MAKITA SK700GDZ 12v CXT Green Multi-Line Laser BODY ONLY
SK700GDZ Key Features
- Green laser line for increased visibility in brighter environments
- 4V4H (4x Vertical lines plus 4x Horizontal lines)
- 3 x full 360-degree laser lines
- Compatible with 12Vmax CXT batteries
- Rotary base with eccentric rotation mechanism: Reduces setup time.
- Vertical laser lines can rotate around the defined plumb point up to 10° left and right (with a dial for fine adjustment).
- Eccentric rotation mechanism enables the laser body to rotate without changing the position of the defined plumb point, enabling easy line positioning.
- Automatic, pendulum lockable levelling system
- 3 x selectable brightness settings
- IP54 (dust and splash water) rated protection
SK700GDZ What’s Included
- 1 x Target plate
- 1 x Adapter
- 1 x Storage bag
- Number of Batteries Supplied: 0
- Voltage: 12v
