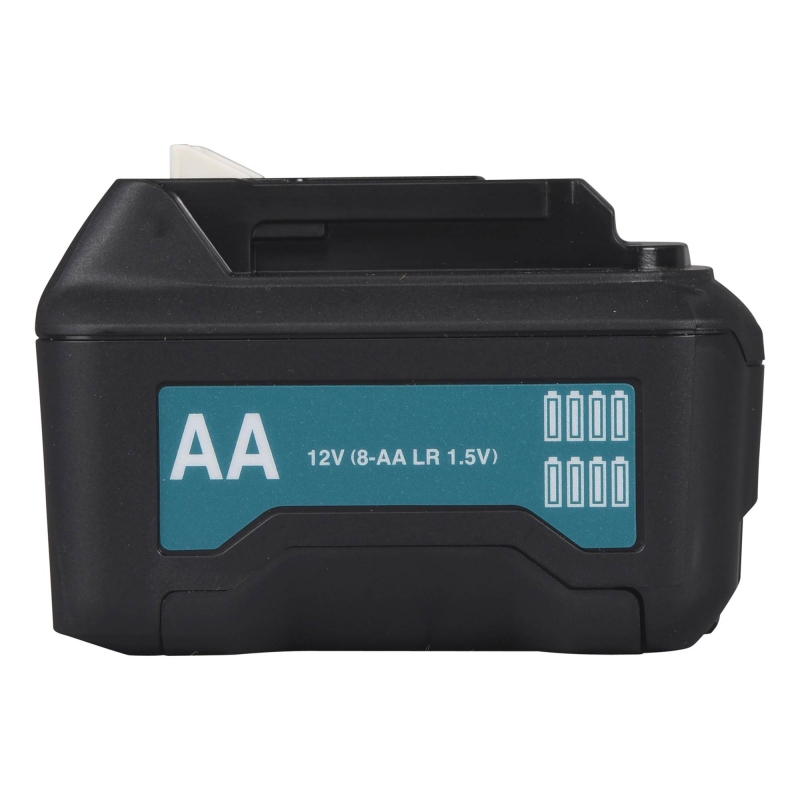

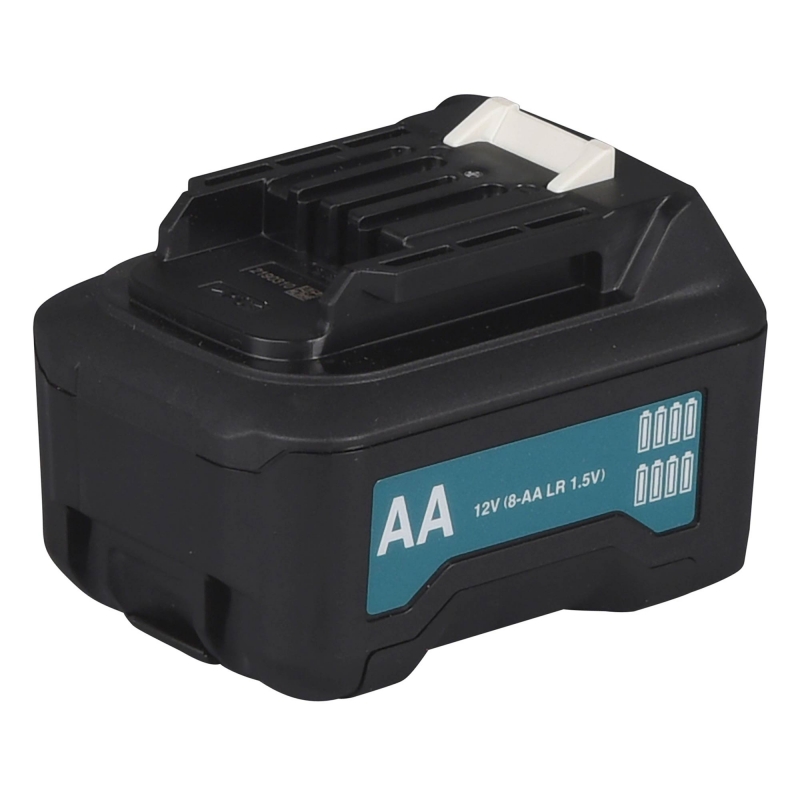

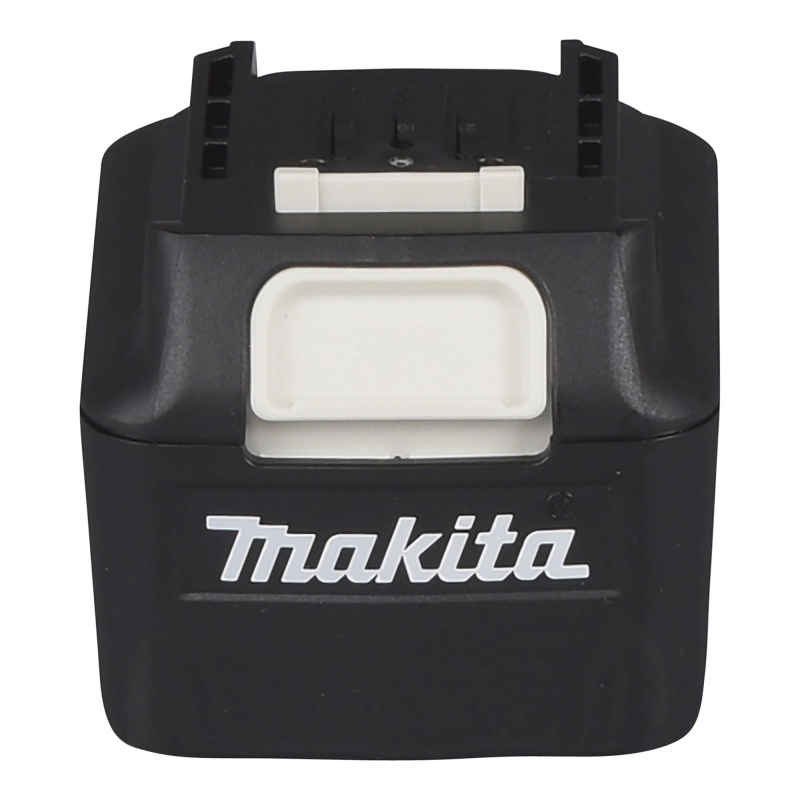

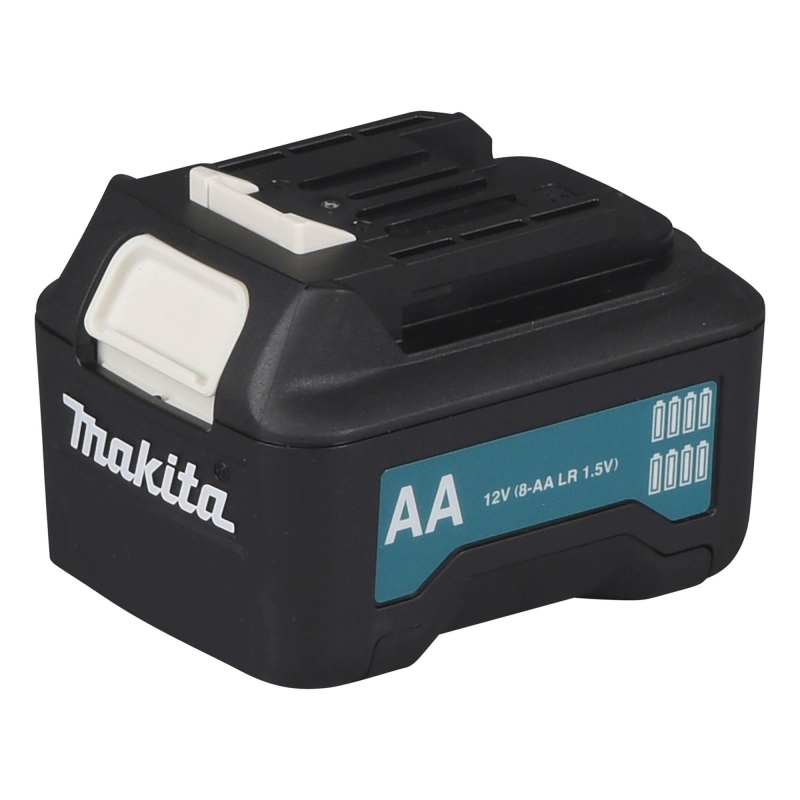

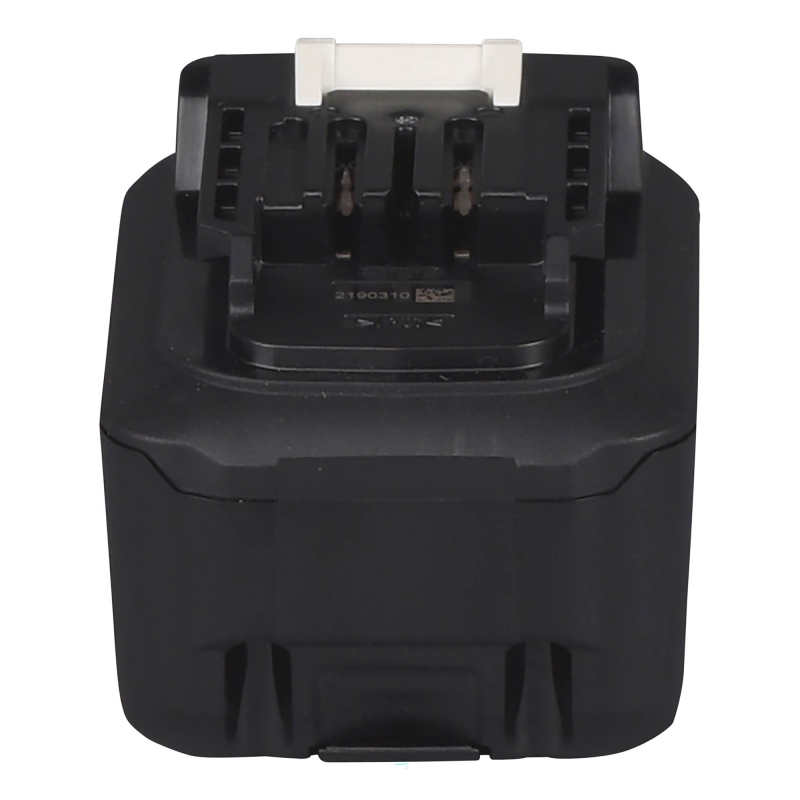

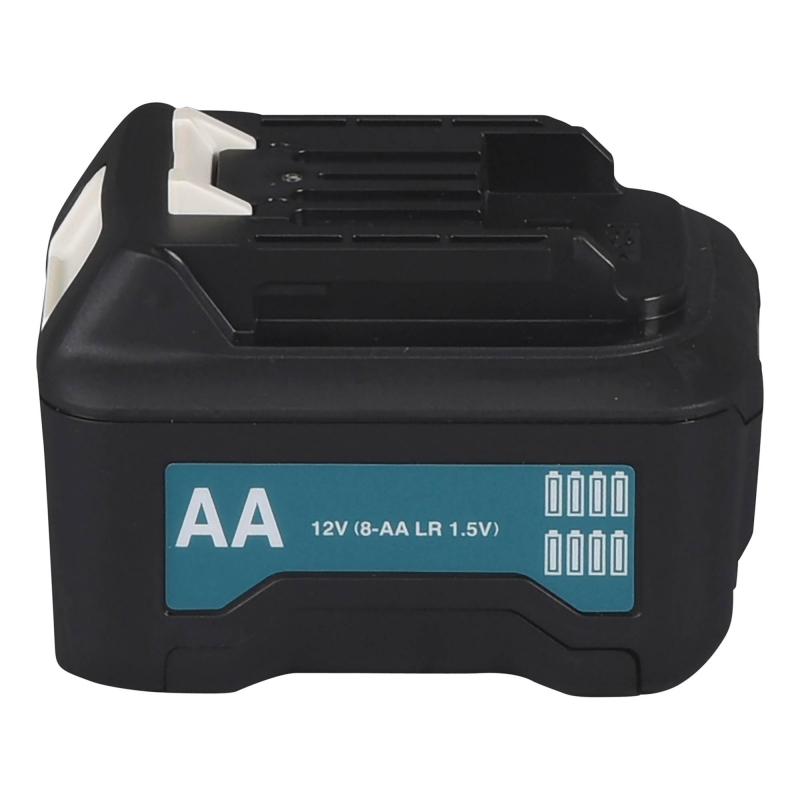

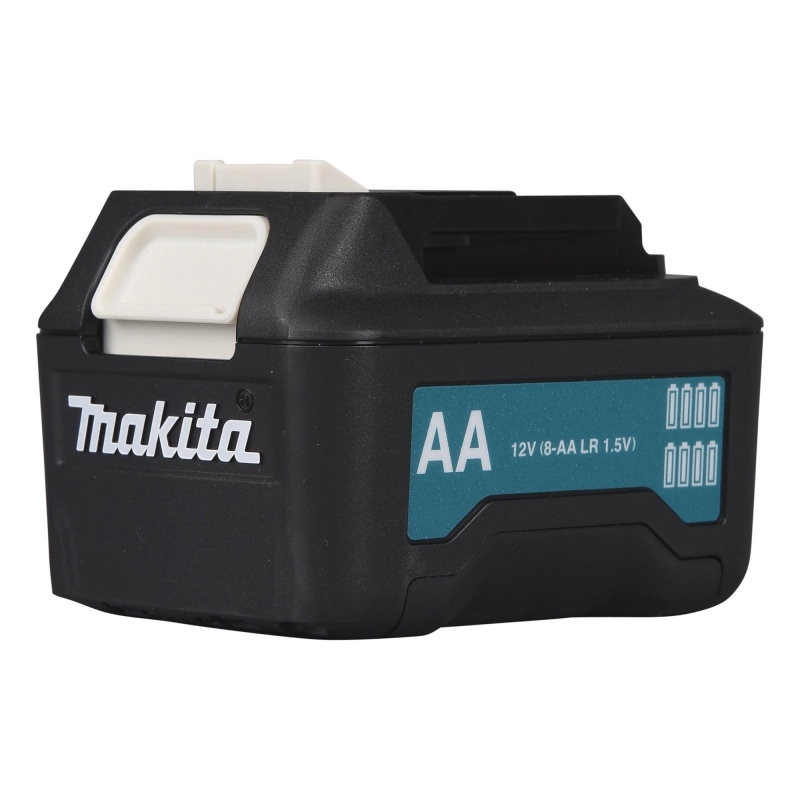

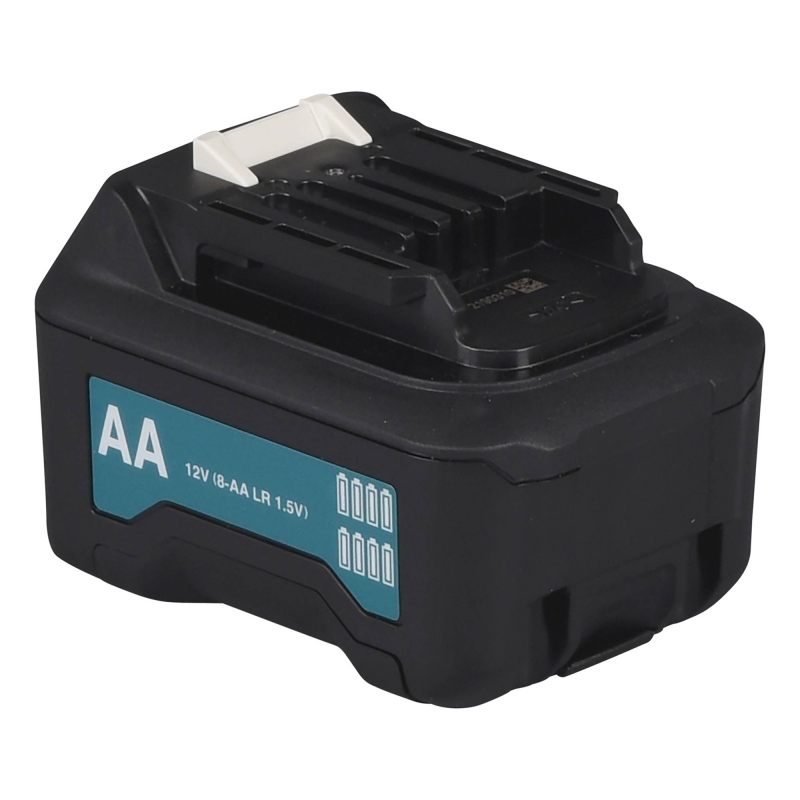

MAKITA CP00000001 Laser Battery Adapter ADP09

The Makita ADP09 acts as a versatile power bridge for compatible CXT laser levels, ensuring that a lack of charged lithium-ion packs never brings work to a halt. By converting the power from standard AA cells into a format the tool can accept, this adapter serves as an essential backup solution, allowing users to keep their precision instruments running using widely available batteries found in most shops and supermarkets.

Part No: CP00000001(MAKACCP00000001)

• Universal AA Power Source: Allows the use of eight commercially available AA batteries (alkaline, Ni-MH, or zinc-carbon) to operate CXT 12V max tools.
• Emergency Backup: Provides an immediate power alternative when rechargeable CXT battery packs are depleted or unavailable.
• Deep Discharge Protection: Features a dedicated On/Off switch that cuts power completely to prevent the inserted AA batteries from draining flat when the tool is idle.
• Lightweight Design: Adds minimal bulk to the laser unit, maintaining the portability and balance of the equipment during use.
• Mechanical Safety Lock: Engineered with a specific "stop rib" or physical barrier that prevents accidental insertion into incompatible non-laser CXT power tools, protecting both the adapter and the tool.
• Extended Runtime: Capable of delivering approximately 7 to 11 hours of continuous operation depending on the specific laser model and battery capacity used.

• Model Number: ADP09 (Part No. CP00000001)
• Power Input: 8 x AA Batteries (1.5V each)
• Output Voltage: 12V Max (CXT Platform)
• Compatible Battery Chemistries: Alkaline, Nickel-Metal Hydride (Ni-MH), Zinc-Carbon
• Net Weight: 0.11 kg (excluding batteries)
• Dimensions (L x W x H): 87 mm x 64 mm x 56 mm
• Compatible Laser Models: SK700GD, SK700D, SK40GD, SK20GD, SK10GD, SK312GD, SK209GD
• Interface Type: CXT Slide-style connector
