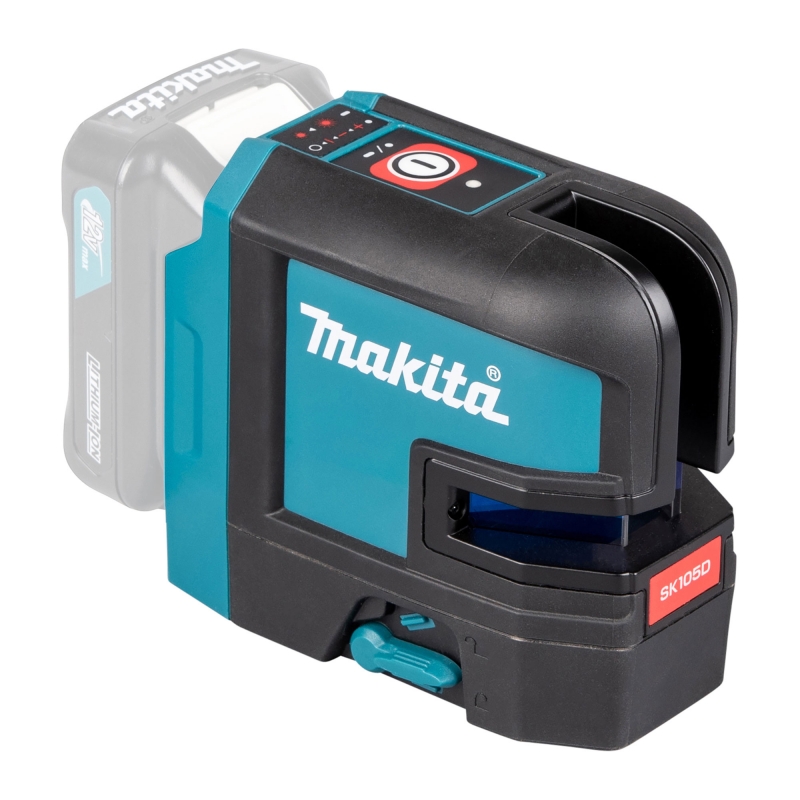

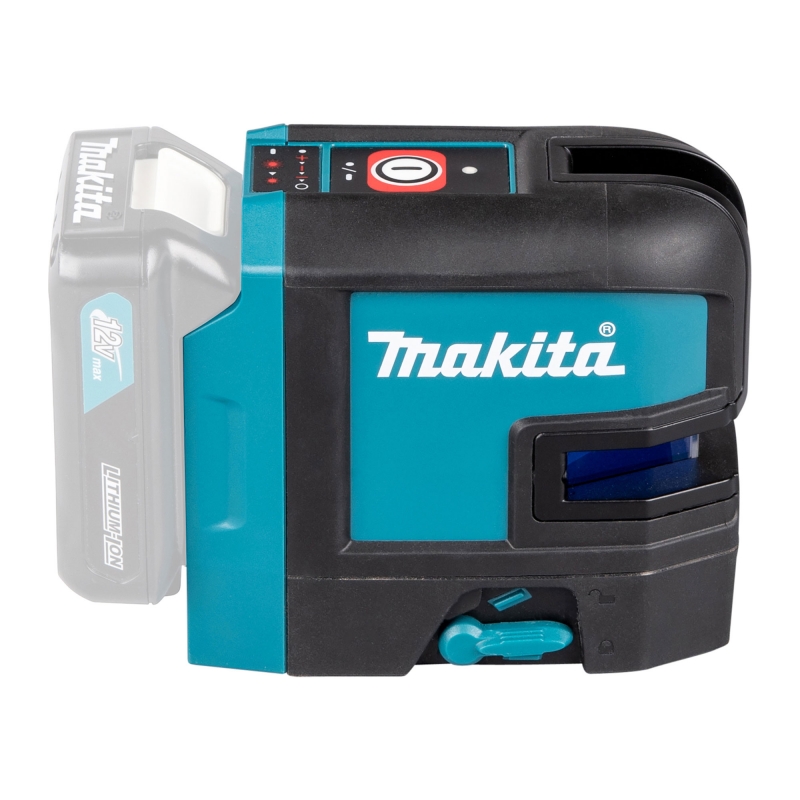

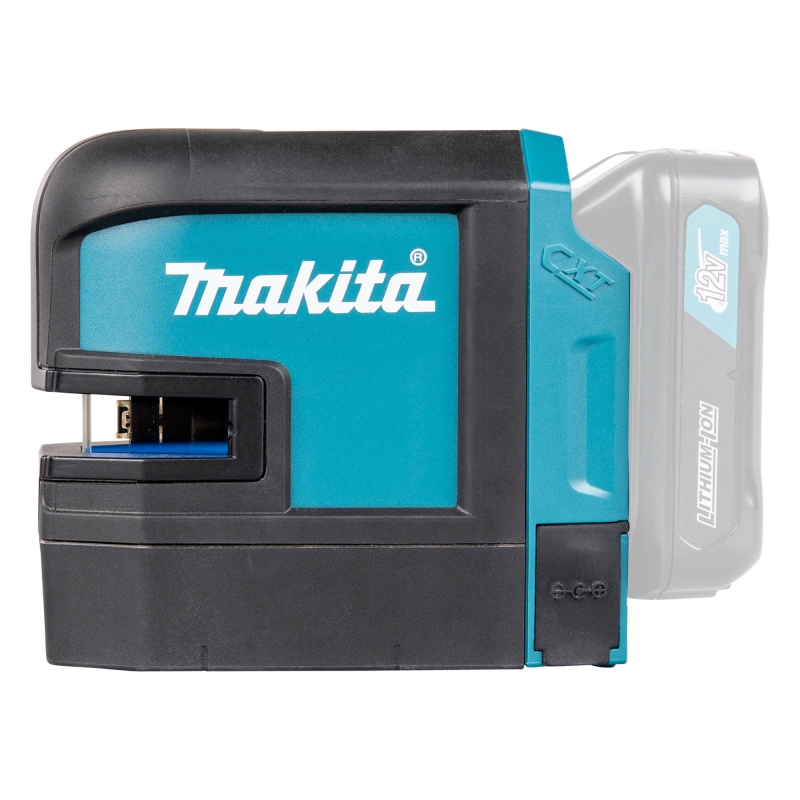

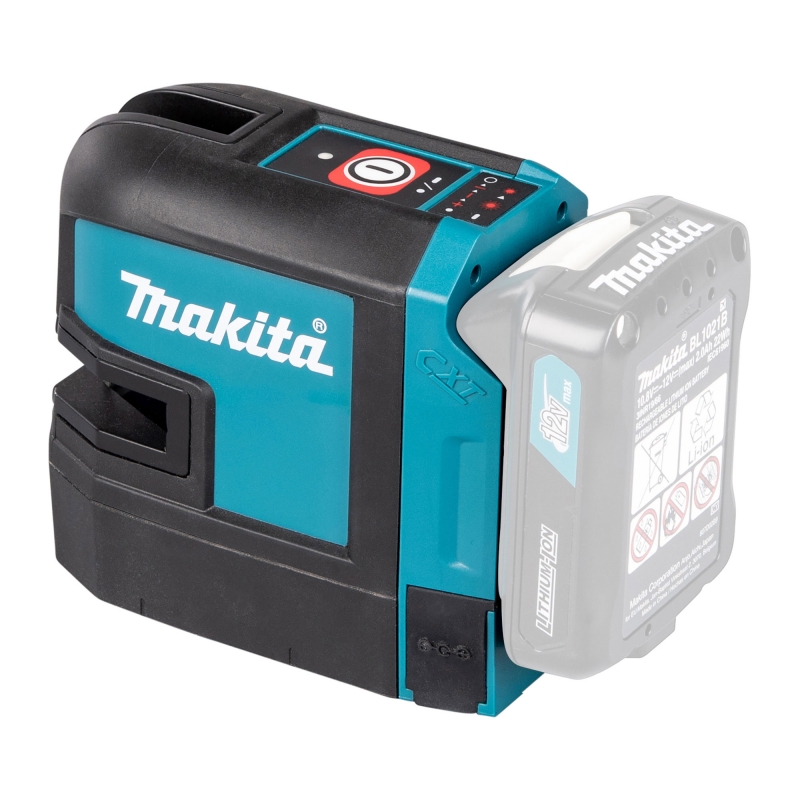

MAKITA SK105DZ 12v Max Red Crossline Laser BODY ONLY

SK105DZ Product Overview

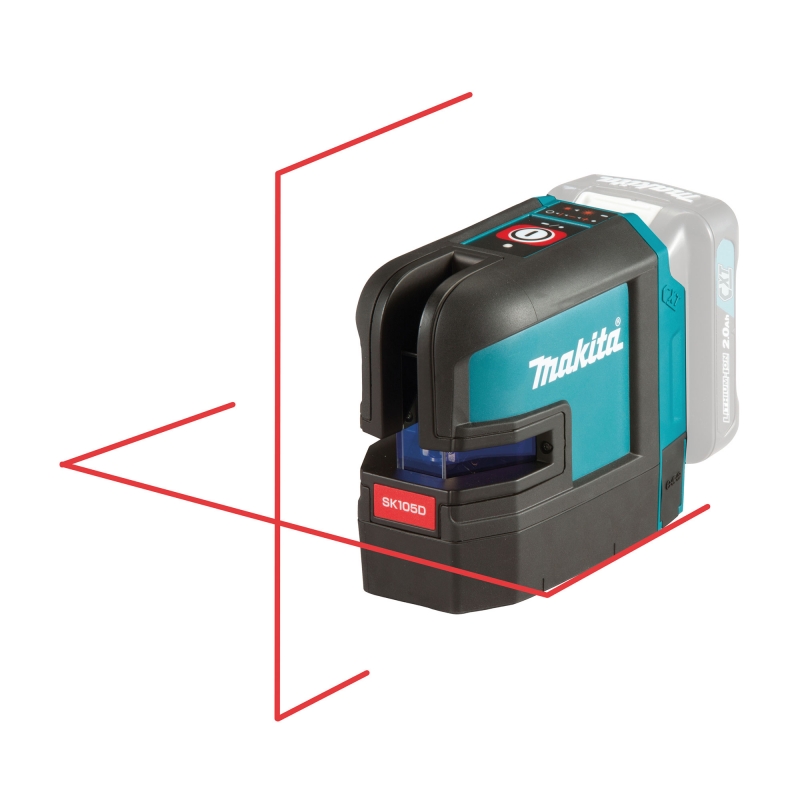

The SK105DZ Red Cross Line Laser is powered by 10.8V or 12V Max Li-ion CXT slide type battery (not included). It is a handy and accurate self-levelling Cross Line Laser (cross line/horizontal/vertical) equipped with horizontal aligning; convenient way to transfer reference points from one wall to another, vertical aligning; the simple way to ensure that walls, floor, tiles and joints precisely meet one another, 2 mode brightness selection for bright mode and eco mode and pendulum lock to enable slope incline applications for increased versatility; offers added protection of laser diode during transport and storage.

Part No: SK105DZ(MAKMSK105DZ)

SK105DZ Technical Specifications

  • Voltage: 12 v
  • Body only machine: Yes
  • Laser Colour: Red
  • Beam direction/fan angle: Vertical >160°, Horizontal >180°
  • Range: 25m
  • Range with receiver: 80 m
  • Self Levelling Accuracy: 0.3 mm/m = 3.0 mm @ 10m
  • Horizontal/Vertical: line accuracy 0.3 mm/m
  • Self Levelling Range: 4
  • Self-levelling time: < 3 seconds
  • Laser Type: 635 5 nm, Class 2
  • Laser line width at 5m distance: < 2mm
  • Approx. Continuous Run Time: (4Ah) 40 hrs
  • Operating Temperature Range: -10 - 50 C
  • Storage Temperature Range: -25 - 70 C
  • Tripod Thread: 1/4 "
  • Net weight: 0.67 - 0.84 kg
  • Battery Type: Lithium-ion

MAKITA SK105DZ 12v Max Red Crossline Laser BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
unavailable Sorry, we are out of stock

SK105DZ Key Features

  • Handy and accurate self-levelling crossline, horizontal and vertical
  • LED light blinks if out of level
  • Pendulum lock enables slope incline applications and offers added protection of the laser diode during transport and storage
  • Pulse power for receiver
  • DC jack - allows compatibility with LXT batteries if used with a USB adapter
  • 2 brightness modes, high and eco
  • Line visibility range up to 25 metres, 80 metres with receive

SK105DZ What’s Included

  • CD with user manual
  • Quick reference guide
  • Safety instructions
  • Laser target plate
  • L-adapter (magnetic)
  • Carry bag
  • Number of Batteries Supplied: 0
  • Voltage: 12v
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Laser Level?

Laser Levels are invaluable when you need a straight and level reference point; almost like a virtual chalk line. There are lots of different variations to think about, such as whether you need vertical lines, horizontal or both, what colour the beam should be and whether it will be used indoors or outdoors. This last point is an important one; ‘outdoor’ Laser Levels use a brighter, more powerful laser to ensure visibility in natural light, so are more expensive than their ‘indoor’ counterparts.

A feature that isn’t always available but is worth looking out for, is “self-levelling”. A self-levelling laser corrects itself regardless of any irregularities in the surface the laser has been placed on; this makes them quicker and simpler to use, as well as more accurate when compared to levels which are calibrated using a spirit level bubble.

Different types of Laser Level

The most common type of Laser Level now is the Line Level, which does what it says on the box and displays horizontal and vertical lines either together as a cross hair or as separate lines on a ceiling, wall or floor. If choosing a Line Level, think about the working visibility range your level can project, the accuracy of the beam and the number of beams your level can give you.

An alternative to a Line Levels would be a Rotary Level. These rotate 360°, providing a constant horizontal line through a complete circle. There are also Specialist Levels available, such as Inclinometers and Plumb Bobs.

Red or Green Beams?

At ToolStore UK, we sell Laser Levels with both red and green beams. But which should you choose? Fundamentally, there are two factors to consider; cost and distance. Green lasers offer greater distance and improved visibility but those advantages come at a price. Therefore, if you need a Laser Level but have a restricted budget, a red laser may be the right choice. However, for many users, visibility is the most important factor and that makes green lasers a clear favourite; they are between 10 and 50 times brighter than red lasers which makes green lasers four more times more visible to the naked eye than red.
