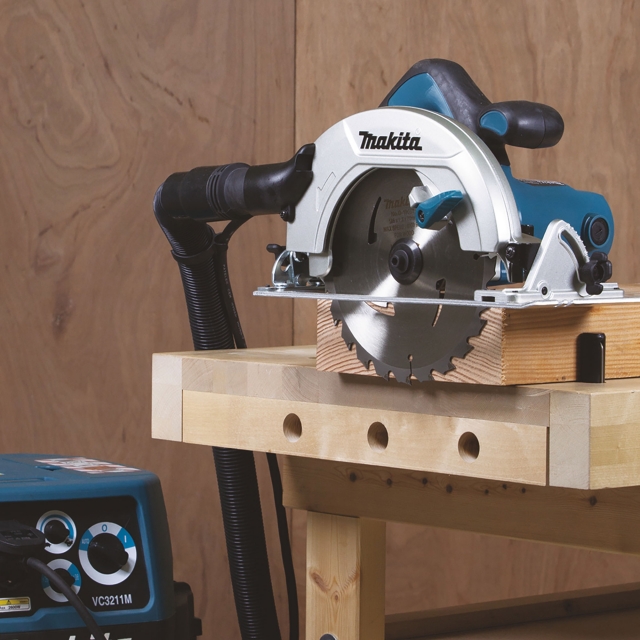

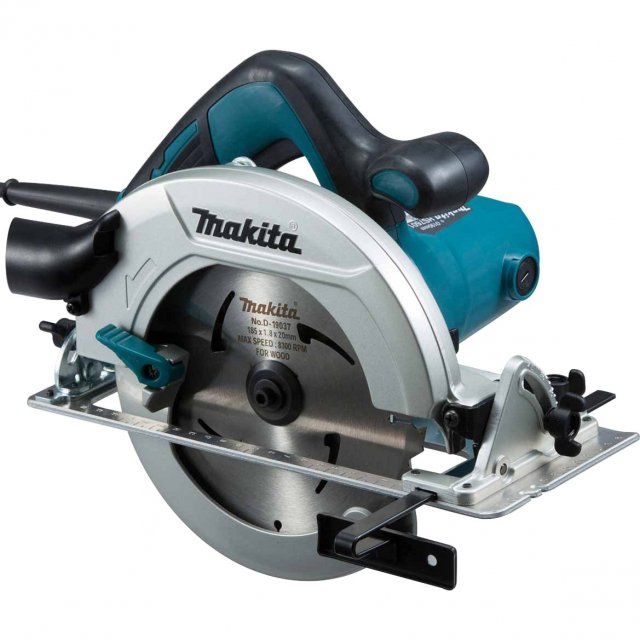

MAKITA HS7601J 240v 190mm Circular Saw
HS7601J/2 Product Overview
The HS7601J Circular Saw is compact and lightweight, with a powerful 1,200 watt motor, to deliver up to 5,200 rpm. With new aesthetic design, is equipped with aluminium base plate and aluminium die cast safety cover for increased durability, single action lever for quick adjustment of the cutting depth, rear angular guide for smooth and precise adjustment of the bevel angle and handy guide rule to allow the operator accurate straight cuts.
Part No: HS7601J/2(MAKPHS7601J-2)
HS7601J/2 Technical Specifications
- Blade Diameter: 190 mm
- Bore Diameter: 30 mm
- Max Cut at 0°: 66 mm
- Max Cut at 45°: 46 mm
- Input Wattage: 1,200 w
- No Load Speed: 5,200 rpm
- Net Weight: 4 kg
- Noise Sound Pressure: 87 dB(A)
- Noise Sound Power: 98 dB(A)
- Vibration K Factor: 1.5 m/s²
- Vibration Cutting Wood: 2.5 m/s²
MAKITA HS7601J 240v 190mm Circular Saw
HS7601J/2 Key Features
- Model HS7601 has been developed as the successor model of 5704R.
- Double Insulation
- Compact and lightweight design
- New Aesthetic Design
- Compatible with Guide Rail
- Rear dust exhaust port
- Connectable to dust extractor
- Rear angular guide for smooth and precise adjustment of bevel angle
- Single action lever for quick adjustment of cutting depth
- Ergonomic soft grip.
- Flat motor housing end
- Aluminium die-cast safety cover
- Aluminium base plate
HS7601J/2 What’s Included
- 190mm 12T Saw Blade
- Hex Wrench
- Guide Rule
- Dust Nozzle
- MakPac Connector Case (Type 4)
- Inner Tray for Case
- Voltage: 240v
- Size: 190mm
