DEWALT DCS520T2 54v XR Flexvolt Plunge Saw with 2x6ah Batteries
DEWALT DCS520T2 54v XR Flexvolt Plunge Saw with 2x6ah Batteries

Why Not Add
VAT (£14.14 ex VAT)
VAT (£20.75 ex VAT)
VAT (£16.03 ex VAT)
VAT (£10.26 ex VAT)
What’s Included
- 54v 6Ah XR FlexVolt Batteries

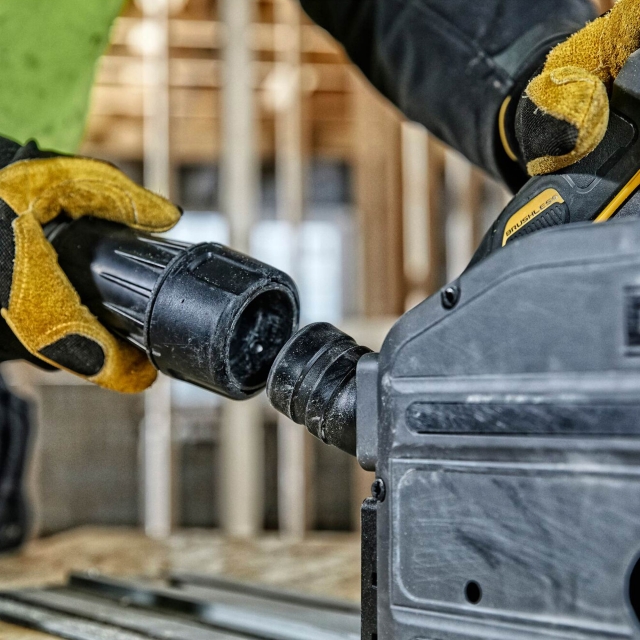

- Dust Extraction Spout
- Hex key
- 42 tooth Saw Blade
- TSTAK Heavy Duty Carrying Case
- Multi-voltage Charger
- Number of Batteries Supplied: 2
- Type: Brushless
- Voltage: 54v
- Size: 165mm
Product Overview
The DEWALT DCS520T2 54V XR Flexvolt Plunge Saw with 2x6Ah Batteries represents the next generation of cordless saw technology. Combining the power of a corded tool with the convenience of cordless operation, this plunge saw delivers precise and fine cuts suitable for various professional applications.
Part No: DCS520T2-GB(DEWPDCS520T2)
Features & Benefits
- 42-tooth blade: Ensures a fine and accurate finish with minimal breakouts in laminates at cutting depths up to 55 mm.
- 54V XR FLEXVOLT battery: Provides the power of a corded tool with the convenience of cordless operation.
- Adjustable rail: Allows for precise alignment and smooth operation with a constant hand position during cutting.
- Anti-kickback function: Enhances safety by preventing the saw from climbing out of the workpiece and moving back along the rail.
- Variable speed control: Enables optimal speed settings based on the material being cut.
Technical Specification
- Voltage: 54V
- Type: Brushless
- No-load speed: 2,800 - 5,500 rpm
- Bevel angle: 0°
- Weight (excl. battery): 4.1 kg
- Saw blade bore diameter: 20 mm
- Saw blade diameter: 140 mm
- Baseplate dimensions: 305 x 169 mm
- Tool dimensions:
- Width: 200 mm
- Length: 370 mm
- Height: 230 mm
The DEWALT DCS520T2 54V XR FlexVolt Brushless Plunge Saw is an exceptional tool for professionals engaged in trimming, plunge cutting, and sheet cutting applications. Featuring Wireless Tool Control, it allows for cord-free power take-off with a compatible extractor, ensuring clear visibility of the cut line and maintaining a clean working environment. The anti-kickback function prevents the saw from moving backward along the rail and climbing out of the workpiece during plunge cuts. The parallel plunge mechanism provides a smooth and consistent hand position, while variable speed control adjusts to different materials. With a 55mm depth of cut, it handles common door sizes effortlessly. The saw also includes full-wave electronics and a brushless motor to maintain constant speed under heavy load. This comprehensive kit comes with two 6Ah batteries, a multi-voltage charger, and a TSTAK carry case, making it a complete solution for demanding jobs.
FAQs
Cordless Circular Saws are powerful tools which enable you to work around any home or jobsite without the potential trip hazard associated with power cables. However, it is important to choose the right saw for the work you’ll be doing with it. There are a lot of things to think about, including blade size as this affects cutting capacity and maximum cutting depth, the bevels at which the saw operates and the speed at which the blade moves, as the greater the revolutions per minute (RPM) a saw provides, the greater control you have over the cut.
Our range of Cordless Circular Saws covers a range of blade sizes, from 85 mm through to 190 mm. Larger blades offer greater cutting capacity and a larger maximum cutting depth. It’s important to think about the blade(s) supplied and / or available for the saw you’re looking to buy. As you’d expect, we have a range of Circular Saw Blades which covers all sorts of sizes and job types.
It’s also worth thinking about the kind of cuts you will be making. Some saws are better suited to straight cuts, others work better at a 45-degree angle, so it’s well worth checking the product specification before making a buying decision.
Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.
Our range of Cordless Circular Saws starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size. Professionals who need more power from their Circular Saw for working on site could also consider the 40v XGT range from Makita or DeWalt’s 54v FLEXVOLT machines.
Additional FAQs
1. What is the maximum cutting depth of the DEWALT DCS520T2 Plunge Saw?
- The saw has a maximum cutting depth of 55 mm, which is suitable for trimming and sizing most common door sizes.
2. Does the saw have an anti-kickback feature?
- Yes, the saw has an anti-kickback function to prevent it from moving backwards along the rail and climbing out of the workpiece during plunge cuts.
3. What type of battery does the DEWALT DCS520T2 use?
- The saw uses 54V XR FLEXVOLT batteries, which provide the power of a corded tool with the convenience of cordless operation.
4. What accessories are included with the DEWALT DCS520T2 Plunge Saw?
- The saw comes with two 6Ah XR FlexVolt Batteries, a Dust Extraction Spout, a Hex key, a 42-tooth Saw Blade, a TSTAK Heavy Duty Carrying Case, and a Multi-voltage Charger.
5. Is the DEWALT DCS520T2 suitable for heavy-duty use?
- Yes, the plunge saw features a brushless motor and full-wave electronics, ensuring constant speed under heavy load, making it ideal for demanding applications.
