DCS520NT-XJ Product Overview

The DeWalt DCS520NT 54v XR FLEXVOLT plunge saw is the next generation of cordless saw technology. Bringing the power of a corded tool to a convenient cordless tool, the DCS5520T2 provides accurate cuts with a fine finish.

Part No: DCS520NT-XJ(DEWPDCS520NT)

DCS520NT-XJ Technical Specifications

  • No Load Speed: 2500-4200 rpm
  • Blade Diameter: 165 mm
  • Blade Bore: 20 mm
  • Bevel Capacity: 47°
  • Max. Depth of Cut at 90°: 59 mm
  • Max. Depth of Cut at 90°[with guide rails]: 55 mm
  • Max. Depth of Cut at 45°: 44 mm
  • Max. Depth of Cut at 45°[with guide rails]: 40 mm
  • Weight: 4.7 kg
  • Length: 303 mm
  • Height: 265 mm
  • Hand/Arm Vibration: 1.1 m/s²
  • Uncertainty K 1 (Vibration): 1.5 m/s²
  • Sound Pressure: 82.2 dB(A)
  • Sound Pressure Uncertainty: 2.9 dB(A)
  • Sound Power: 93.2 dB(A)
  • Sound Power Uncertainty: 2.9 dB(A)

DEWALT DCS520NT 54v XR Flexvolt Plunge Saw BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
unavailable Sorry, we are out of stock

DCS520NT-XJ Key Features

  • The DeWalt DCS520NT plunge saw benefits from the 54V XR FLEXVOLT system, offering corded power without the cord.
  • The 42-tooth blade gives a fine and accurate finish and you can adjust the saw accurately to the rail for precision cuts every time.
  • Enjoy a smooth and constant hand position while you cut with the parallel plunge and adjust the speed setting to select the appropriate speed for the material you are cutting.
  • For improved safety, DeWalt DCS520NT plunge saw includes an anti-kickback function stops helps stop the saw from climbing out the work piece when making plunge cuts and from moving backwards along the rail.

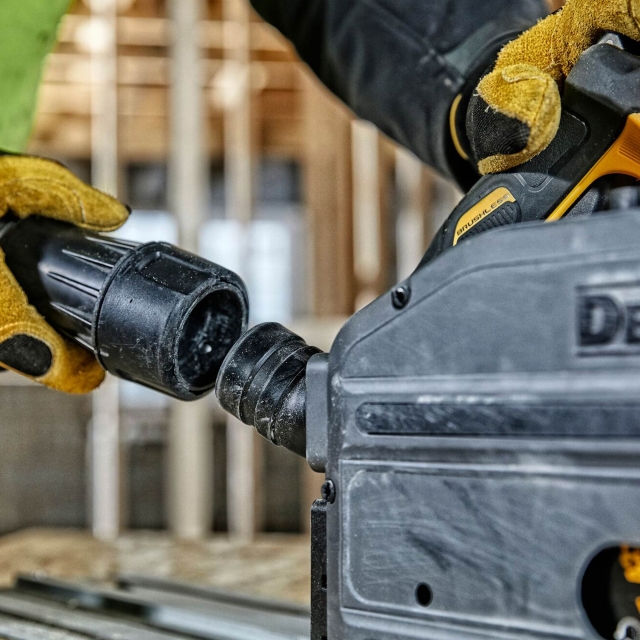

  • Features an enclosed guard that gives a 90% dust extraction capability, to keep your work area free from dust.

DCS520NT-XJ What’s Included

  • 1 x 42T Precision Cut Saw Blade

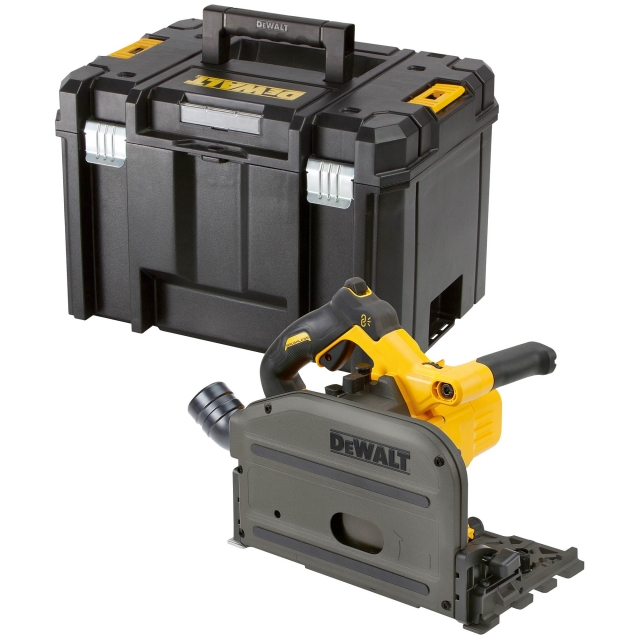

  • 1 x Tstak Carry Case
  • This is a Body Only machine, which is not supplied with a battery or charger.
  • This item may be supplied in unbranded packaging
  • Number of Batteries Supplied: 0
  • Type: Brushless
  • Voltage: 54v
  • Size: 165mm
ExpertOur Expert Says…

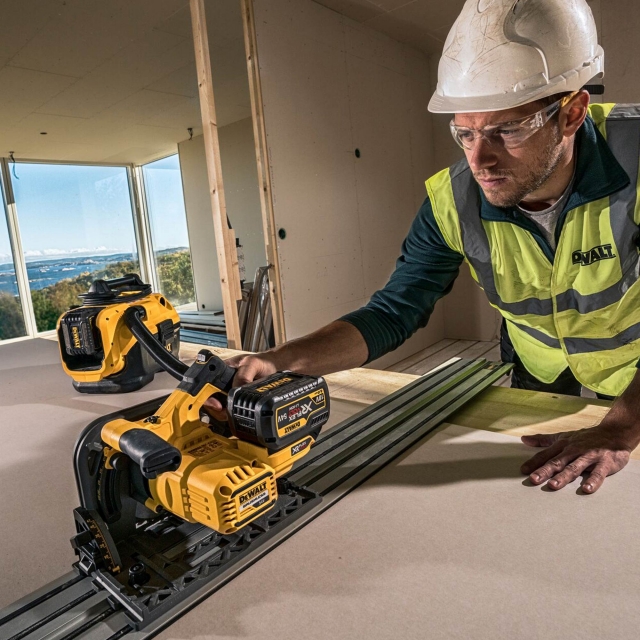

The DeWalt DCS520 54v XR FlexVolt Brushless Plunge Saw is a high-powered cordless solution for professionals working on trimming, plunge cutting, and sheet cutting applications.  It includes Wireless Tool Control to enable cord free power take off with a compatible Extractor so that you can clearly see the cut line as well as maintain a clean working environment.

The saw features an anti-kickback function which stops the saw from moving backwards along the rail and helps stop the saw from climbing out of the work piece when making plunge cuts.  The parallel plunge allows the user to maintain a smooth and constant hand position while cutting, while the variable speed control allows for the speed to set subject to the materials that need to be cut. The Plunge Saw features a 55mm depth of cut that allows for trimming and sizing on the most common door sizes.  It also includes full wave electronics and a brushless moter so maintains a constant speed under heavy load.

This is a DeWalt Body Only tool which is supplied in a TSTAK carry case, but without batteries or a charger.

Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Circular Saw?

Cordless Circular Saws are powerful tools which enable you to work around any home or jobsite without the potential trip hazard associated with power cables. However, it is important to choose the right saw for the work you’ll be doing with it. There are a lot of things to think about, including blade size as this affects cutting capacity and maximum cutting depth, the bevels at which the saw operates and the speed at which the blade moves, as the greater the revolutions per minute (RPM) a saw provides, the greater control you have over the cut.
Our range of Cordless Circular Saws covers a range of blade sizes, from 85 mm through to 190 mm. Larger blades offer greater cutting capacity and a larger maximum cutting depth. It’s important to think about the blade(s) supplied and / or available for the saw you’re looking to buy. As you’d expect, we have a range of Circular Saw Blades which covers all sorts of sizes and job types.
It’s also worth thinking about the kind of cuts you will be making. Some saws are better suited to straight cuts, others work better at a 45-degree angle, so it’s well worth checking the product specification before making a buying decision.

Which is better: brushless or brushed motors?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

Our range of Cordless Circular Saws starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size. Professionals who need more power from their Circular Saw for working on site could also consider the 40v XGT range from Makita or DeWalt’s 54v FLEXVOLT machines.
