TREND GAUGE/D60 Digital Depth Gauge 60mm Jaw
Part No: GAUGE/D60(TRENDGAUGE/D60)
GAUGE/D60 Technical Specifications
- Measuring range: 80 mm (3-1/8")
- Opening width: 60 mm (2-3/8")
- Resolution: 0.05 mm (0.002")
- Accuracy: +/- 0.1 mm (0.004")
- Repeatability: +/- 0.1 mm (0.004")
- Max. measuring speed: 1.5 m/s (60 in/s)
- Weight: 92g
- Voltage: 3 volt
- ABS mode (Absolute): Measuring single amounts from Zero
- INC mode (Relative): Measuring from last point
- End of life: See below for Environmental Policy link
TREND GAUGE/D60 Digital Depth Gauge 60mm Jaw
In stock
GAUGE/D60 Key Features
- Digital depth gauge for router tables and saw benches
- Horizontal and vertical measuring
- For hand routers, router tables and saw benches
- LCD readout for mm, imperial and fractions with auto shut off 5 mins

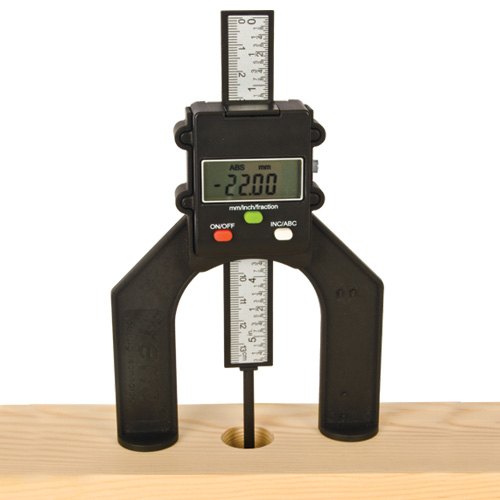

- Removable pin to allow hole depths to be measured
- Pin can be parked on arm
- Hole depth 50.8mm (2 inch)
- Self standing with magnetic feet and flat back
- Injection plastic moulding with plastic rule.6
- 0mm wide aperture
- Read-out has relative co-ordinate and absolute function
- Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence
- Spare battery available Ref BAT/CR2032/3V
- For UK sale only
GAUGE/D60 What’s Included
- Type: Depth Gauge
