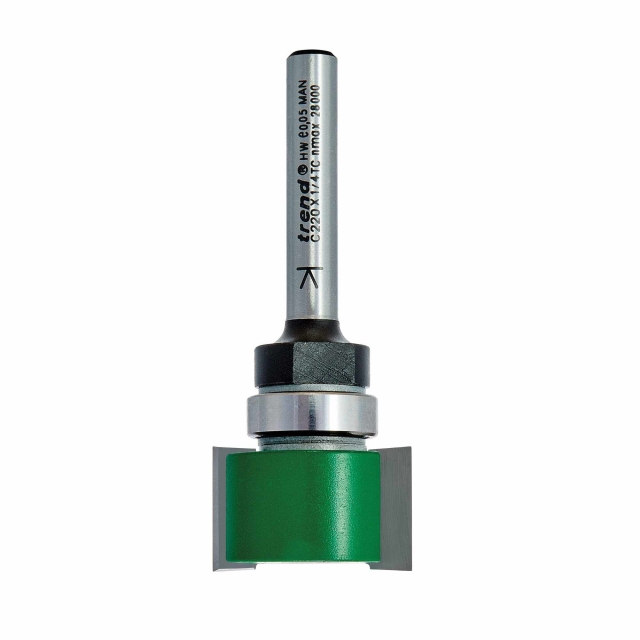

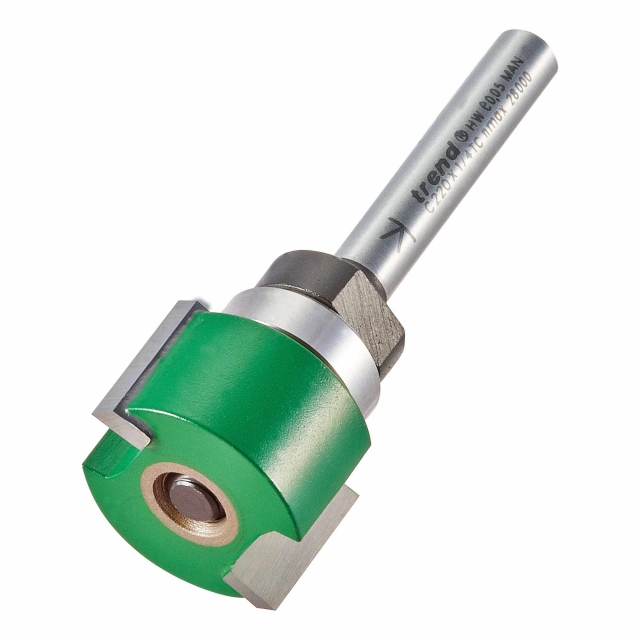

TREND C220X1/4TC Intumescent Cutter 24mm x 15mm
Part No: C220X1/4TC(TRENDC220X1/4TC)

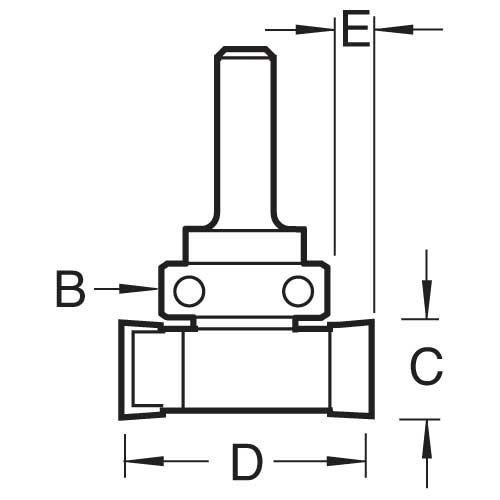

C220X1/4TC Technical Specifications
- D: 24 mm
- C: 15 mm
- B: 16 mm
- E: 4 mm
- Shank Diameter: 1/4 inch
- Overall Length: 63 mm
- Fire Check: 45 minutes
TREND C220X1/4TC Intumescent Cutter 24mm x 15mm
Sorry, we are out of stock
C220X1/4TC Key Features

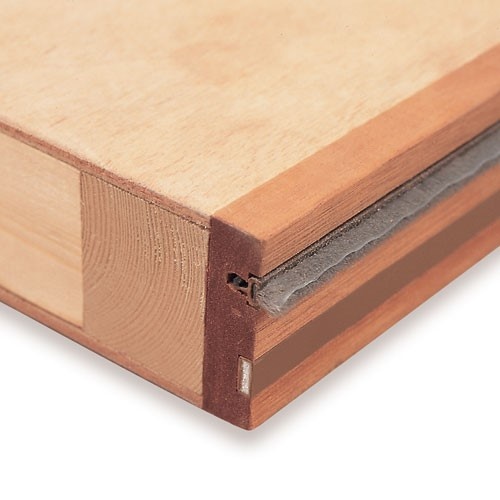

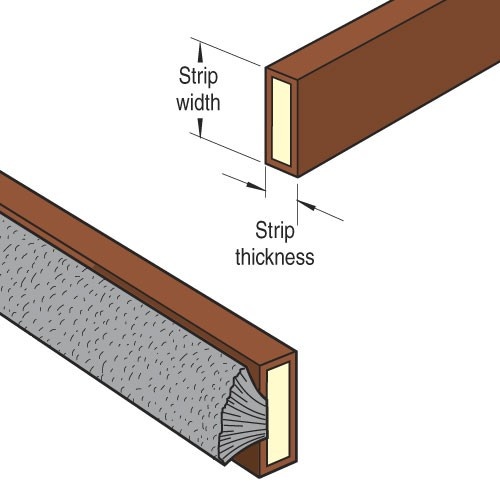

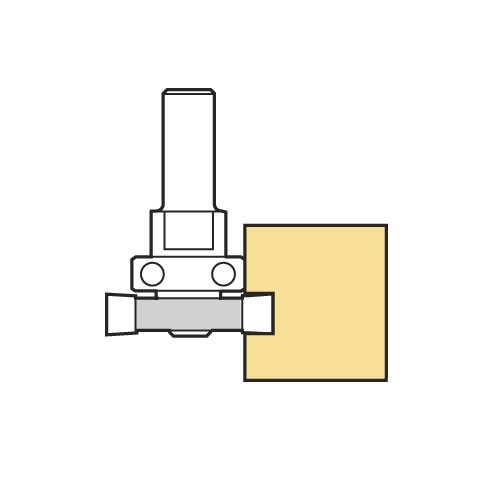

- Cuts the perfect sized slot into door edges and door frames for fast, perfectly flush fitting of intumescent strip.

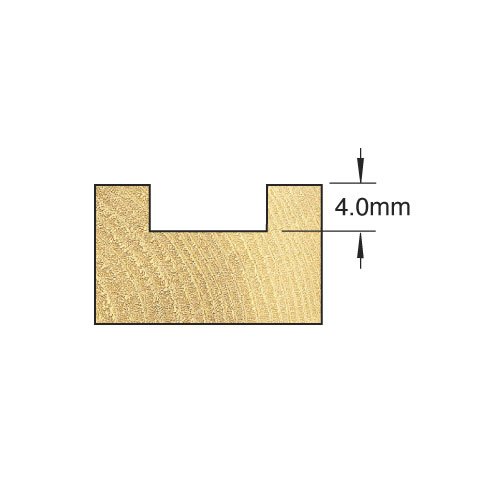

- Bearing guide ensures the correct 4mm depth and 15mm width is always achieved to meet Fire Regulations.

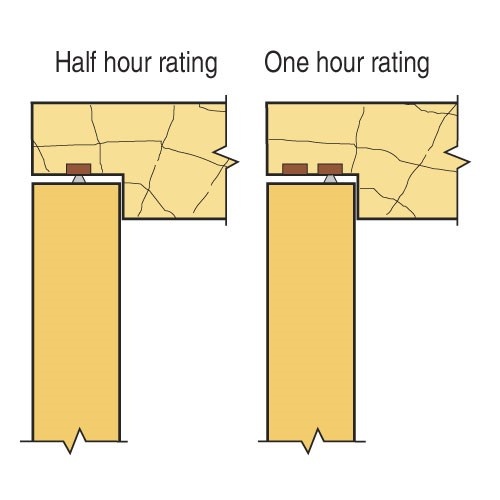

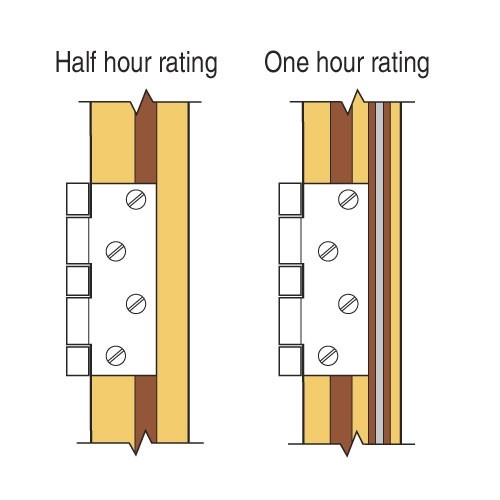

- 1/4 inch shank, ideal for easy control with smaller routers. Position of groove can be altered with the router plunge for correct setting for 45 minutes fire and smoke protection.
- PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
- 1/4 inch shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
C220X1/4TC What’s Included
- Shank Size: 1/4"
- Type: Slotting and Grooving, Weatherseal and Intumescent
