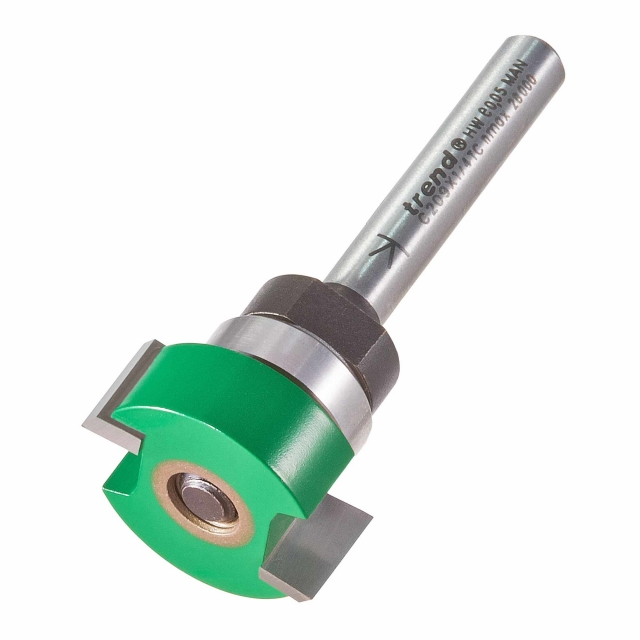

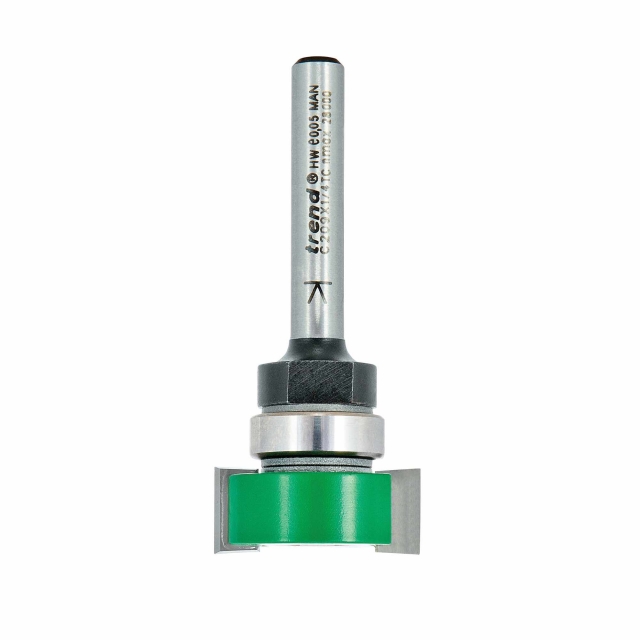

TREND C209X1/4TC Intumescent Cutter 24mm x 10mm
Part No: C209X1/4TC(TRENDC209X1/4TC)

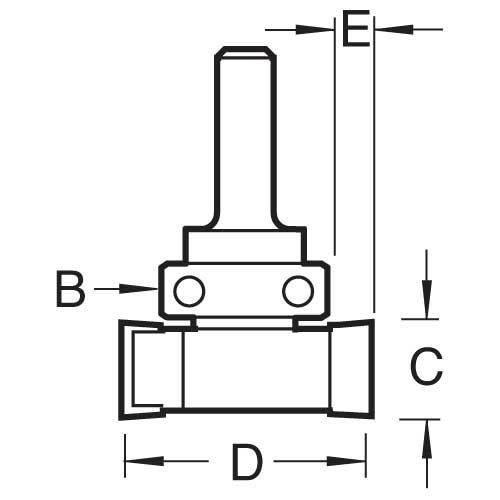

C209X1/4TC Technical Specifications
- D: 24 mm
- C: 10 mm
- B: 16 mm
- E: 4 mm
- Overall Length: 58 mm
- Shank Diameter: 1/4 inch

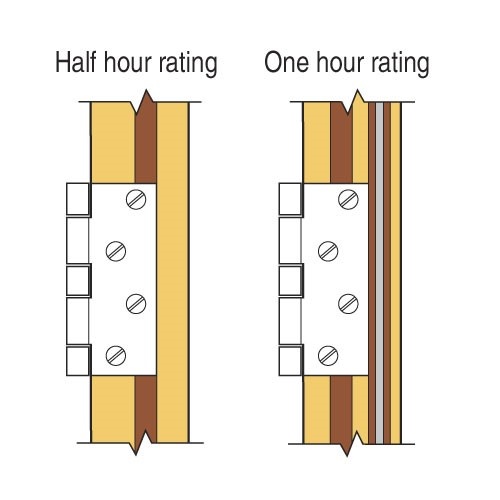

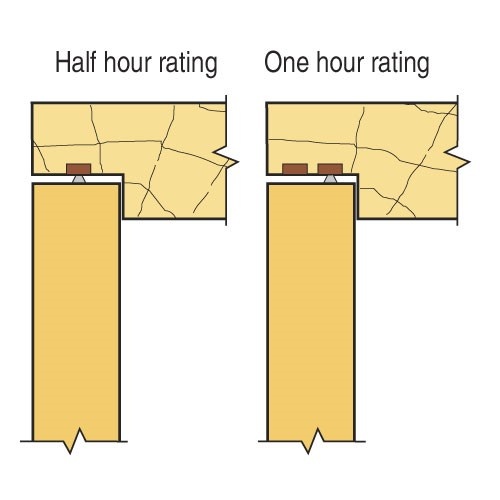

- Fire Check: 30 minutes
TREND C209X1/4TC Intumescent Cutter 24mm x 10mm
Sorry, we are out of stock
C209X1/4TC Key Features

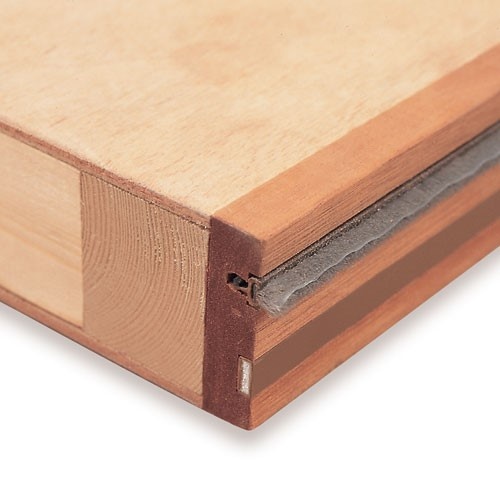

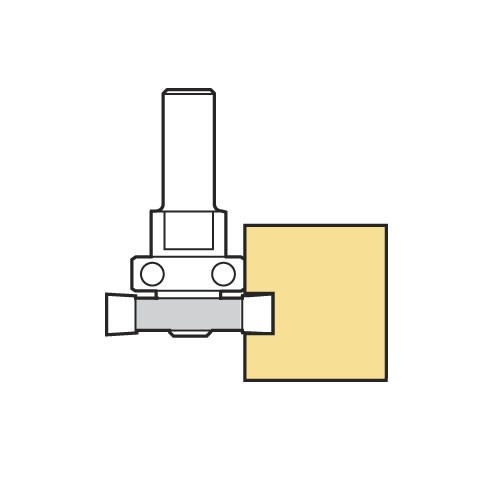

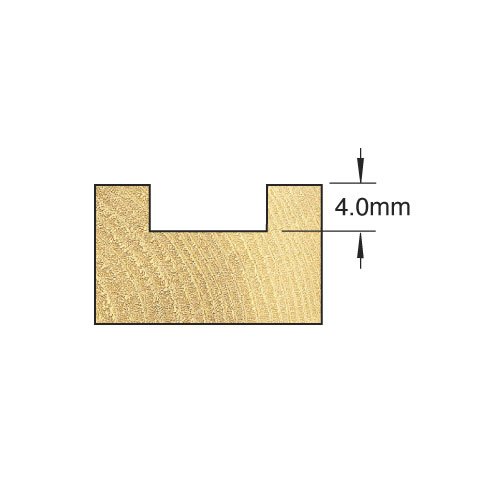

- Bearing guided intumescent strip cutter for routing the groove for intumescent strip in a frame or door

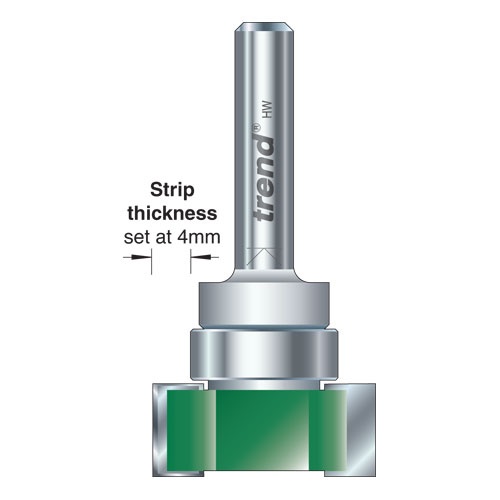

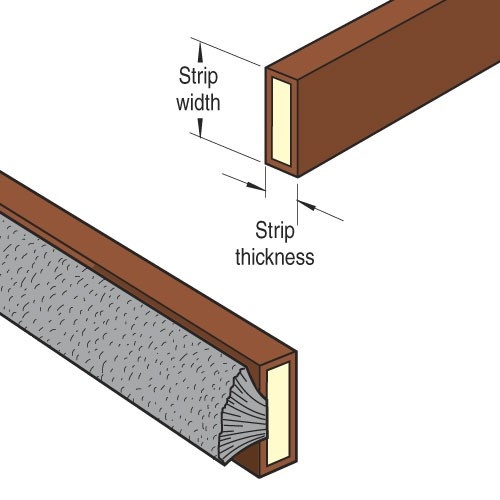

- Two sizes available to suit 4mm thick strip of widths 10mm or 15mm
- Intumescent strip is used to create an effective barrier to both fire and smoke
- Choose alternative bearings to suit other thicknesses of intumescent strip
C209X1/4TC What’s Included
- Shank Size: 1/4"
- Type: Slotting and Grooving, Weatherseal and Intumescent
