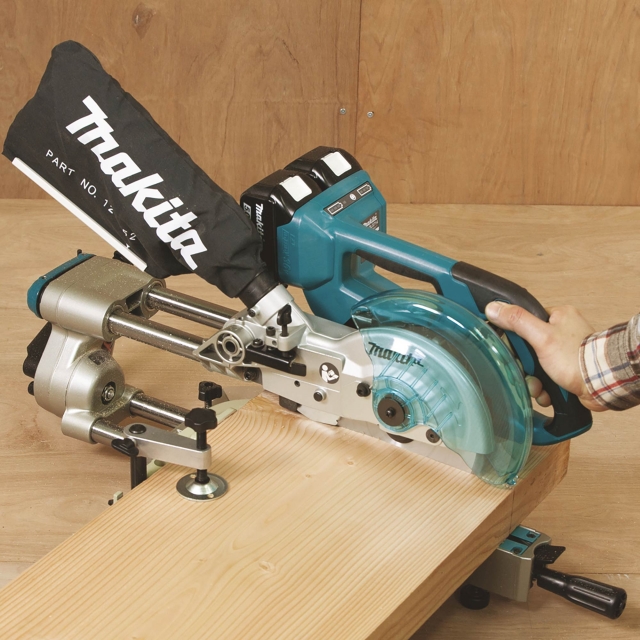

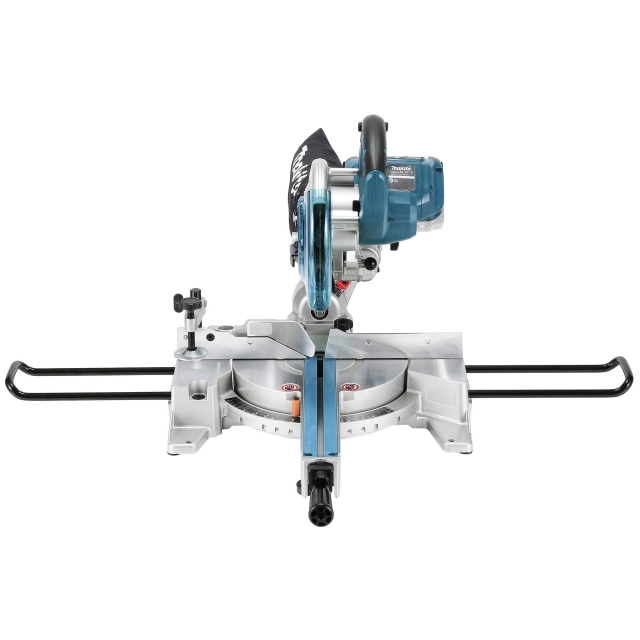

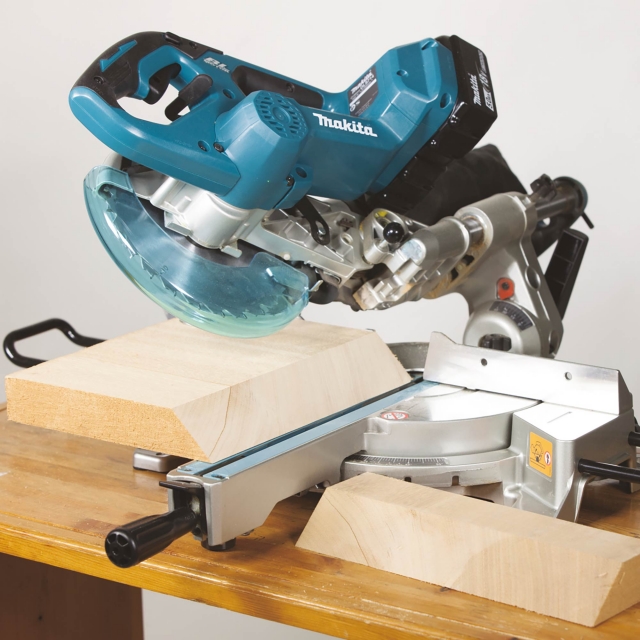

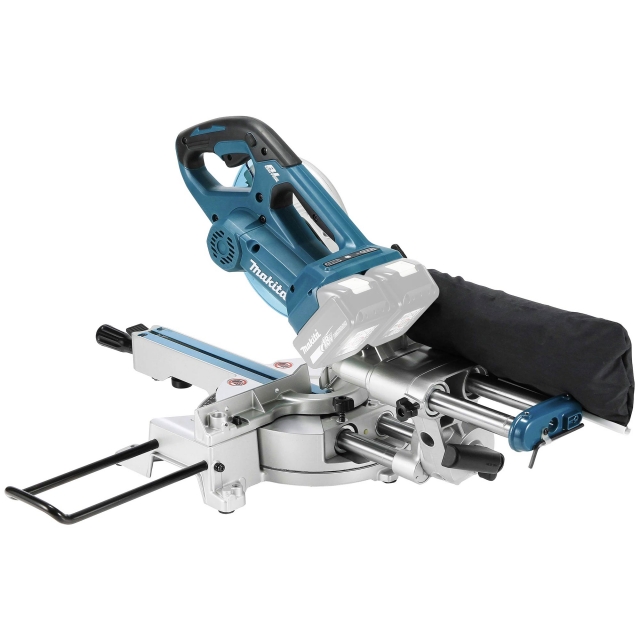

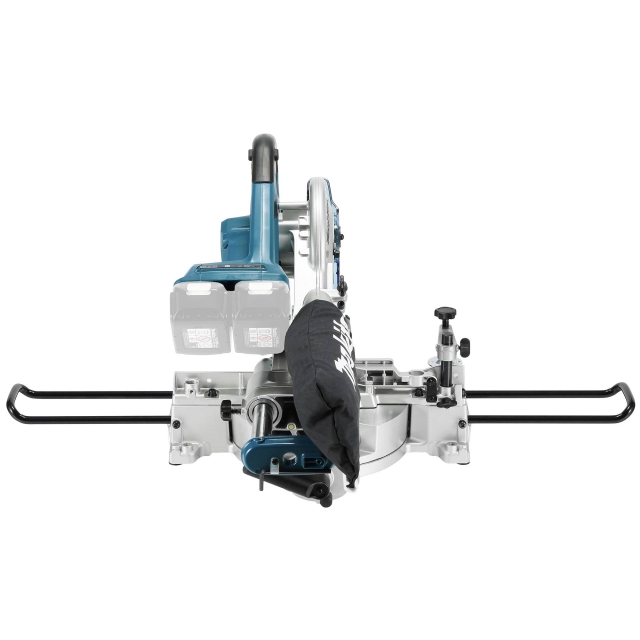

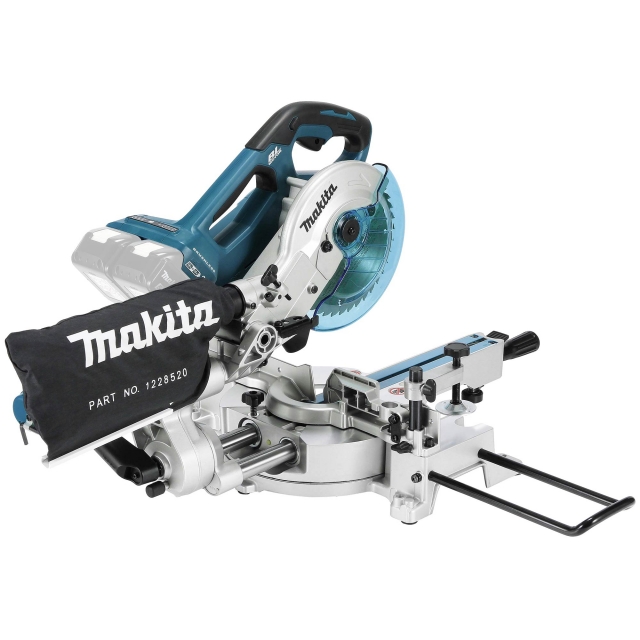

MAKITA DLS714NZ Twin 18v (36v) Mitre Saw BODY ONLY

DLS714NZ Product Overview

The Makita DLS714NZ is a 190 mm cordless slide compound Mitre Saw powered by two 18v Li-ion batteries in series. With a maximum speed of 5,700 rpm it is comparable to corded tools in terms of power. With a cutting capacity of 52 x 300 mm, this is a Mitre Saw you can rely on.

Part No: DLS714NZ(MAKPDLS714NZ)

DLS714NZ Technical Specifications

  • Voltage: 36v (18x2)
  • Battery Type: Lithium-ion
  • Body Only Machine: Yes
  • Blade Diameter: 190 mm
  • Bore Diameter: 20 mm
  • No Load Speed: 5700 rpm
  • Max Bevel Range: 45 - 5°
  • Max Mitre Range: 47 - 57°
  • Noise Sound Pressure: 88 dB(A)
  • Noise Sound Power: 97 dB(A)
  • Noise K Factor: 3 dB(A)
  • Vibration K Factor: 1.5 m/sec²
  • Vibration No Load: 2.5 m/sec²
  • Net Weight: 13 - 13.5 kg

MAKITA DLS714NZ Twin 18v (36v) Mitre Saw BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
in stock In stock

DLS714NZ Key Features

  • Powered by two 18V Li-ion batteries in series to supply energy to the powerful 36V DC motor drive system.
  • Brushless motor
  • Double Sliding Mechanism
  • Soft start
  • Easy to Grip handle with anti-slip elastomer surface
  • LED indicator panel for battery fuel and indication of automatic speed control
  • Electric brake
  • Equipped with Battery protection circuit: designed to protect the battery from damages due to overdischarge, high temperature or overload current.
  • Cuts up to 300mm in a singe pass

DLS714NZ What’s Included

  • 190mm 24T Saw Blade
  • Dust Bag
  • Triangular Rule
  • Vise Assy
  • Hex Wrench 5
  • Holder Assembly
  • This is a Body Only machine, which is not supplied with a battery or charger.
  • This item may be supplied in unbranded packaging
  • Number of Batteries Supplied: 0
  • Voltage: 36v
  • Type: Brushless
  • Size: 190mm
ExpertOur Expert Says…

The DLS714NZ Mitre Saw from Makita enables the user to cut timber as fast as a mains powered slide compound mitre saw but without the need for a mains power supply. It features soft-start, a battery fuel gauge, an electronic blade brake and soft, elastomer carry grip. With its single bevel facility allowing for 45 ° to the left, 5 ° can also be achieved to the right for small alterations and corrections in cutting.

This is a Makita Body Only tool, which is supplied without batteries and a charger.

Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Mitre Saw?

Cordless Mitre Saws are an essential for anyone who regularly needs to make precise, accurate cuts. The trick is to identify which machine best meets your needs. There is a lot to consider in terms of the features available, including the maximum mitre range, which determines the range of angles you can cut with the tool, the maximum bevel range, which indicates how much the saw can tilt either to the left and / or the right, which reduces the need to turn your workpiece while cutting.

The blade diameter and bore are important considerations, as these will impact on the cuts you can make and the range of additional blades you can purchase for your Mitre Saw. In addition, you should consider the speed at which the blade rotates and the weight of the tool, as these will impact on the control you have over the saw when using it.

Which is better: brushless or brushed saws?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.

However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

The voltage of your Cordless Mitre Saw will be influenced by how and when you will make most use of it. For professionals in the trades, the Makita 40v Max range provides up to 4,800 rpm plus a cutting capacity of 70 x 312 mm and the DeWalt 54v FlexVolt range will give you 6,300 rpm of No Load Speed and a cutting capacity of 62 x 270 mm. However, the 40v and 54v batteries are larger and heavier than an 18v equivalent, which needs to be taken into account if you’ll be moving the Mitre Saw regularly.
