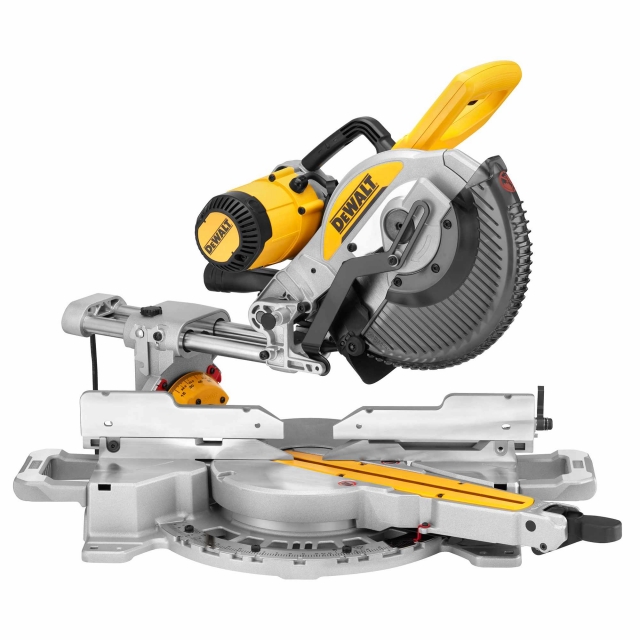

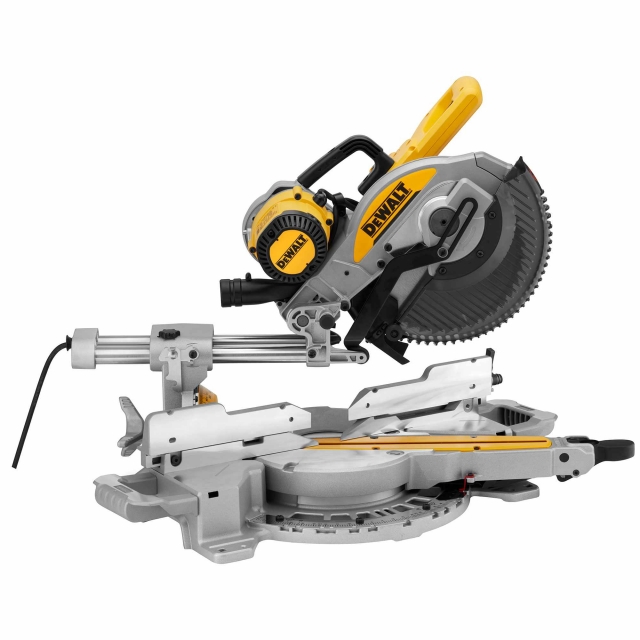

DEWALT DWS727 240v 1675w 250mm Slide Mitre Saw
DWS727-GB Product Overview
The DWS727 Double Bevel Slide Mitre Saw with XPS cross cut positioning system for increased accuracy and visibility, unlike a laser system it does not require any calibration. The grooving stop allows for adjustment of the cutting depth, ideal for grooving and rebating applications. Whilst the cam action, mitre lock function, makes mitre setting faster and easier, allowing the user to quickly adjust angles between 0-50° left and 0-60° right.
Part No: DWS727-GB(DEWPDWS727)
DWS727-GB Technical Specifications
- Power Source: Corded
- Power Input: 1675w
- No Load Speed: 4300 rpm
- Blade Diameter: 250 mm
- Blade Bore: 30 mm
- Bevel Capacity: 49/49°
- Mitre Capacity: 60/50°
- Cutting Capacity ay 90°/90° (W x H): 305 x 77 mm
- Cutting Capacity ay 90°/45° (W x H): 305 x 50 mm
- Cutting Capacity ay 45°/90° (W x H): 210 x 77 mm
- Cutting Capacity ay 45°/45° (W x H): 210 x 50 mm
- Max Depth of Cut: 150 mm
- Weight: 23 kg
DEWALT DWS727 240v 1675w 250mm Slide Mitre Saw
DWS727-GB Key Features
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
- Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the jobsite
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. Includes integrated short stop for repetitive cuts
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 305 mm wide
- Quick release bevel setting provides accurate and simple setting of bevel angles up to 48° left and right
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
- AIRLOCK compatible dust extraction improves cut line visibility and provides cleaner and safer jobsites
- ToolConnect tag ready (tag not supplied)
DWS727-GB What’s Included
- Blade
- Material Clamp
- Voltage: 240v
- Size: 250mm
