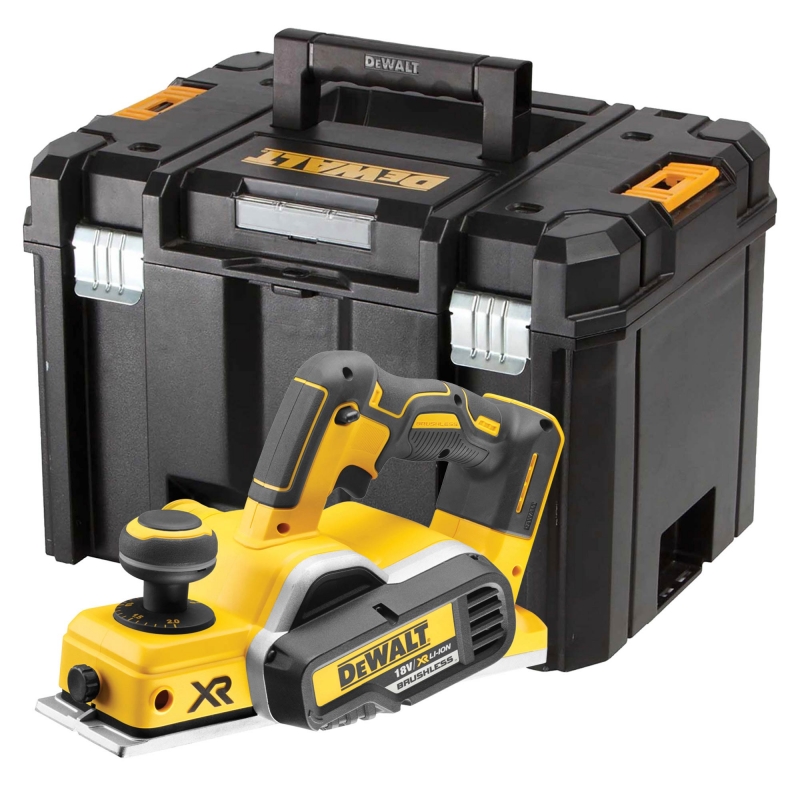

DEWALT DCP580NT 18v Brushless Planer BODY + TSTAK Case

DCP580NT Product Overview

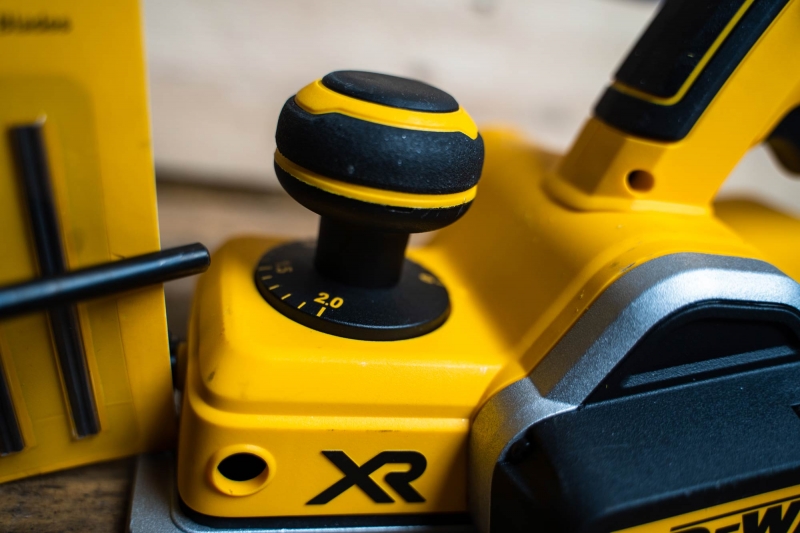

The DeWalt DCP580NT has a brushless motor, making it an efficient andcost-effective planer that will last for years to come. It will accept anyDeWalt 18V XR Li-ion batteries so you can mix and match with existing tools. The DCP580N has twin blades for a smoother finish, market-leading rebate capacity, increased runtime and a precision 0.1 mm depth adjustment. With onboard blade/torx key storage and an airlock port, this is a great all-round performer.


DCP580NT Technical Specifications

  • Battery Chemistry: XR Li-Ion
  • Voltage: 18 v
  • Battery Capacity: N/A
  • No Load Speed: 15,000 rpm
  • Maximum Depth of Cut: 2 mm
  • Rebating Depth: 9 mm
  • Planer Width: 82 mm
  • Shoe Length: 295 mm
  • Drum Diameter: 48 mm
  • Weight: 2.5 kg
  • Length: 370 mm
  • Hand/Arm Vibration: 2.5 m/s²
  • Uncertainty K 1 (Vibration): 1.5 m/s²
  • Sound Pressure: 88 dB(A)
  • Sound Pressure Uncertainty: 3 dB(A)
  • Sound Power: 99 dB(A)
  • Sound Power Uncertainty: 3 dB(A)

DEWALT DCP580NT 18v Brushless Planer BODY + TSTAK Case

Great news! Buying this product qualifies you for
unavailable Sorry, we are out of stock

DCP580NT Key Features

  • Powerful brushless motor provides smooth planing performance combined with extended runtime
  • Lightweight, compact and ergonomic design for comfortable use in all orientations
  • Large twin blade drum with TCT blades for high quality surface finish
  • On-board blade storage and Torx key enable fast blade change and minimise downtime
  • Large front and rear shoe for improved stability
  • Compatible with AirLock dust extraction system

DCP580NT What’s Included

  • TSTAK Carry Case

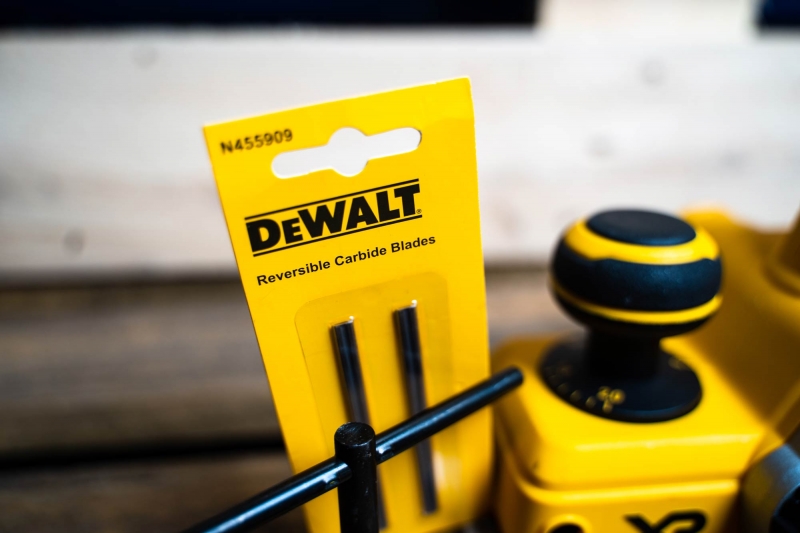

  • TCT Planer Reversible Blades
  • Chip Deflector and High Capacity Collasible Collection Container
  • Dust Extraction Spout
  • Parallel Fence
  • Torx Key

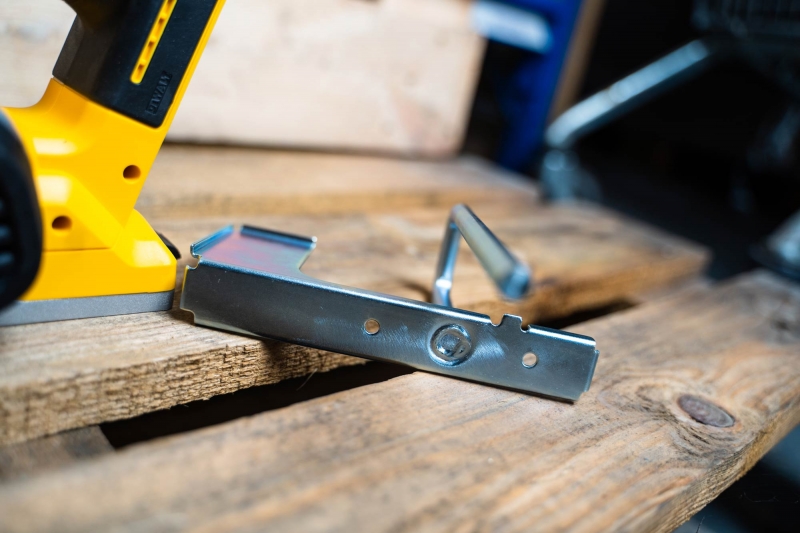

  • Blade Alignment Plate
  • This is a Body Only machine, which is not supplied with a battery or charger.
  • Number of Batteries Supplied: 0
  • Voltage: 18v
  • Type: Brushless
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
What should I look for when buying a Cordless Planer?

Cordless Planers are fantastic for woodworkers or on the construction site when you have to shave or shape wood to a smooth, flat finish. One of the most important things to look out for when choosing a planer is the No Load Speed, which tells you how many times the blade(s) with the planer will spin in a minute. You should also check the planning width; this tells you the maximum width the planer can cut in a single pass.  The planning depth will show you how deep each pass can go. It is also worth looking at whether the planer has adjustable cutting speeds and depths. From a safety perspective, it’s always good to know whether the machine you’re considering has a Chip Direction Switch, so you can keep debris away from your face and body

Which is better: brushless or brushed planers?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.

However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

The majority of Cordless Planers in our range use 18v batteries, which combine portability with power. With major brands including DeWalt and Makita available, we’re sure to have the right option for you.
