DEWALT DCD740N 18v XR Angle Drill Drive BODY ONLY

DCD740N-XJ Product Overview

The DeWalt DCD740N boasts an ultra compact, lightweight design which allows for drilling and screw driving applications in confined spaces. The multi grip trigger provides comfort and convenience by allowing the user to operate the trigger from various positions. This tool is supplied without a battery or charger.

Part No: DCD740N-XJ(DEWPDCD740N)

DCD740N-XJ Technical Specifications

  • Voltage: 18 v
  • Max Torque (Hard): 33 Nm
  • Max Torque (Soft): 11 Nm
  • Power Output: 360 Watt
  • No Load Speed: 0 - 650 / 2000 rpm
  • Chuck Capacity: 1 - 10 mm
  • Max. Drilling Capacity [Wood]: 28 mm
  • Max. Drilling Capacity [Metal]: 10 mm
  • Weight: 1.3 kg
  • Length: 295 mm
  • Height: 102 mm
  • Width: 67 mm
  • Hand/Arm Vibration - Metal: 3.5 m/s²
  • Uncertainty K 1 (Vibration): 1.5 m/s²
  • Sound Pressure: 76 dB(A)
  • Sound Pressure Uncertainty: 3 dB(A)
  • Sound Power: 87 dB(A)
  • Sound Power Uncertainty: 3 dB(A)

DEWALT DCD740N 18v XR Angle Drill Drive BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
in stock In stock

DCD740N-XJ Key Features

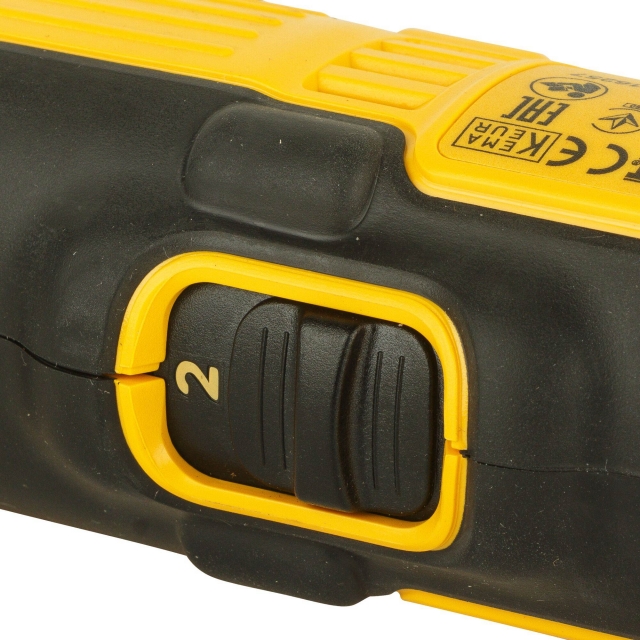

  • Two speed settings with reverse switch
  • Compact 10mm single sleeve keyless chuck with automatic spindle lock for quick and easy bit change
  • Ergonomic handle and rubber over mould to provide ultimate end user comfort
  • Multi grip trigger provides comfort and convenience by allowing the user to operate the trigger from various positions
  • High performance fan cooled motor for maximum power and durability
  • All metal gearing and right angle transmission for efficient power transmission and longer tool life
  • LED with delay for improved visibility
  • Steel belt clip and tough magnetic bit holder ensures strong storage solutions

DCD740N-XJ What’s Included

  • Belt Clip
  • This is a Body Only machine, which is not supplied with a battery or charger.
  • This item may be supplied in unbranded packaging
  • Number of Batteries Supplied: 0
  • Voltage: 18v
ExpertOur Expert Says…

With an impressive maximum torque of 33 Nm, this drill makes light work of wood and metal and, at just 1.3 kg, it's easy to move around. A comfortable rubber-coated grip and powerful fan-cooled motor make the DCD740N easy to use over longer periods, while an electric brake prevents overdriving. A 10 mm keyless chuck makes fitting drill bits simple, and a handy LED light brightens up darker areas.

This DeWalt Cordless Power Tool is compatible with XR Li-ion batteries and comes complete with an automatic spindle lock. It is supplied Body Only and doesn't come with a battery and charger.

Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Angle Drill?

Angle Drills are the go-to tool when you need to get into a tight space and a traditional drill is just too big for the job. An Angle Drill has a short driving section and long handle with the screw head set at 90 degrees to the handle.
Think about the maximum drilling capacity each drill is capable of, as this effects how efficiently you can work.
The No Load Speed can give you an indication of how powerful the tool is, which can be an important consideration when working continuously with a single machine. Another thing to consider is whether you want a tool with a keyless chuck to speed up bit changes.

Which is better: brushless or brushed tools?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

Our range of Cordless Angle Drills starts with 12v machines, but the increased power and relative affordability of 18v tools means this has become the industry standard, particularly as the 18v machines offer much more power without a huge increase in tool size.
