TREND LOCK/JIG/B Adjustable Trade Lock Jig

Part No: LOCK/JIG/B(TRENDLOCK/JIG/B)

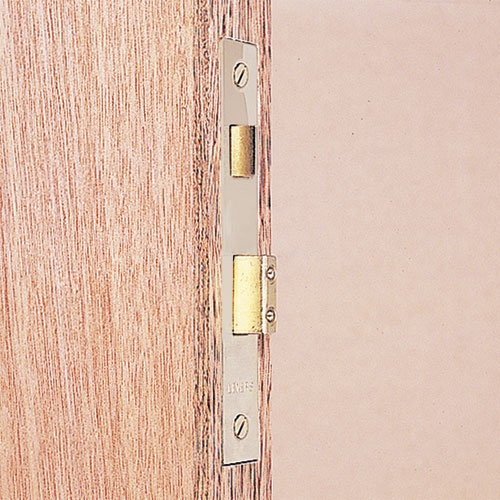

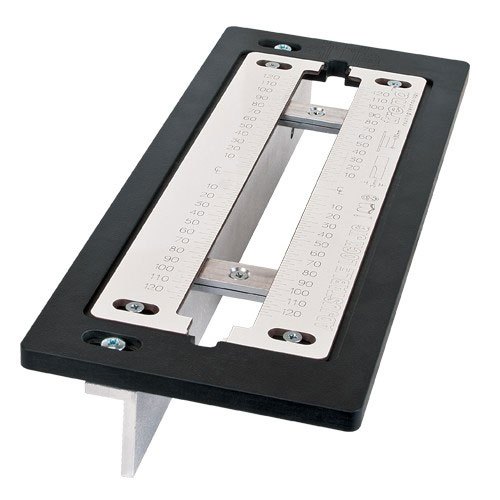

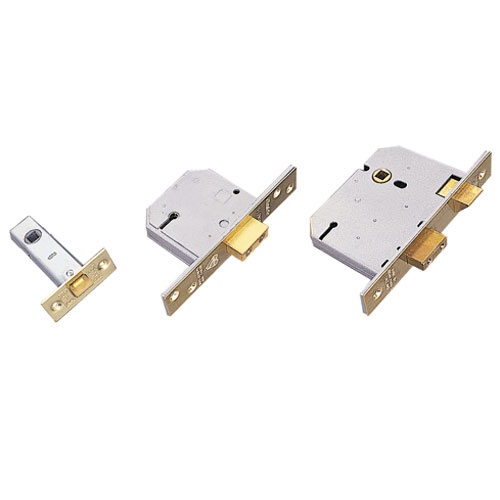

• Trade jig with adjustable sliding inserts to allow faceplate and mortise recesses for popular size door locks to be routed with a plunge router
• Fully adjustable for lock face plate length up to 250mm

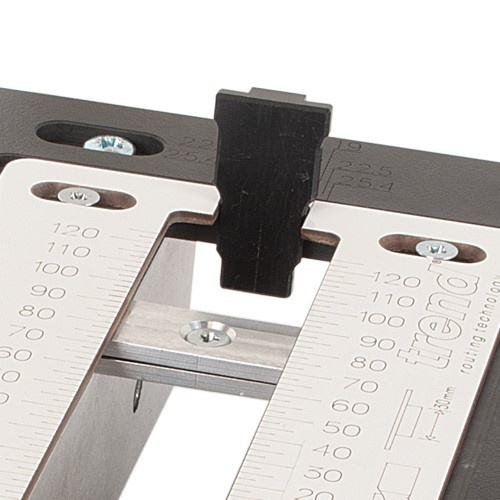

• Quick and easy to set up using engraved lines for lock size and door sizes
• Fast, clean & accurate results on doors even in hardwood

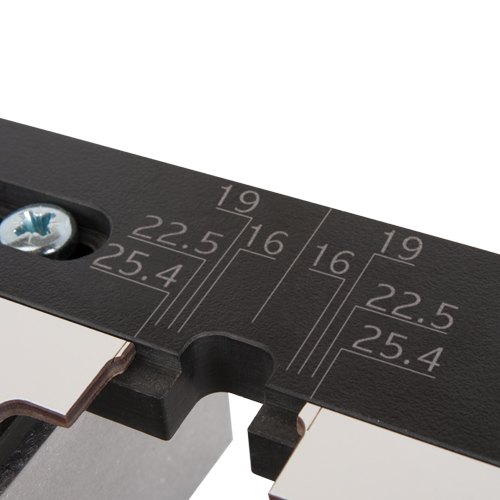

• Engraved for 16mm and 19mm lock width and 22.5mm and 25.4mm face plate widths
• Measuring required for other lock widths
• Engraved on underside to allow set up for 35mm, 40mm, 44mm and 54mm door widths
• Deeper mortises can be achieved with a suitable size of auger bit
• Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm
• Includes a pair of setting blocks for specific lock widths and to aid door centring
• The jig requires a 1/2-inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 10mm spigot, 12mm diameter long reach cutter and two quick action clamps
• A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise

• Door thickness min.: 30 mm
• Door thickness max.: 80 mm

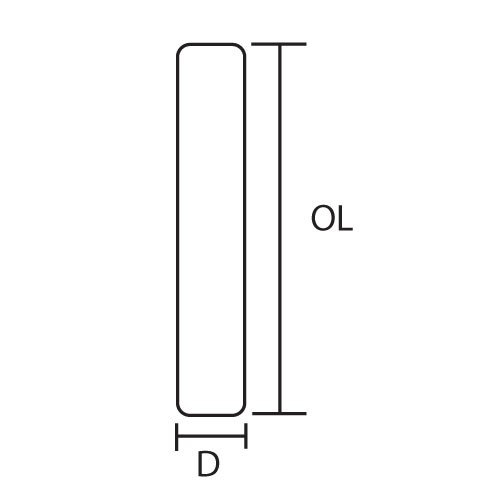

• Faceplate length min. (OL): 30 mm
• Faceplate length max. (OL): 250 mm
• Face plate width engraved size (D):
• Width: 22.5 mm
• Width: 25.4 mm (1 inch)
• Mortise width engraved size (D):
• Width: 16 mm (5/8 inch)
• Width: 19 mm (3/4 inch)
