TREND H/JIG/A Contractor Two Part Hinge Jig
Part No: H/JIG/A(TRENDH/JIG/A)
H/JIG/A Technical Specifications
Hinge sizes possible:
- Length min.: 2 5/8" (67 mm)
- Length max.: 5" (127 mm)
- Width min.: 3/8" (9.5 mm)
- Width max.: 1 3/8" (35 mm)
- Width max. in 35mm rebate: 20 mm
- Width max. in 44mm rebate: 30 mm
Door sizes possible:
- Height min.: 6' 5" (1955 mm)
- Height max.: 2100 mm*
- Thickness min.: 5/8" (16 mm)
- Weight: 3.3 kg

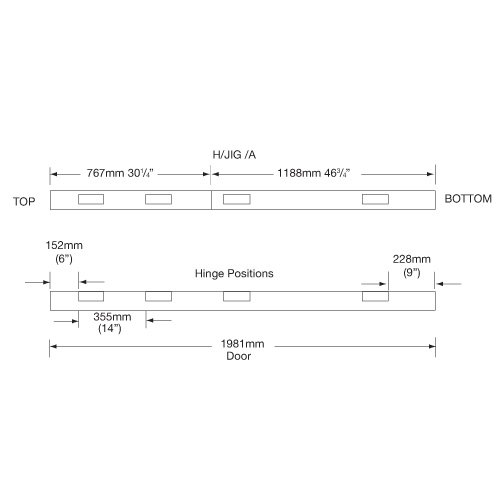

- Jig overall length: 1957 mm
- Fixed stop max. thickness: 25 mm
* Please note for doors over 2040 mm the bottom hinge will be higher than 9" up.
TREND H/JIG/A Contractor Two Part Hinge Jig
Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
Sorry, we are out of stock
H/JIG/A Key Features

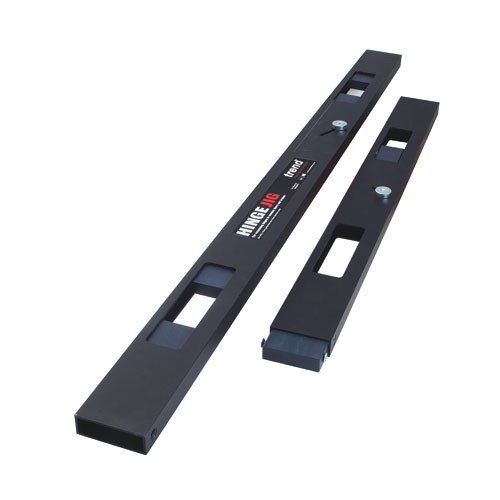

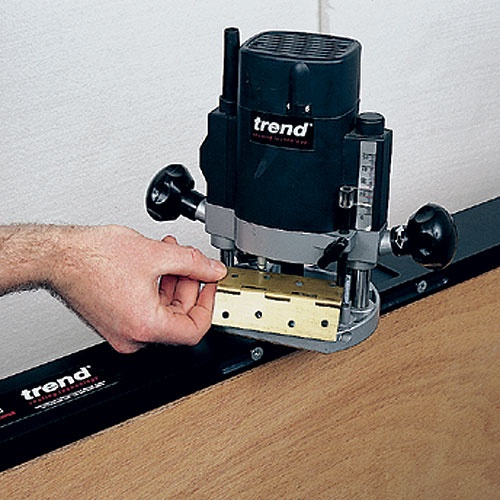

- The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly
- Used on-site & in joinery shops to increase productivity with excellent results
- Four apertures for fire door requirements
- No need for marking out in the conventional way

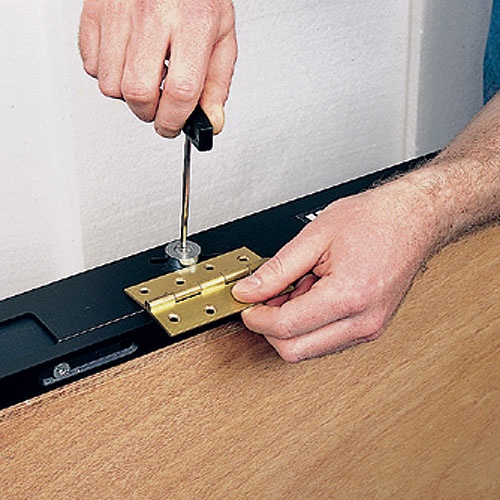

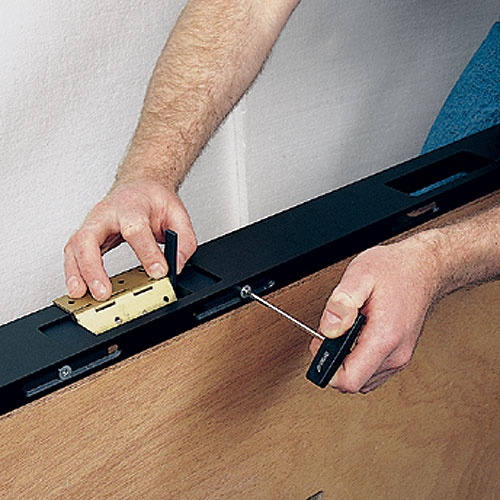

- Quick & simple to set-up as the hinge is used as the pattern
- Clean & accurate recesses are achieved every time
- Suitable for timber based doors & square butt hinges
- Can be used on both inside and outside doors, and on maximum 25mm thick fixed stops

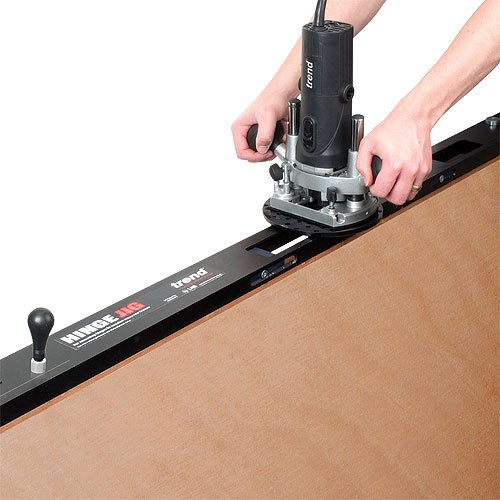

- Use with a light duty plunge router with 1/4 inch collet
- Long reach router cutter required, 12mm diameter with 70mm overall length
- Angled position slots to prevent creep
- Unibase may be needed
- T4EK router requires a Ref UNIBASE or special guide bush Ref GB/T4/160
H/JIG/A What’s Included
- Type: Door Jigs
