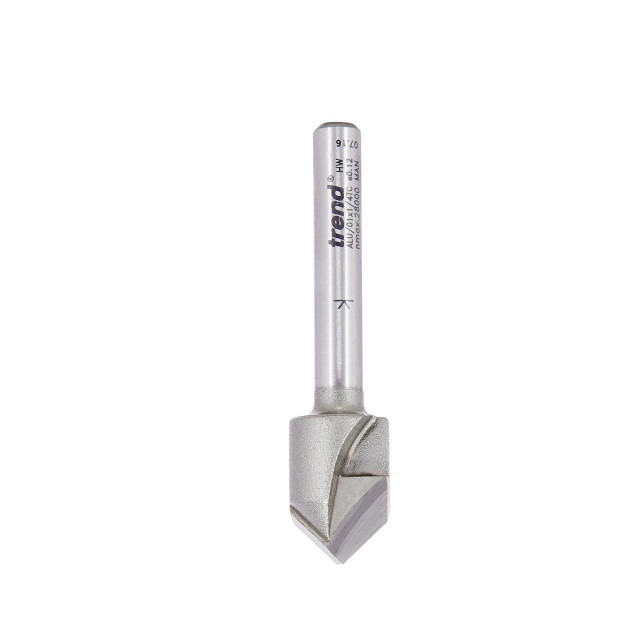

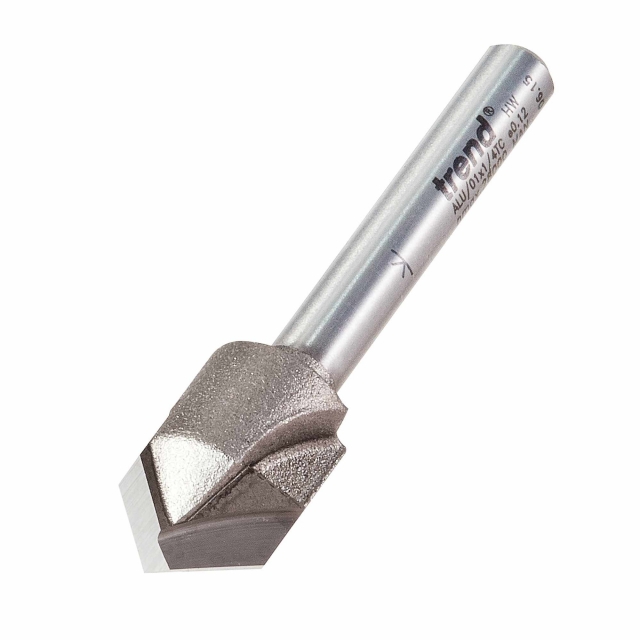

TREND ALU/01X1/4TC Alucobond 45deg 13mm x 10mm
Part No: ALU/01X1/4TC(TRENDALU/01X1/4TC)

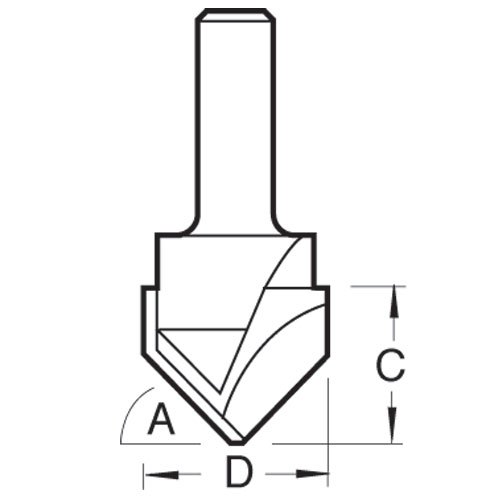

ALU/01X1/4TC Technical Specifications
- D: 13 mm
- C: 10 mm
- Overall Length: 57 mm
- A: 45 degrees
- Shank Diameter: 1/4 inch
TREND ALU/01X1/4TC Alucobond 45deg 13mm x 10mm
Hurry, low stock
ALU/01X1/4TC Key Features

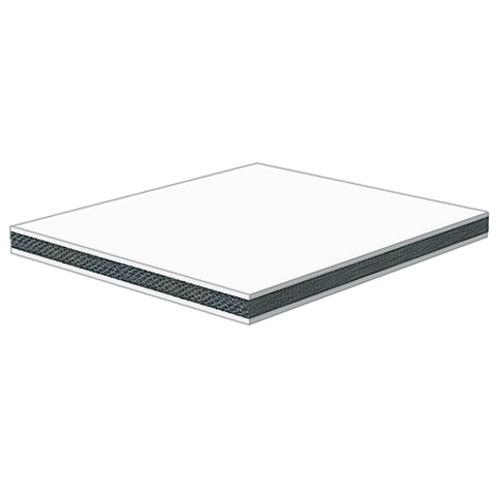

- Specially designed tools for aluminium composite cladding material such as Alucobond, Dibond which comprises an aluminium cover with polyethylene core

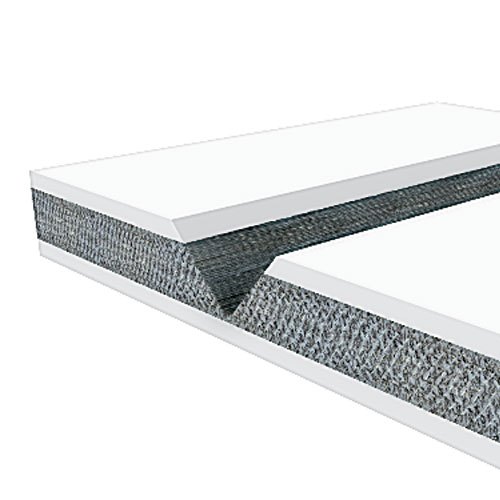

- The v groove cutters rout into the cover and part of the core to allow folding of material by hand

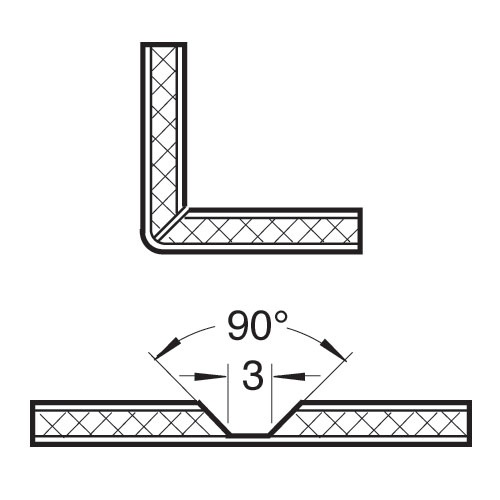

- Ref ALU/01 has a 90 degree included angle with 3mm flat at base and is used to create 90 degree fold
- Use at 12000-15000 RPM, feed speed 400 - 600mm/min
- depending on thickness and machine (CNC machine or hand)
- Cooling is not required
ALU/01X1/4TC What’s Included
- Shank Size: 1/4"
- Type: Composites
