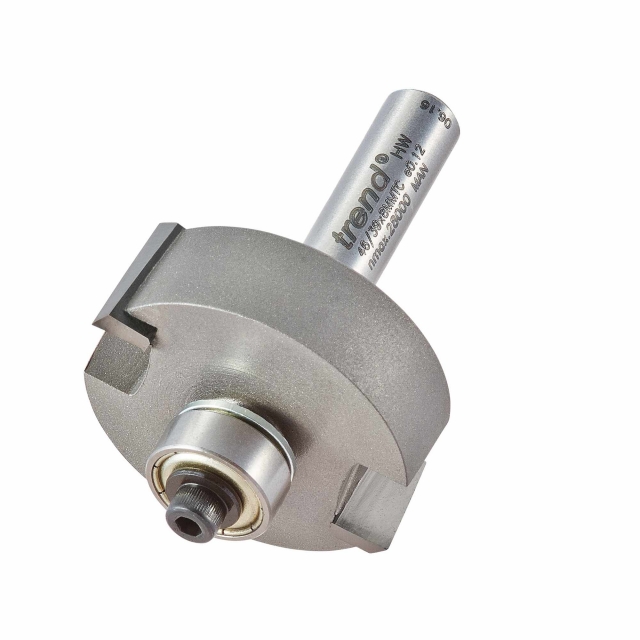

TREND 46/39X8MMTC Bearing Guided Rebate Set 35mm x 12.7mm

Part No: 46/39X8MMTC(TREND46/39X8MMTC)

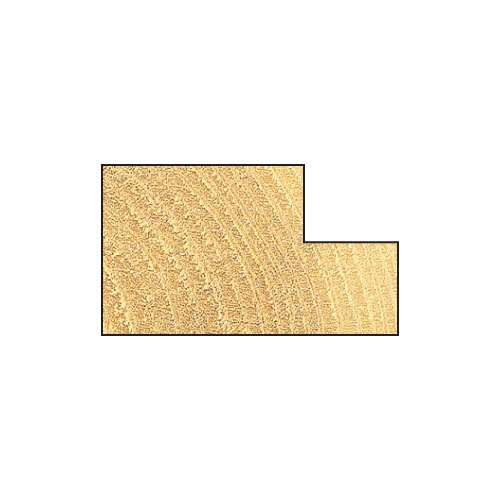

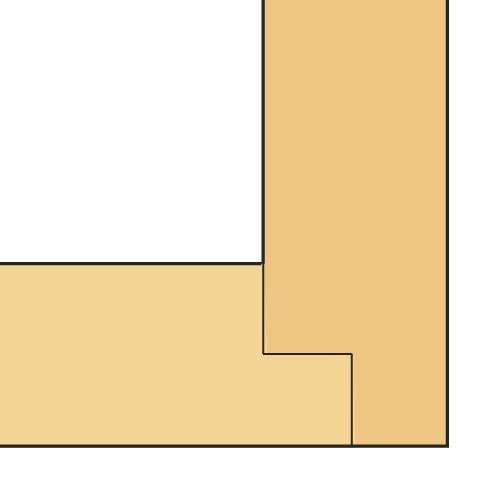

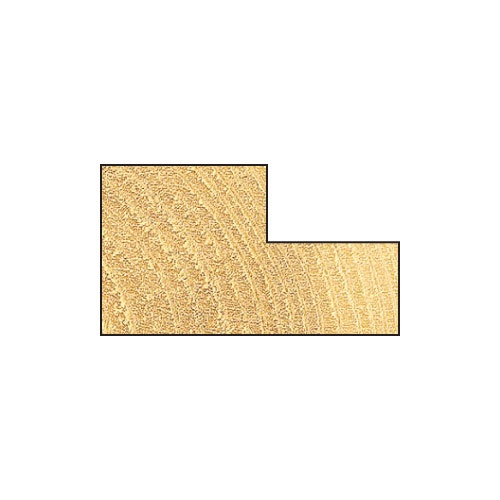

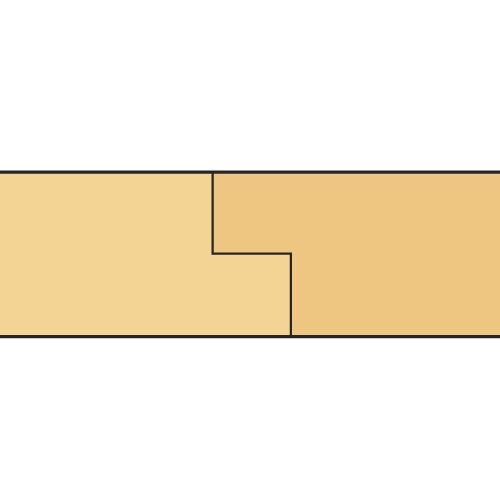

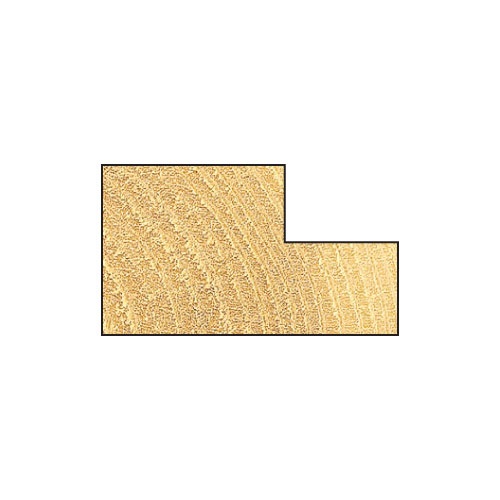

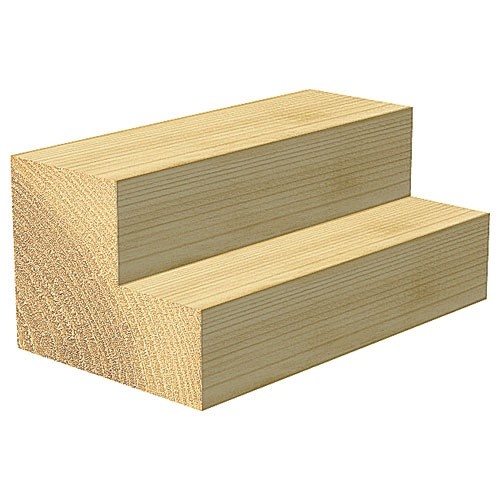

• Popular rebate sets which include different size bearings for a choice of rebates
• Ease of setting-up and accurate depth of cut

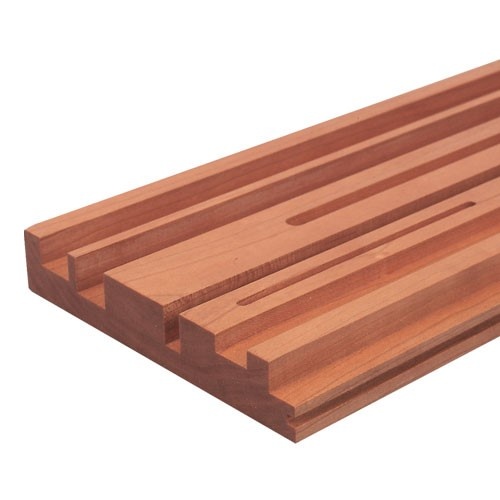

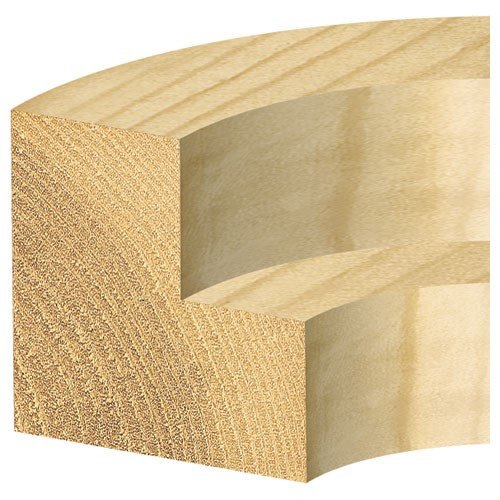

• Ideal for rebating straight and shaped work pieces
• Ref 46/39L has a 60mm shank length to give access to deep rebates
• Ref 46/44 is ideal with delicate applications such as musical instrument production, when a small rebate is required for insertion of purfling
• When using bearing Ref B95A, make two passes when a full depth of cut is required by using a larger bearing first

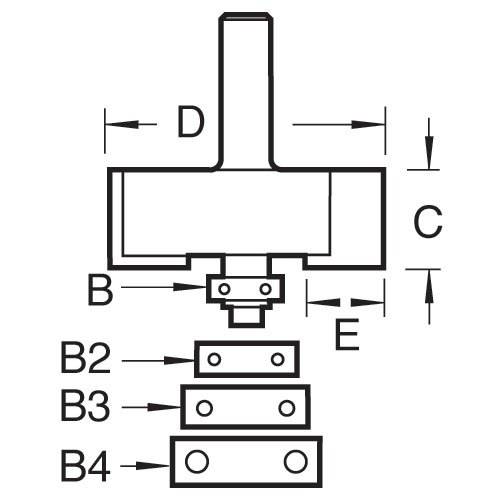

• D: 35 mm
• C: 12.7 mm
• B: 9.5 mm
• B2: 12.7 mm
• B3: 16 mm
• B4: 19 mm
• Shank Diameter: 8 mm
• Rebate E:
• B19A:7.9 mm
• B16A: 9.5 mm
• B127A: 11.1 mm
• B95A: 12.7 mm
