METABO MFE40 240v Wall Chaser + ASR35MACP 240v Dust Extractor
UK604040596 Product Overview
Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm and paied with the ASR35MACP Dust Extractor, makes your work environment virtualy dust free
Part No: UK604040596(METPUK604040596)
UK604040596 Technical Specifications

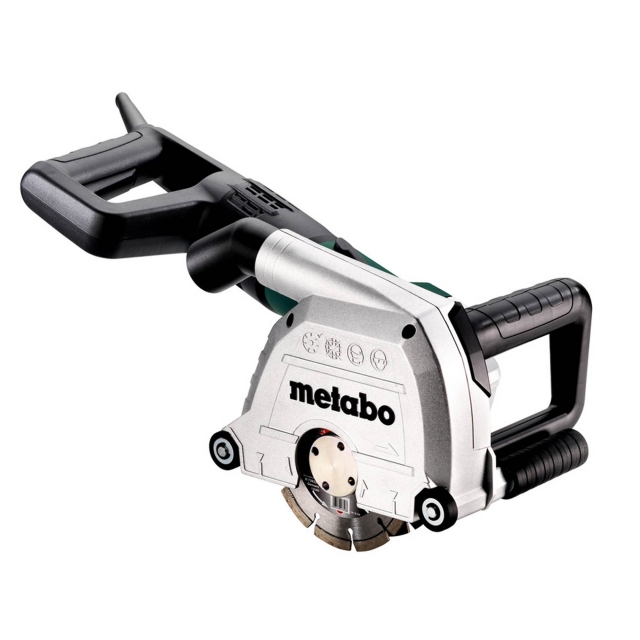

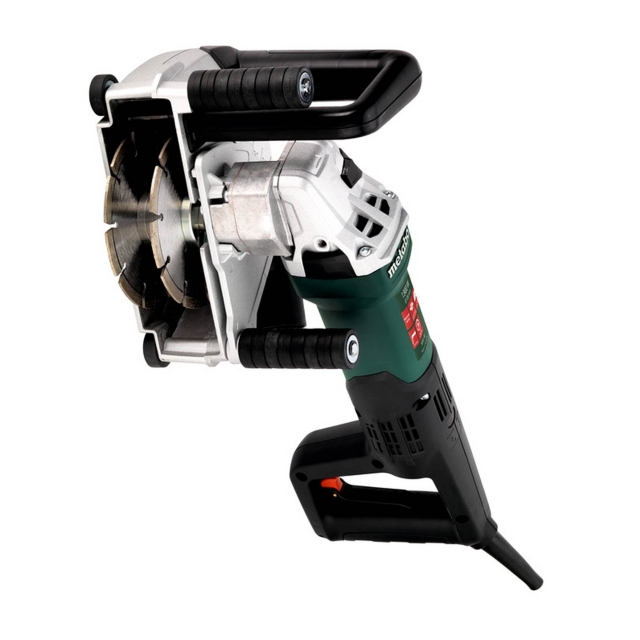

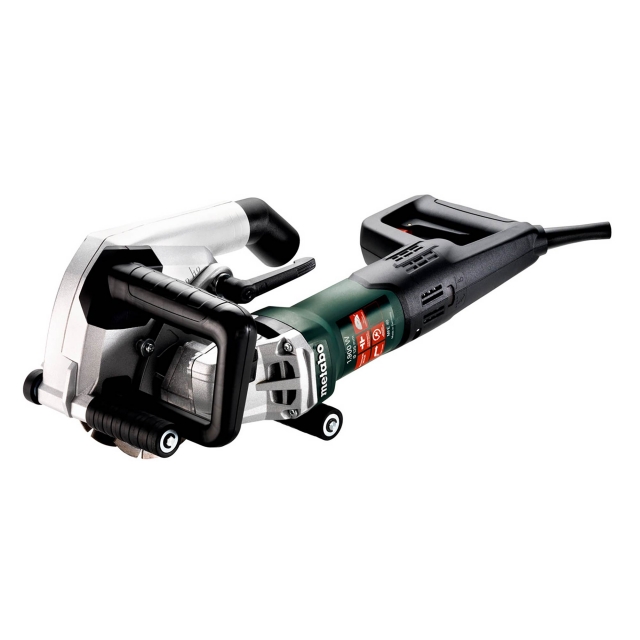

MFE40 Wall Chaser
- Adjustable Cutting Depth: 10 - 40 mm
- Possible Groove Widths: 9 / 15.5 / 22 / 28.5 / 35 mm
- Cutting Disc Diameter: 125 mm
- Rated Input Power: 1700 W
- Output Power: 970 W
- No-Load Speed: 5000 rpm
- Revolutions at Rated Load: 4000 rpm
- Torque: 6 Nm
- Weight (without power cable): 4.6 kg
- Cable Length: 4 m
- Sound Pressure Level: 93 dB(A)
- Sound Power Level (LwA): 104 dB(A)
- Uncertainty of Measurement K: 3 dB(A)

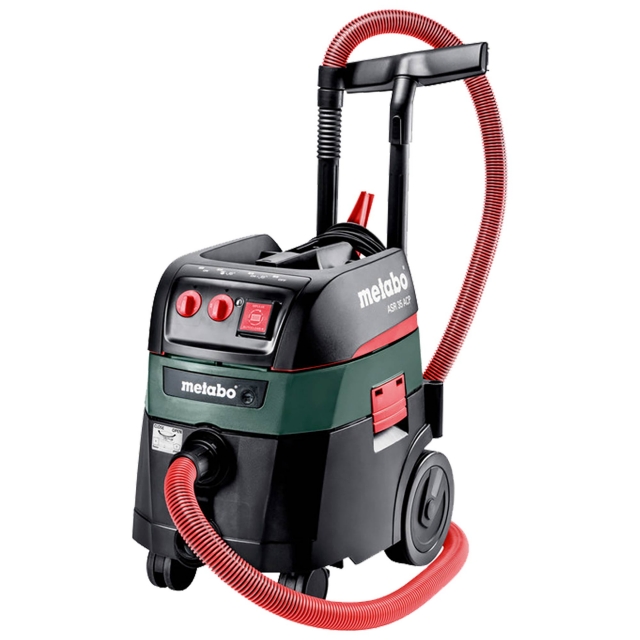

ASR35MACP Dust Extractor
- Air output max.: 4380 l/min
- Vacuum: 248 hPa (mbar)
- Filter Surface: 8600 cm²
- Input Power Max.: 1400 W
- Container Volume: 35 l
- Suction Hose : 35 mm
- Hose Length: 4 m
- Weight: 16 kg
- Cable Length: 8 m
- Sound Pressure Level: 69 dB(A)
METABO MFE40 240v Wall Chaser + ASR35MACP 240v Dust Extractor
UK604040596 Key Features
MFE40 Wall Chaser
- Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm
- Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
- Robust aluminium die-cast hood with rubber rolls and optimal handle position for comfortable guiding of the machine
- Pushing cut for optimal view of the marking line
- Channel width and cutting depth can be set
- Metabo Marathon motor with patented dust protection for long service life
- Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
- Electronic soft start and restart protection for safe working
- LED signal informs about overload or active restart protection
- Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
- Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
- Also suitable for cutting with only one diamond cutting disc
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly
ASR35MACP Dust Extractor
- For extraction from the power tool in continuous mode, both on construction sites and in the workshop
- Especially suited for extracting concrete and rock dust
- Compact vacuum cleaner for liquids and dry solids with commercial registration
- Power socket for a power tool for using the automaticalstart-up/shut-down of the vacuum cleaner
- AutoCleanPlus: saves both costs and time thanks to automatic MPulse filter cleaning during continuous use
- If the optimum suction performance falls below a certain level, the filters are vibrated immediately
- High user protection: certified in accordance with EU standard for M class dusts
- Automatic shut-down when vacuuming liquids once the maximum fill level is reached
- Warning signal on shortfall of the minimum volume flow to protect the user
- Optimum suction power by preselection of the hose diameter
- Automatic trailing mechanism for emptying the suction hose completely
- Antistatic basic equipment prevents static charge when using appropriate accessories
- Sturdy thanks to especially large wheels and castors with wheel stop
- Cable winding mechanism
- Practical accessory case and storage area
UK604040596 What’s Included
- MFE40 Wall Chaser
- ASR35MACP Dust Extractor
- 2x Diamond Cutting Discs
- Spacer Rings
- Flange Nut
- Face Pin Wrench
- Chase Chisel
- Plastic Carrying Case
- Antistatic Suction Hose (35 mm / 4 m)
- Connection Bush 41/48 mm
- Handle Adapter
- 2 Plastic Suction Tubes
- 2 Polyester Filter Cassettes (M class)
- PE Filter Bags
- Crevice Nozzle
- Floor Nozzle (300 mm wide)
- Voltage: 240v
