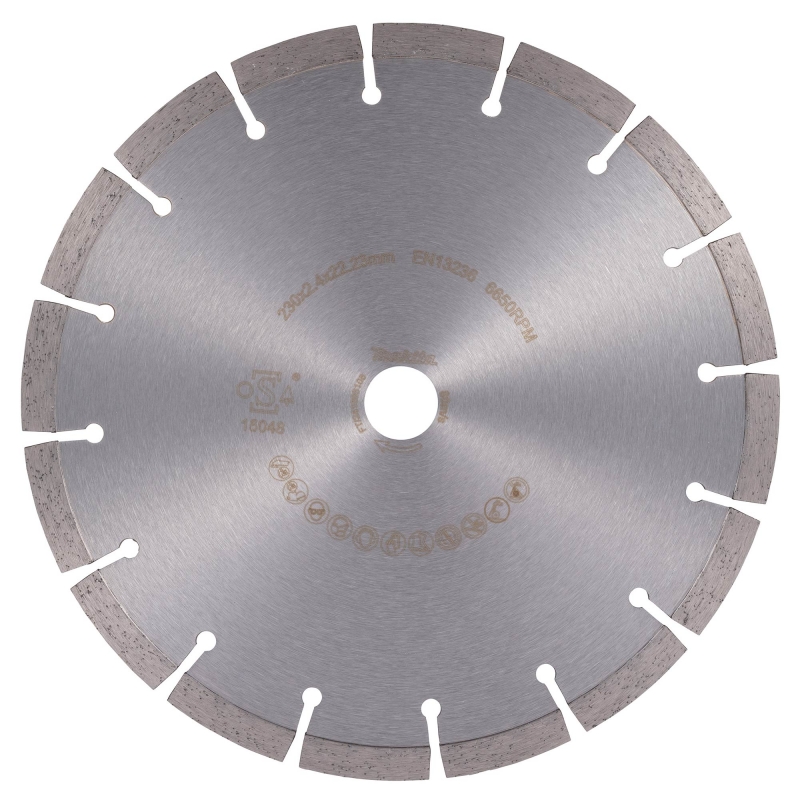

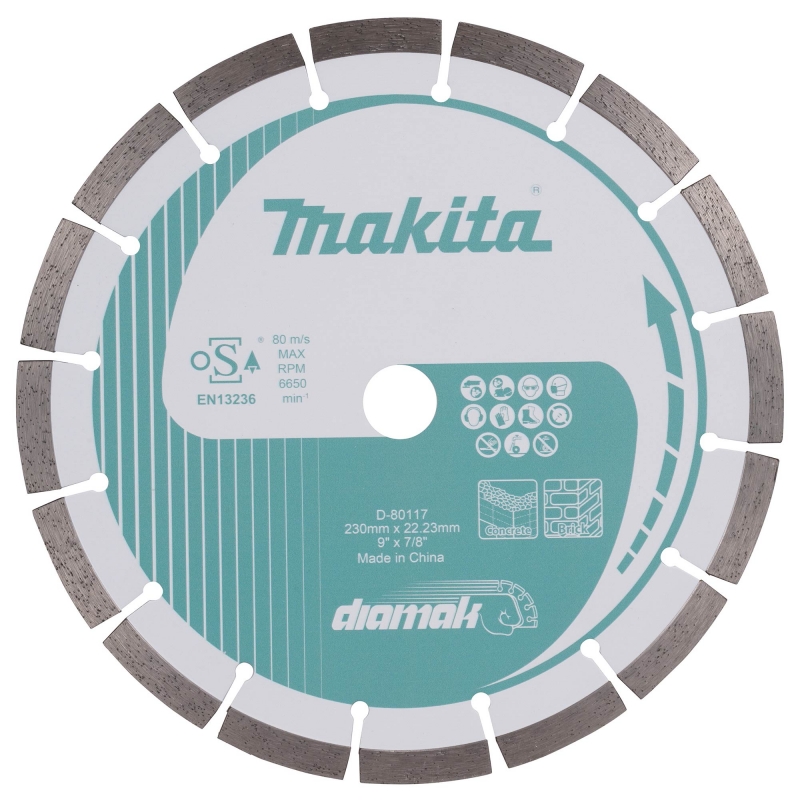

MAKITA D-80117 230mm Segmented Rim Diamond Blade
MAKITA D-80117 230mm Segmented Rim Diamond Blade
In stock
Why Not Add
VAT (£2.50 ex VAT)
VAT (£5.97 ex VAT)
VAT (£1.88 ex VAT)
VAT (£4.61 ex VAT)
What’s Included
- 1 x Makita D-80117 230mm Diamak Segmented Diamond Blade
- Size: 230mm
Product Overview
The Makita D-80117 is a robust 230mm segmented diamond wheel from the comprehensive Diamak range, specifically engineered to handle a wide variety of general masonry tasks. Designed with versatility in mind, this blade offers a balance of speed and endurance when working with materials such as concrete, brick, block, and natural stone. Its construction focuses on durability and consistent performance, making it a reliable choice for users needing to make precise, efficient cuts in tough building materials using compatible angle grinders or disc cutters.
Part No: D-80117(MAKACD-80117)
Features & Benefits
- Extended Service Life: Features a generous 10mm segment height, which significantly helps to prolong the usable life of the blade by providing more diamond cutting depth.
- Efficient Debris Removal: The segmented rim design creates channels that effectively clear dust and slurry from the cutting path, preventing clogging and maintaining optimal cutting speed.
- Heat Dissipation: Gaps between the segments allow for improved air flow and cooling, reducing heat build-up during extended use to protect both the blade core and the diamonds.
- Versatile Material Compatibility: Formulated as a universal blade, it is suitable for cutting a diverse range of construction materials, including concrete slabs, roofing tiles, limestone, and standard brickwork.
- Operational Flexibility: Capable of performing in both wet and dry cutting applications, allowing users to adapt to the specific requirements of the environment or the material being cut.
- Reduced Vibration: The blade body is tensioned to ensure stability during rotation, which helps to minimise vibration for a smoother cutting experience and reduced operator fatigue.
- Universal Fitment: Designed with a standard bore to fit the majority of 230mm (9 inch) angle grinders and petrol disc cutters available on the market.
Technical Specification
- Diameter: 230 mm
- Bore Diameter: 22.23 mm
- Segment Height: 10 mm
- Blade Configuration: Segmented Rim
- Maximum Speed: 6,650 rpm
- Application Type: Dry and Wet Cutting
- Bond Type: Universal Masonry
- Certification Standard: EN13236
FAQs
The first things to check are the diameter and bore of your potential purchase; these tell you the size of the cutting disc itself and of the connection between the disc and the tool. Not all disc diameters fit all cutting tools; make sure that you select the right size for your equipment.
The next thing to consider is the thickness of the blade; this may impact on the cutting work you can carry out. Similarly, the height of the segments that make up the blade can influence the effectiveness of the blade for a particular task.
Another thing to check is whether the manufacturer recommends the blade you’re thinking of buying for the task you intend to use it for. For example, some diamond blades and discs are intended for use with porcelain and tile, whilst others are intended for use on masonry.
