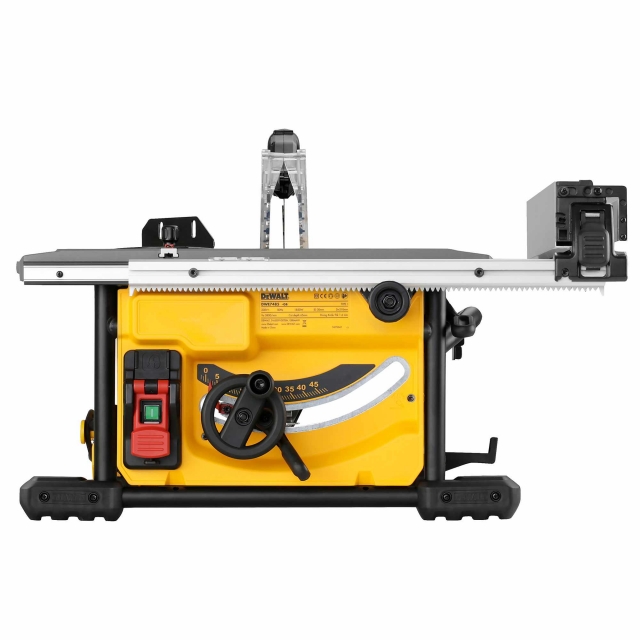

DEWALT DWE7485 110v 1700w Compact Table Saw
DWE7485-LX Product Overview
The DWE7485 has a high power motor that provides extended durability, efficiency and the power to cut all construction timbers. The Dual rack and pinion fence system provides increased accuracy whilst insuring no perpendicular movement occurs to the position of the fence in use. The two position fence offers increased capacity with max 610 rip capacity and allows for cutting of a wide range of materials/sizes. Supplied with 210mm blade.
Part No: DWE7485-LX(DEWPDWE7485L)
DWE7485-LX Technical Specifications
- No Load Speed: 5800 rpm
- Blade Diameter: 210 mm (supplied)
- Blade Bore: 30 mm
- Max. Ripping Capacity [right]: 622 mm
- Max. Ripping Capacity [left]: 318 mm
- Max. Depth of Cut at 90°: 65 mm
- Max. Depth of Cut at 45°: 45 mm
- Table Size: 485 x 485 mm
- Weight: 22 kg
- Depth: 605 mm
- Length: 605 mm
- Height: 330 mm
DEWALT DWE7485 110v 1700w Compact Table Saw
DWE7485-LX Key Features
- Steel roll cage protects saw against jobsite drops and impacts
- Rack and pinion fence system, front and rear fence lock and large, clear scales combine to give an extremely accurate and easy to use saw
- Cast table top design ensures accuracy and precision
- Fence system provides 622 mm of rip capacity in a portable design for cutting large sheet materials to size
- Powerful 1850W motor for high performance in all applications
- 22kg unit weight and optimised footprint make this the most portable saw in its class
DWE7485-LX What’s Included
- Full Length Fence
- Mitre Fence
- Push Stick
- 2x Blade Change Spanners
- TCT Blade
Please Note
This is a 110v machine and must be used in conjunction with a power tool transformer.
