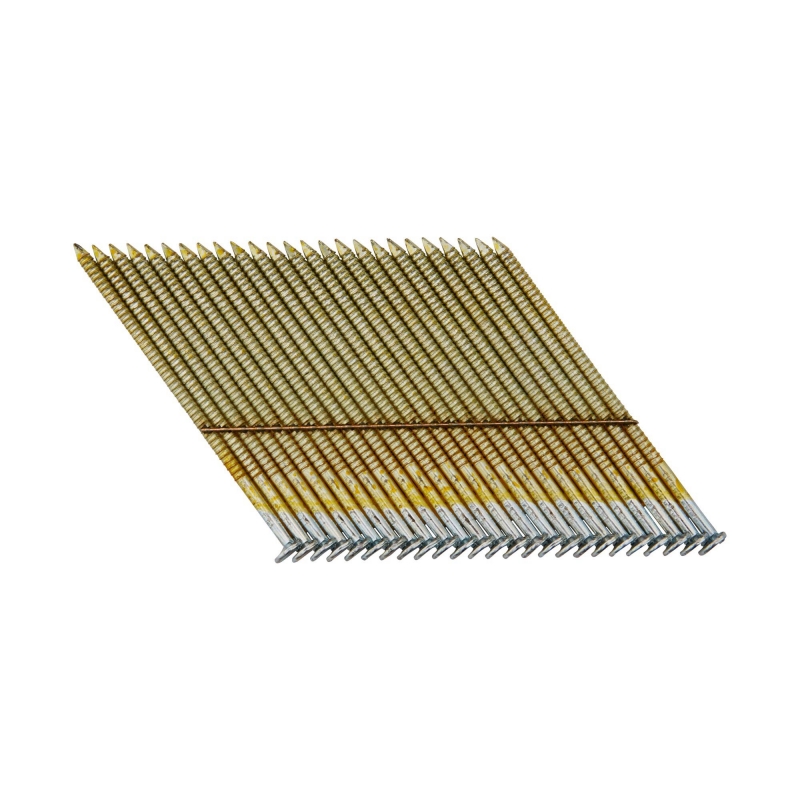

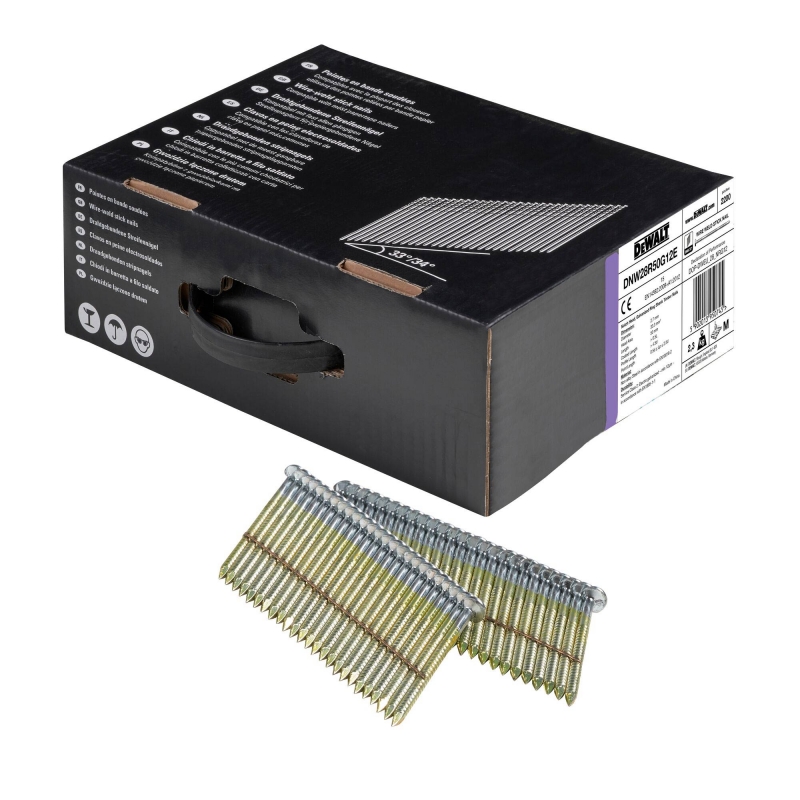

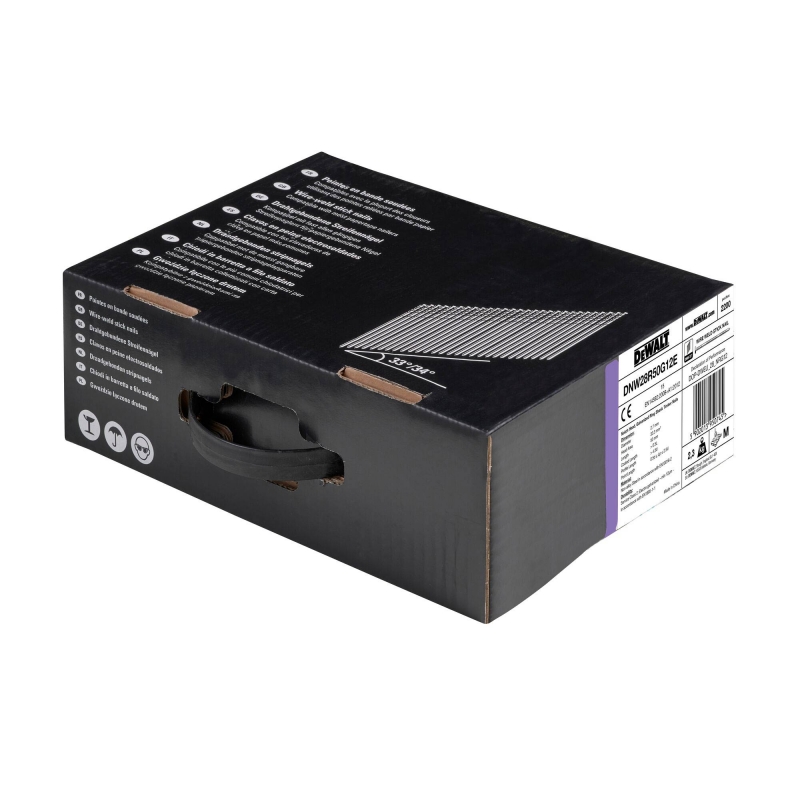

DEWALT DNW28R50G12E W-Wire 280-50 Ring Nails G12 (2200)

Designed for high-volume first-fix joinery, these structural framing nails offer exceptional holding power and reliability for timber framing applications. The nails feature a ring shank profile, which consists of annular ridges running along the shaft; these ridges act similarly to a screw thread, locking into the wood fibres and significantly increasing withdrawal resistance compared to smooth shank alternatives. This makes them particularly suitable for sub-flooring, roof battening, and stud wall construction where structural integrity is paramount. The 'G12' designation refers to the thickness of the galvanised coating, providing a robust layer of zinc that protects the steel core from corrosion. This level of protection makes them suitable for Service Class 2 environments, where the timber may be subject to occasional wetting or high humidity, ensuring the fasteners do not degrade and weaken the structure over time.

Part No: DNW28R50G12E(DEW-DNW28R50G12E)

• Ring shank design maximises grip and prevents nail backing out over time.
• 12-micron galvanised coating protects against rust in damp environments.
• Wire-welded collation ensures smooth feeding through compatible nail guns.
• Clipped head design allows for tighter collation and more nails per load.
• Suitable for use in most standard 33-34 degree paper or wire weld framing nailers.

• Length: 50mm
• Diameter: 2.8mm
• Shank type: ring shank
• Finish: galvanised (12 microns)
• Collation angle: 33-34 degrees
• Collation type: wire weld
• Head type: clipped / d-head
