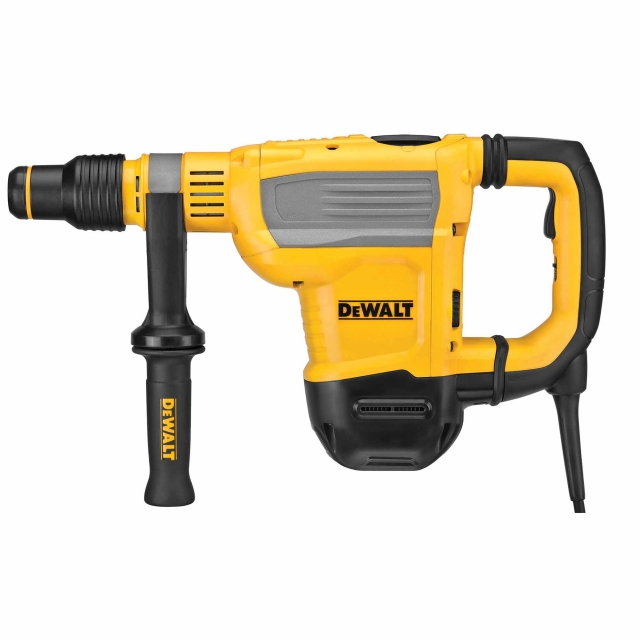

DEWALT D25614K 240v SDS MAX Combi Hammer

The D25614K 45mm SDS Max Rotary Hammer Drill is a high-performance hammer that is powered by durable German-engineered mechanisms. It delivers 10.5 Joules of impact energy for fast drilling, even in the hardest concrete. Constant-speed electronics allow the tool to maintain speed under load, while the patented E-CLUTCH system helps protect the user in bind-up situations by stopping the rotation of the bit.

Part No: D25614K-GB(DEWPD25614K)

Power: 1350w
Impact Energy (EPTA): 10.5 J
No-Load RPM: 190-380
No-Load BPM: 1450-2900
Max Drilling Dia.: 45 mm
Max Diam. Core: 125 mm
Rotation Control: Yes
Wireless Tool Control: Yes
Vibration (Drilling): 8.9 m/s²
Vibration (Chipping): 9 m/s²
Variable Speed Dial: Yes
Weight: 7.8 kg

DEWALT D25614K 240v SDS MAX Combi Hammer

Great news! Buying this product qualifies you for

FREE DELIVERY AVAILABLE*

In stock

WAYS TO PAY:

30 DAYSReturns

Ideal for drilling anchors and fixing holes into concrete, brick and masonry up to 45mm in diameter
Ergonomic, compact and slim line design maximises control and offers easy access to confined spaces
Rotation stop mode with lock-on switch for chiselling
Electronic speed and impact energy control
Perform & Protect: low vibration at 8.8m/s² , minimising user fatigue
Anti-rotation system detects a loss of tool control, and reacts by instantly cutting the power
Wireless Tool Control transmitter which allows the tool to be wirelessly paired with another Wireless Tool Control device, such as a dust extractor, for automatic activation and shut down
Tool Connect ready (tag is NOT included) provides the option for jobsite connectivity for inventory management

Multi-position side handle
Heavy duty carrying case

Voltage: 240v

Our Expert Says…

The midweight design makes the D25614K ideally suited for high-performance, horizontal serial drilling for #5 - #8 rebar, dry coring up to 4 in., chipping in any upper to lower wall, and bushing applications. The SHOCKS Active Vibration Control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready, so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the Tool Connect app.

Delivery & Returns

We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.

FAQs

What should I look for when buying an SDS Max Hammer Drill?

SDS Max Hammers are tools which pack a lot of punch. They’re so strong that many are designed for demolition. Because their primary role is as a hammer drill, the impact rate – measured in either impacts per minute (ipm) or blows per minute (bpm) is definitely an important characteristic to consider. You should also check the maximum drilling capacity, which determines how far the tool will go into the material you’re working with.

What's the difference between SDS and ‘conventional’ Hammer drills?

The main differences are in the kind of drill bits they use and the amount of power they can bring to a task. Slotted Drive System drills use bits with slots or indentations and a pair of sprung ball bearings at the end of the shaft, which ensure a snug fit into the chuck. The fact that SDS drills usually have faster rotations and provide more blows per minute sets them apart from a ‘traditional’ hammer drill and makes them particularly suitable for tougher drilling tasks, such as driving into concrete.

What's the difference between SDS Plus and SDS Max?

One significant difference between these kinds of tools is the size of the shank. SDS Plus bits typically have a 10mm shank, while SDS Max is 18mm. This means that an SDS Max tool can use SDS Plus drill bits with an adaptor, but SDS Max bits aren’t ‘backwards’ compatible. The other main difference is that an SDS Max drill has even more power than an SDS Plus tool and is designed for working on tougher jobs than you might use the SDS Plus machine for.

Which voltage should I choose?

That depends entirely on the power available on site. The ToolStore UK range includes both 110v and 240v options.
