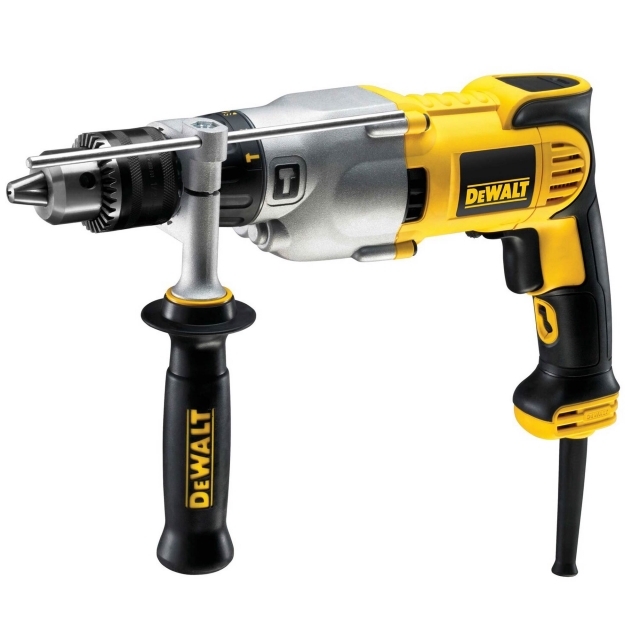

DEWALT D21570K 240v 127mm Dry Diamond Drill
DEWALT D21570K 240v 127mm Dry Diamond Drill
Why Not Add
PREMIER DIAMOND DC11000 3 Jaw Chuck Adaptor Pack
£9.22 inc
VAT (£7.68 ex VAT)
VAT (£7.68 ex VAT)
What’s Included
- Multi Position Side Handle
- Depth Stop
- Heavy Duty Carrying Case
- Voltage: 240v
Product Overview
With its powerful motor and E-Clutch, the 2 speed D21570K dry diamond drill has improved performance in applications with dry core bits up to 127mm in bricks or soft masonry. Featuring a 2-speed gearbox for increased versatility when drilling in wood, metal and concrete with standard drill bits, performance in applications with dry core bits benefits from the powerful motor. With a multi-position side handle a wide range of dry diamond drill applications can be tackled with ease.
Part No: D21570K-GB(DEWPD21570K)
Features & Benefits
- Motor gives improved performance in applications with dry core bits up to 127mmn in bricks or soft masonry
- Electronics provide e-clutch, power-up and overload protection
- Two speed gearbox for increased versatility when drilling in wood, metal and concrete with standard drill bits
- Electro-Mechanical clutch increases user control and protection
- Heavy duty 16mm steel chuck allows quick bit change whilst offering excellent bit retention
- Innovative mode selection collar allows intuitive control for optimal performance
Technical Specification
- Power Input: 1300 w
- Power Output: 680 w
- No Load Speed: 0-1250, 0-3500 rpm
- Max. Drilling Capacity [Concrete]: 22 mm
- Max. Drilling Capacity [Masonry]: 127 mm
- Spindle Thread: 1/2" x 20 UNF
- Collar Diameter: 43 mm
- Length: 380 mm
- Height: 215 mm
- Weight: 3 kg
- Hand/Arm Vibration - Diamond Drill: 13 m/s²
- Hand/Arm Vibration - Drilling: 16 m/s²
- Uncertainty K 2 (Vibration): 4.6 m/s²
- Sound Pressure: 93 dB(A)
- Sound Pressure Uncertainty: 3 dB(A)
- Sound Power: 104 dB(A)
- Sound Power Uncertainty: 3 dB(A)
- Uncertainty K 1 (Vibration): 6.8 m/s²
Reviews
By PaulWomack on 10th July 2020
"Excellent service. Was due to be delivered on The Tuesday but arrived on the Monday. I’ve not had chance to use the product yet so fingers crossed that will be fine when I do come to use it. "

FAQs
What should I look for when buying a Diamond Core Drill?
The first thing to consider is the kind of power your work site uses, as many of the Diamond Core Drills sold by ToolStore UK are offered in both 110v and 240v versions.
Then, a key consideration should be the tool’s Drilling Capacities. These will vary; typically, Diamond Core Drills will be able to penetrate further into masonry than concrete.
It’s also worth checking whether the tool is ‘wet’ or ‘dry’. Drills described as ‘wet’ use water to make outdoor core drilling tasks easier. Water reduces friction, which in turn also reduces noise, vibration, dust and heat.
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
Warranty
All of our products come with a standard 1 year manufacturers warranty, however if you would like to discuss extending this warranty, please contact our customer service team on 03330 043777, or email customerservices@toolstoreuk.co.uk. For further warranty information from this specific manufacturer, visit our warranty page.
