BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories

BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories
BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories
BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories
BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories
BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories
BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories
BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories
BOSCH BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories

Please allow Cookies to view video content

0611332161 Product Overview

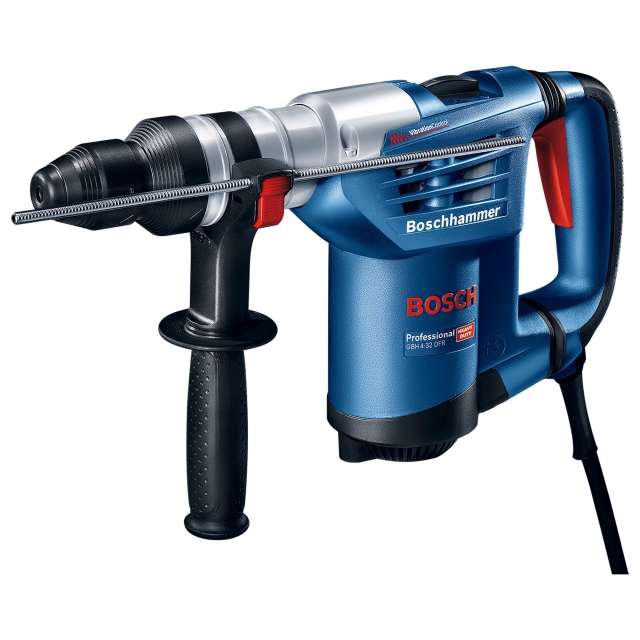

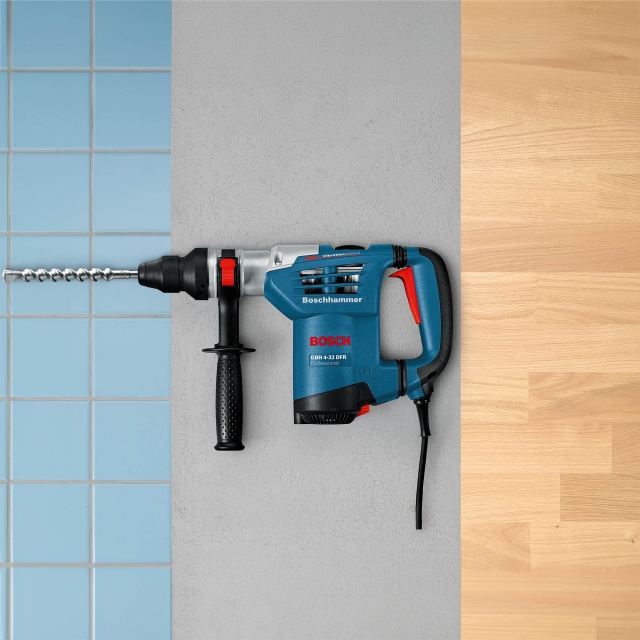

The powerful GBH 4-32 DFR Professional with SDS plus delivers 4.2 J of impact energy with an 900 W motor for a very fast chisel removal rate. The rotary hammer is designed for durability, featuring a very robust metal gearbox housing. Its Vibration Control enables effortless and continuous work in time intensive applications.

Part No: 0611332161(BOSP0611332161)

0611332161 Technical Specifications

  • Rated Power Input: 900 w
  • Max. Impact Energy: 4.2 J
  • Impact Rate at Rated Speed: 0 - 3,600 bpm
  • Rated Speed: 0 - 800 rpm
  • Weight: 4.7 kg
  • Toolholder: SDS Plus
  • Drilling in Concrete: 6 - 32 mm
  • Max. Drilling in Masonry with Core Cutters: 90 mm
  • Max. Drilling in Steel: 13 mm
  • Max. Drilling in Wood: 32 mm
  • Vibration Level (drilling): 12 m/s²
  • Vibration Level (chiselling): 9 m/s²

BOSCH NMD1 (GBH4-32DFR) 110v Multidrill plus accessories

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
low stock Hurry, low stock

0611332161 Key Features

  • Wide range of applications in chiselling and drilling work and when working with a core cutter
  • Drills up to 30% faster (25 mm diameter) than other tools in its class
  • Low vibration levels of only 12 m/s² for less tiring work due to Bosch Vibration Control

0611332161 What’s Included

  • 13mm Quick Change Chuck
  • SDS Plus Quick Change Chuck
  • Auxiliary Handle
  • Depth Stop
  • Carrying Case

    Please Note

    This is a 110v machine and must be used in conjunction with a power tool transformer.

ExpertOur Expert Says…
This Bosch SDS Max Hammer is intended for drilling and chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments. The GBH 4-32 DFR Professional also features a keyless and quick-change chuck, Reverse Mode, Rotation Control Clutch, Variable Speed, and Vario-Lock.
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying an SDS Plus Hammer Drill?

SDS Plus Hammers are tools which pack a lot of punch. They’re designed for driving into masonry, which means that they need to rotate as quickly as possible. On top of that, because their primary role is as a hammer drill, the impact rate – measured in either impacts per minute (ipm) or blows per minute (bpm) is definitely an important characteristic to consider. You should also check the maximum drilling capacity, which determines how far the tool will go into the material you’re working with.

What's the difference between SDS and ‘conventional’ Hammer drills?

The main differences are in the kind of drill bits they use and the amount of power they can bring to a task.  Slotted Drive System drills use bits with slots or indentations and a pair of sprung ball bearings at the end of the shaft, which ensure a snug fit into the chuck. The fact that SDS drills usually have faster rotations and provide more blows per minute sets them apart from a ‘traditional’ hammer drill and makes them particularly suitable for tougher drilling tasks, such as driving into concrete.

What's the difference between SDS Plus and SDS Max?

One significant difference between these kinds of tools is the size of the shank. SDS Plus bits typically have a 10mm shank, while SDS Max is 18mm. This means that an SDS Max tool can use SDS Plus drill bits with an adaptor, but SDS Max bits aren’t ‘backwards’ compatible. The other main difference is that an SDS Max drill has even more power than an SDS Plus tool and is designed for working on tougher jobs than you might use the SDS Plus machine for.

Which voltage should I choose?

That depends entirely on the power available on site. The ToolStore UK range includes both 110v and 240v options.
