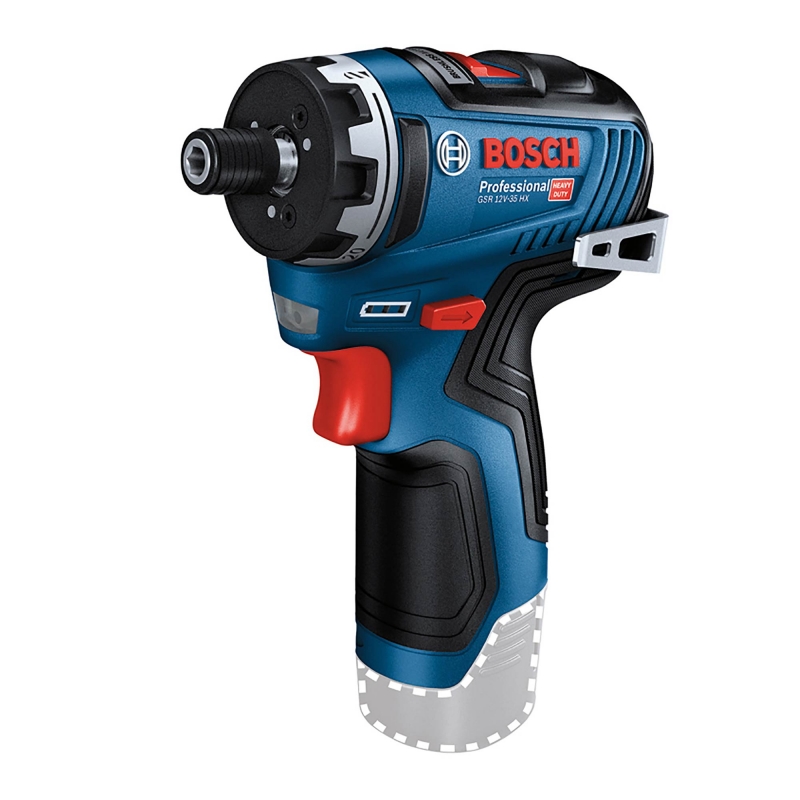

BOSCH GSR12V-35HX 12v Brushless Drill/Driver BODY ONLY

BOSCH BOSCH GSR12V-35HX 12v Brushless Drill/Driver BODY ONLY

06019J9103 Product Overview

The brushless GSR 12V-35 HX is the perfect balance between compactness, productivity and performance. This highly compact cordless screwdriver easily reaches into tight and narrow spaces. With a rotation speed of 1,750 rpm, it is the fastest 2-gear 12v tool of its kind, enabling smooth and efficient working with fast results. Exchanging bits is easy thanks to the convenient lockable 1/4" bit interface.

Part No: 06019J9103(BOSP06019J9103)

06019J9103 Technical Specifications

  • Torque (soft/hard/max.): 20/35/- Nm
  • No-load speed (1st gear / 2nd gear): 0 460 / 0 1,750 rpm
  • Battery type: Lithium-ion
  • Chuck capacity, min./max.: 0.8 / 10 mm
  • Battery voltage: 12v
  • Weight excl. battery: 0.57 kg
  • Torque settings: 20+1
  • Max. screw diameter: 8 mm
  • Max. drilling diameter in wood: 32 mm
  • Max. drilling diameter in steel: 10 mm
  • Total vibration values (Drilling in metal):
    • Vibration emission value ah: 1.5 m/s²
    • Uncertainty K: 0 m/s²
  • Total vibration values (Screwdriving):
    • Vibration emission value ah: 1.5 m/s²
    • Uncertainty K: 0 m/s²
  • Sound pressure level: 73 dB(A)
  • Sound power level: 84 dB(A)
  • Uncertainty K: 3 dB

BOSCH GSR12V-35HX 12v Brushless Drill/Driver BODY ONLY

Great news! Buying this product qualifies you for
FREE DELIVERY AVAILABLE*
unavailable Sorry, we are out of stock

06019J9103 Key Features

  • Highly compact cordless screwdriver in the 12v class enables easy access to tight and narrow spaces
  • With up to 1,750 rpm, the GSR 12V-35 HX is the fastest 2-gear cordless screwdriver in the 12v category
  • Lockable 1/4" bit interface for easy bit exchange

06019J9103 What’s Included

  • This is a Body Only machine and is not supplied with a battery or charger
  • This item may be supplied in unbranded packaging
  • Number of Batteries Supplied: 0
  • Voltage: 12v
  • Type: Brushless
Delivery & Returns
Delivery & Returns
We offer free delivery on orders over £55, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page. Ts&Cs apply.
FAQs
FAQs
What should I look for when buying a Cordless Drill Driver?

One of the key aspects is identifying how you are going to use the tool. It’s easy to buy more tool than you really need. Look at the torque offered by the product – the larger the torque, the more turning force your tool will have. Cordless Drill Drivers with higher torque can deal with larger fasteners or drill bits.
You should also make sure you choose a battery that meets your needs. The voltage determines the amount of power your Drill Driver can draw upon, while the ampere hours (ah) determines how long the tool can be used between charges. The most popular Drill Drivers tend to be 18v machines, because they combine power with portability.

Which is better: brushless or brushed drills?

Brushed motors use carbon brushes to transfer power from the fixed part of the motor to the rotor. This creates a reliable and relatively inexpensive motor, but brushed motors do require regular maintenance, in order to either clean the brushes or replace them as they wear out. A brushless motor, by contrast, uses a magnet mounted on the rotor to generate the power and electrical switching to perform the function carried out by the brushes. The additional complexity of the motor’s working means that brushless motors are usually more expensive than brushed.
However, eliminating the brushes also eliminates internal friction and maintenance, meaning that brushless motors offer both increased power and a longer working life. Brushless motors also generate less heat and noise and so, on balance, are considered superior to brushed motors.

Which voltage should I choose?

That largely depends on the kind of work you’re doing. A 12v Drill Driver is fine for working in restricted spaces and for many DIY jobs, but 18v tools are becoming increasingly affordable and therefore establishing themselves as the industry standard.
