BOSCH GSH5CE 110v SDS Max Demolition Hammer
BOSCH GSH5CE 110v SDS Max Demolition Hammer
FREE DELIVERY AVAILABLE*
Hurry, low stock
What’s Included
- GSH 5 CE Demolition Hammer
- Auxiliary Handle
- Pointed Chisel (400 mm)
- Machine Cloth
- Grease Tube
- Carrying Case
Please Note
This is a 110v machine and must be used in conjunction with a power tool transformer.

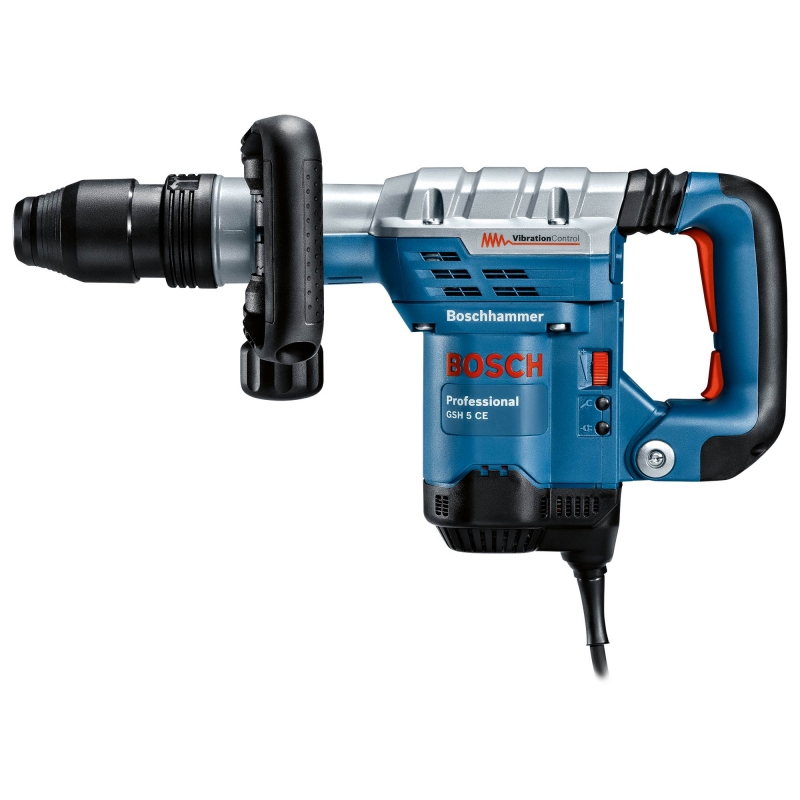

Product Overview
The Bosch GSH 5 CE SDS Max Demolition Hammer (110V) is a powerhouse tool designed for those who demand sustained performance without the fatigue usually associated with heavy demolition work. Engineered with a focus on comfortable handling during time-intensive tasks, this unit combines high-impact force with an intelligent vibration damping system. Its lightweight design belies its capability, allowing users to tackle horizontal chiselling in concrete and stone with precision and ease. Whether removing tiles or breaking through masonry, the GSH 5 CE maintains consistent power under load, ensuring the job is completed efficiently.
Part No: 0611321060(BOSP0611321060)
Features & Benefits
- Vibration Control System: The main handle is decoupled from the motor unit and works in tandem with a built-in vibration damper. This dual-stage system significantly lowers vibration levels to 11 m/s², extending the trigger time available before fatigue sets in.
- High Material Removal: The 1150 W motor efficiently converts energy into 8.3 Joules of impact force, allowing for rapid progress when breaking through masonry or concrete.
- Constant Electronic Technology: This feature maintains a consistent impact rate even when the tool is under heavy load, ensuring performance does not dip during tough tasks.
- Robust Construction: The critical gear and cylinder components are protected by a durable metal housing, which provides superior resistance to heat and mechanical stress compared to standard plastic casings.
- Vario-Lock Positioning: Users can rotate the chisel into 12 different lockable positions, allowing for an optimal working angle regardless of the situation.
- Variable Impact Rate: A setting wheel allows for precise adjustment of the impact rate, enabling the operator to tailor the power output to the specific density of the material being worked on.
- Continuous Operation: An automatic switch lock allows the tool to run without holding the trigger, a crucial addition for long-duration demolition work.
- Cable Protection: A patented ball grommet attaches the power cord to the tool, allowing a high radius of movement and preventing cable breaks at the handle connection.
Technical Specification
- Voltage: 110v
- Tool holder: SDS max
- Impact energy: 8.3 J
- Rated input power: 1,150 W
- Packaging dimensions (width x length x height): 365 x 500 x 140 mm
- Weight: 6.2 kg
- Vibration emission value ah: 1.5 m/s²
- Uncertainty K: 11 m/s²
FAQs
SDS Max Hammers are tools which pack a lot of punch. They’re so strong that many are designed for demolition. Because their primary role is as a hammer drill, the impact rate – measured in either impacts per minute (ipm) or blows per minute (bpm) is definitely an important characteristic to consider. You should also check the maximum drilling capacity, which determines how far the tool will go into the material you’re working with.
The main differences are in the kind of drill bits they use and the amount of power they can bring to a task. Slotted Drive System drills use bits with slots or indentations and a pair of sprung ball bearings at the end of the shaft, which ensure a snug fit into the chuck. The fact that SDS drills usually have faster rotations and provide more blows per minute sets them apart from a ‘traditional’ hammer drill and makes them particularly suitable for tougher drilling tasks, such as driving into concrete.
One significant difference between these kinds of tools is the size of the shank. SDS Plus bits typically have a 10mm shank, while SDS Max is 18mm. This means that an SDS Max tool can use SDS Plus drill bits with an adaptor, but SDS Max bits aren’t ‘backwards’ compatible. The other main difference is that an SDS Max drill has even more power than an SDS Plus tool and is designed for working on tougher jobs than you might use the SDS Plus machine for.
That depends entirely on the power available on site. The ToolStore UK range includes both 110v and 240v options.
