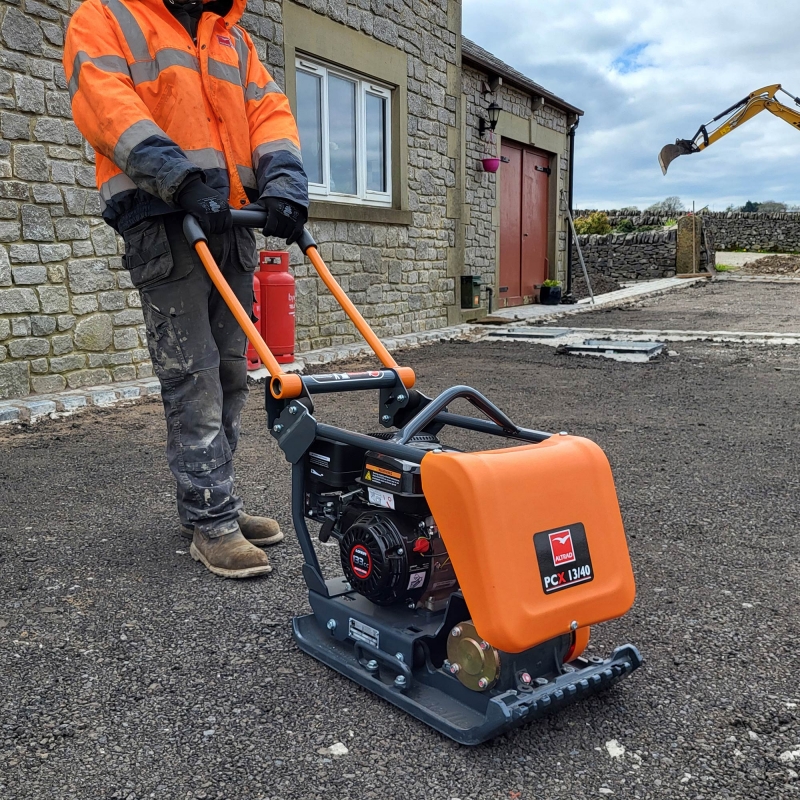

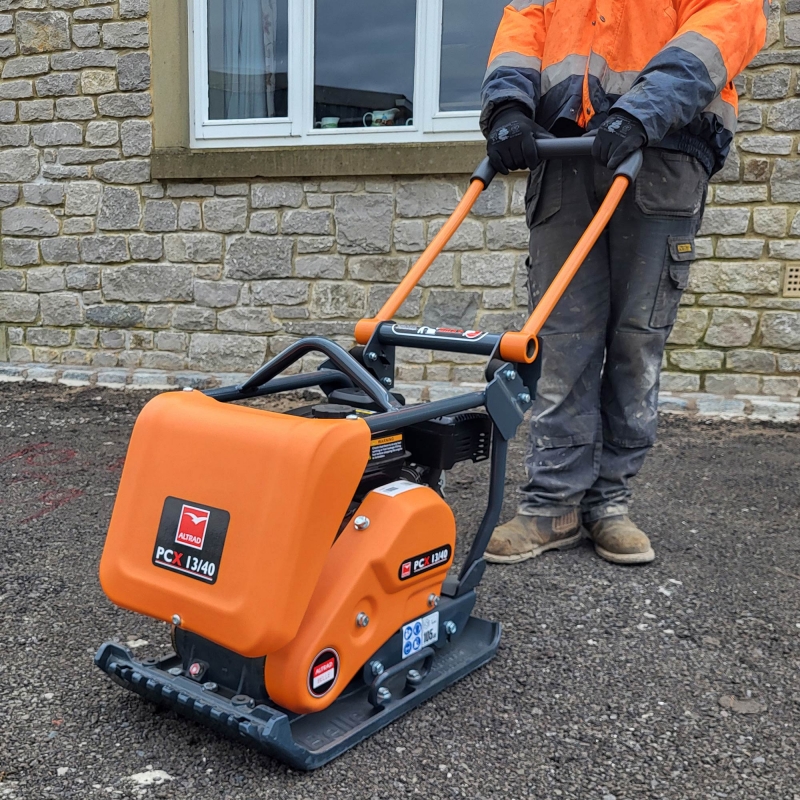

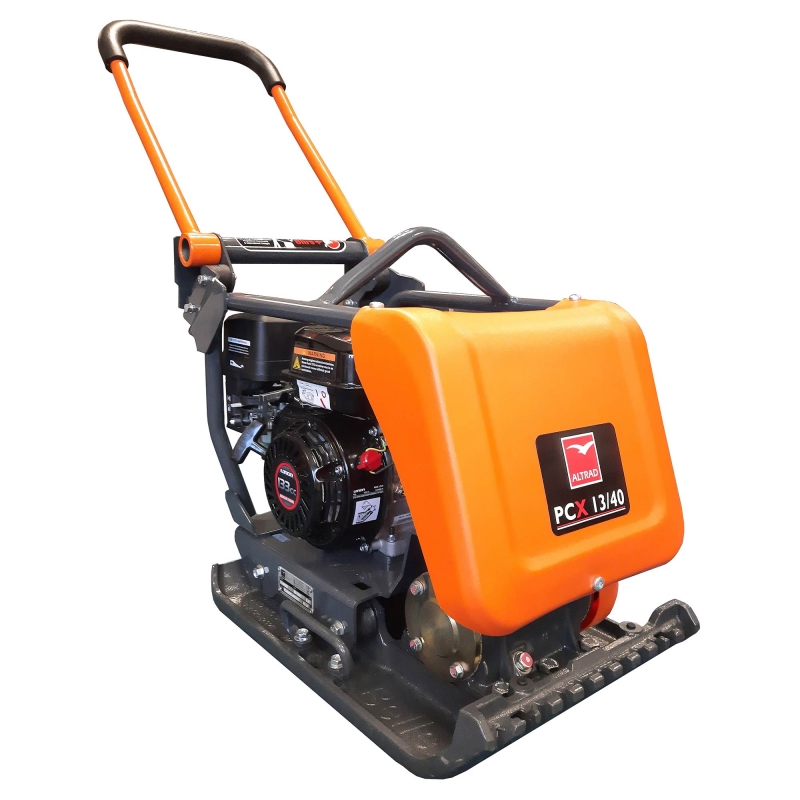

BELLE PCX13/40 Petrol Loncin Plate Compactor 16"
FC4060E Product Overview
The Belle PCX13/40 is a heavyweight, professional compaction plate with low Hand Arm Vibration and very high performance compaction. Designed with a shorter baseplate to offer improved compaction, manoeuvrability and finish.
Part No: FC4060E(BELFC4060E)
FC4060E Technical Specifications
- Engine Model: Loncin H135 Petrol
- Engine Power: 4.9 / 3.6 HP/KW
- Plate Size: 400 x 606 mm
- Static Pressure: 520 km/m²
- Centrifugal Force: 13 kN
- Travel Speed: 20 m/min
- Vibration: 3.2 m/sec²
- Weight: 83.5 Kg
BELLE PCX13/40 Petrol Loncin Plate Compactor 16"
Available
WAYS TO PAY:
Please Note
FC4060E Key Features
- Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.
- Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment.
- Lifting points and front lift cage offer easier loading and unloading for operator convenience.
- Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom.
- The spraybar is fully protected from damage, easily positioned with integral paving pad clamp points.
- Life lubricated vibration bearings.
